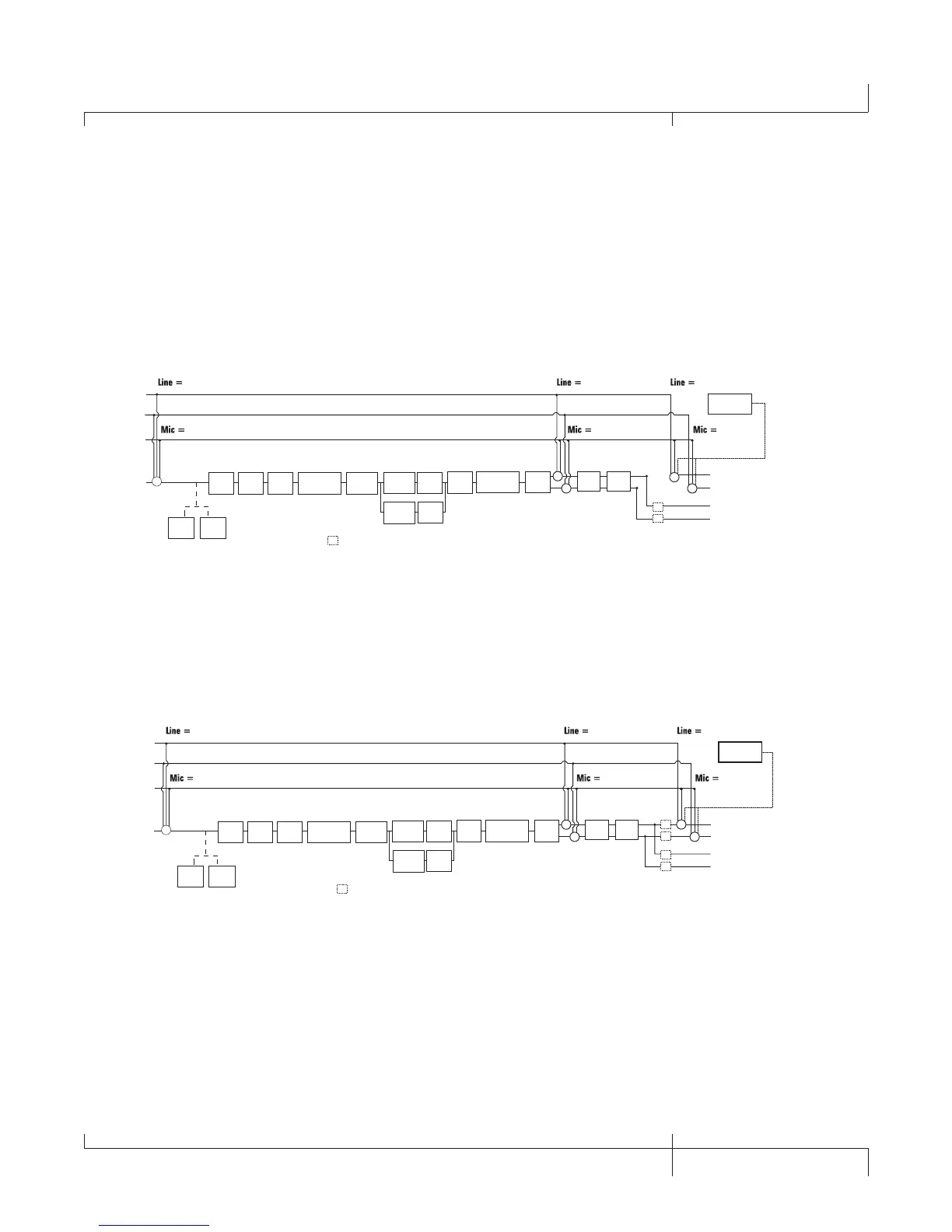

Split 1 ( split1 )
Stereo guitar processing and any inputs routed through the GNX3000’s guitar
processing are routed to the 1/4" OUTPUTS. Audio playback from the computer,
mic
dry, line dry and drums is routed to the XLR OUTPUTS. Speaker Compensation can
be turned on and off independently for either the 1/4” or XLR OUTPUTS using the
Speaker Compensation menus (see page 24).
Mic Input
Guitar Input
Line Left
Line Right
mic rvb mic dry
line rvb line dry
SC
mic fx
line fx
= Speaker Compensation Module
SC
SC
DRUMS &
USB PLAYBACK
Delay
Reverb
+
+
+
+
XLR Left Output
XLR Right Output
1/4" Left Output
1/4" Right Output
Pickup
Sim
Wah
Comp
Stompbox
CH 1
Cabinet
Comp
Detector
Gate
Detector
Whammy/IPS
(except
Talker)
CH 1 Amp
Modeling
/
Tone
CH 1
Cabinet
CH 1 Amp
Modeling
/
Tone
CH 2
Cabinet
CH 2 Amp
Modeling
/
Tone
Gate
Whammy/IPS
(Talker)
Chorus/
Mod
+
Split 2 ( split2 )
SPLIT2 is the same as SPLIT1 but the guitar processing is also routed out the XLR
OUTPUTS
.
Mic Input
Guitar Input
Line Left
Line Right
mic rvb mic dry
line rvb line dry
mic fx
line fx
DRUMS &
USB PLAYBACK
Delay
Reverb
+
+
+
XLR Left Output
XLR Right Output
1/4" Left Output
1/4" Right Output
SC
SC
SC
= Speaker Compensation Module
Pickup
Sim
Wah
Comp
Stompbox
CH 1
Cabinet
Comp
Detector
Gate
Detector
Whammy/IPS
(except
Talker)
CH 1 Amp
Modeling/
Tone
CH 1
Cabinet
CH 1 Amp
Modeling/
Tone
CH 2
Cabinet
CH 2 Amp
Modeling/
Tone
Gate
Whammy/IPS
(Talker)
Chorus/
Mod
+
SC
SC
+
