Dranetz hdpq xplorer User Manual

4-36
Timed Intervals, continued
Timed intervals
menu
The intervals for timed readings are user programmable.
Continued on next page
Action... Result...

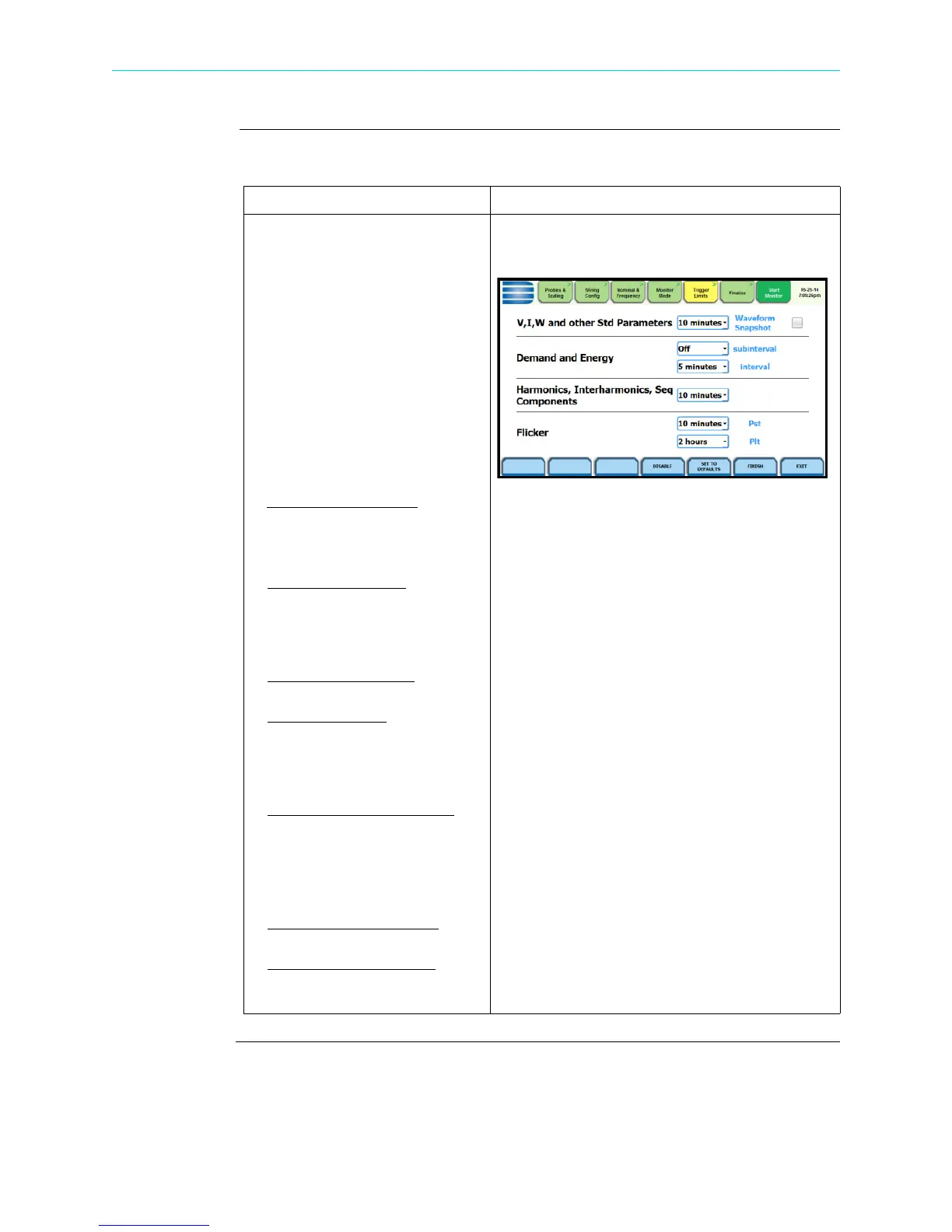

STEP 1: From the Trigger Limits
Setup Options screen, press
Timed Intervals. The Timed
Intervals menu will be displayed.
Press the parameter that you want
to change. Each time interval
must be pressed repeatedly to
display the available selection
values.
NOTE: Values in bold type below
are the default settings.
• Selections for Power Values:
Power Values Interval
: 1 SEC,
30 SEC, 1 MIN, 5 MINS,
10 MINS, 15 MINS, 30 MINS,
1 HR, OFF
Waveform Snapshot
: Check/
Uncheck box to enable/disable
• Selections for Demand and
Energy:
Demand Sub-Interval
(in
MINUTES): 1, 5, 15, 30, OFF
Demand Interval
(in
MINUTES): 1, 5, 15, 30, 60,
OFF
• Selections for Harmonics:
Harmonics Journal Interval
: 3
SEC, 30 SEC, 1 MIN, 5 MINS,
10 MINS, 30 MINS, 1 HR,
OFF
• Selections for Flicker:
Pst (Short Term) Interval
(in
MINUTES): 1, 5, 10, OFF
Plt (Long Term) Interval
: 12
MINS, 1 HR, 2 HR, OFF
HDPQ-422
