6-48
Min/Max Table for Power Frequency and RMS Voltage
Min/Max Table for Power Frequency and RMS Voltage
Min/Max table
The Min/Max table displays the minimum and maximum values for Power Frequency
and RMS Voltage along with the time and date of occurrence. Maximum phase values
of Rapid Voltage Change, Flicker, Supply Voltage Unbalance, and Harmonic are also
displayed along with time and date of occurrence.

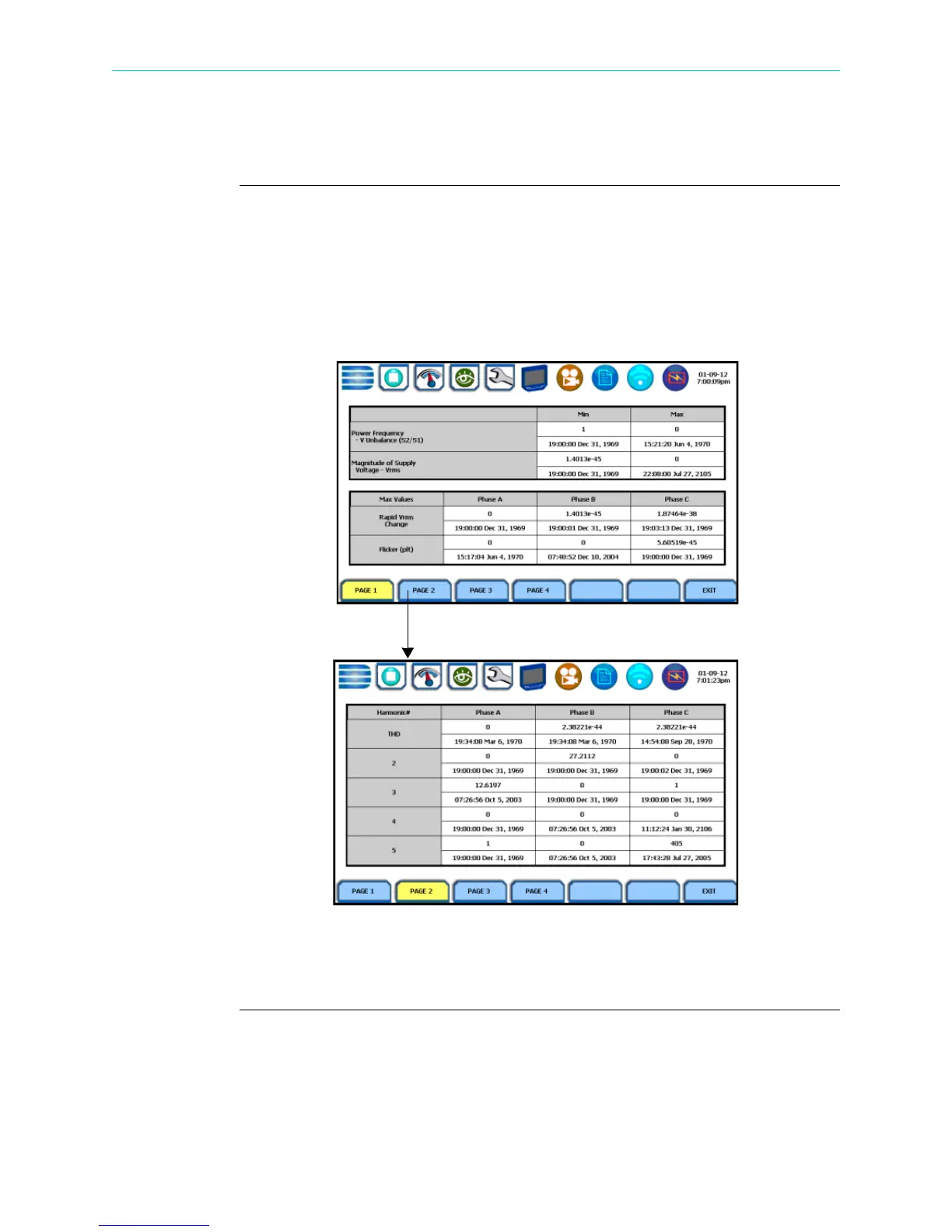

From the Voltage Compliance Report screen, press Min/Max. Page 1 of the Min/Max
table appears as shown below.
Press the next pages to display the rest of the table values and view Harmonic
values up to order no. 25.
HDPQ-656
HDPQ-657
