6-39
CH 6/ View Event Data & Reports

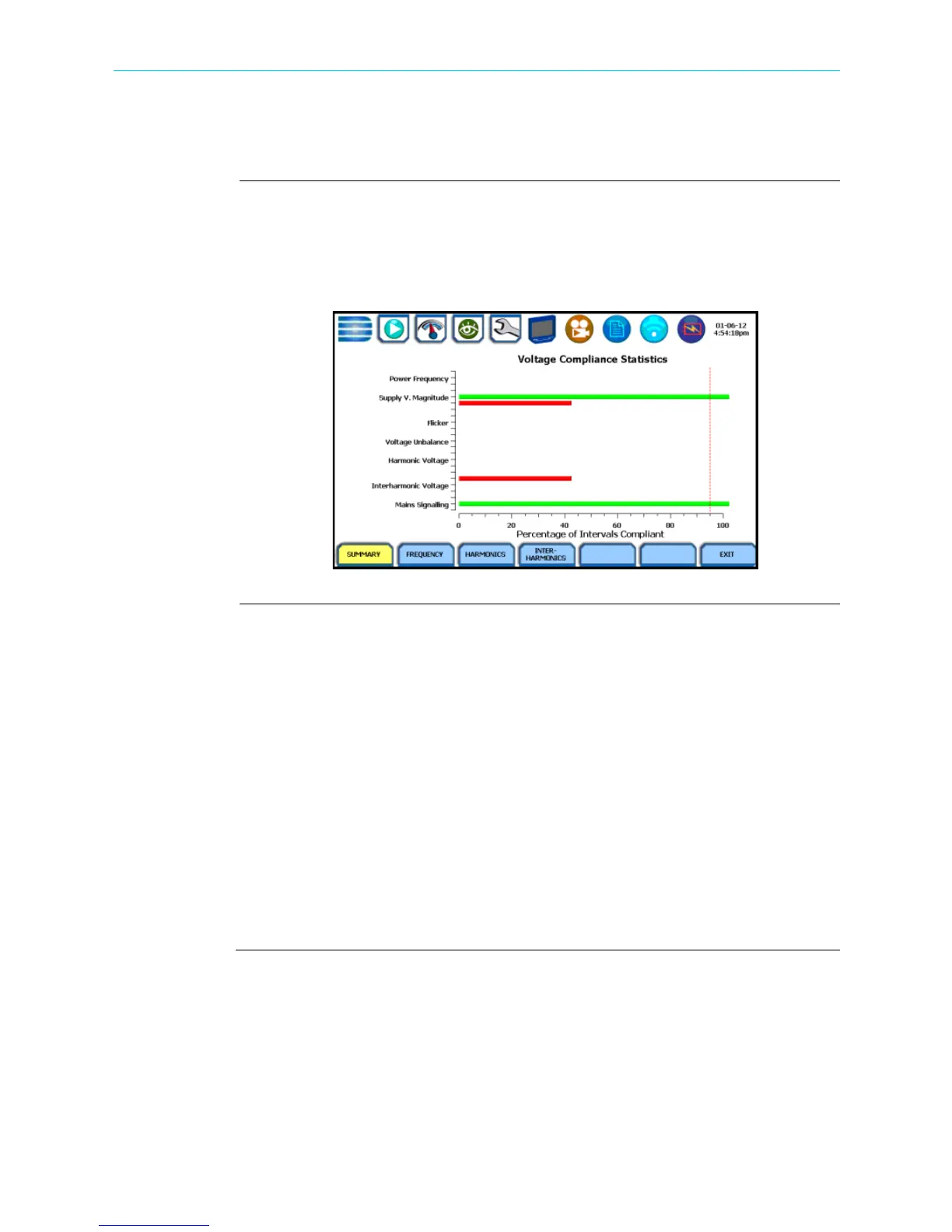

Compliance Summary
Summary bar
chart
Voltage Compliance Summary appears in the form of a statistical bar chart featuring the
seven parameters required for determining QOS compliance. The color of the bar
indicates compliance status. A green bar indicates that the parameter is within
compliance. A red bar indicates that the parameter does not comply with the QOS
limits. Each measurement parameter is discussed in the next pages.
Voltage
compliance
measurement
parameters
The voltage compliance statistical bar chart displays the seven parameters that are
required for determining QOS compliance. The bar chart indicates the percentage of
the intervals passing the specified compliance criteria. The color of the bar indicates
compliance status. A green bar indicates that the parameter is within compliance. A red
bar indicates that the parameter does not comply with EN50160 Standard.
The next pages provide brief descriptions of each measurement parameter. Particularly
for three parameters, you can view component graphs using the soft keys provided -
Frequency for Power Frequency graph, Harmonics for Harmonic graph and
Interharmonics for Interharmonic graph.
For Voltage (QOS) compliance limit values of voltage parameters, refer to the table of
Compliance Limits on page 6-43.
Press Exit to return to the Compliance History screen.
HDPQ-652
