6-28
Event Waveform
Event Waveform
Event waveform
display
HDPQ Xplorer allows you to view events in graphic waveform display. Use the Event
Waveform icon available on the taskbar of select event screens (Event List or Event
Plot - rms) to plot events in waveform display.
NOTE: The instrument will only display waveform data for channels that are enabled
to record waveforms. For channels that do not have associated waveform data, the
screen will maintain the format, but will leave the plot blank.
Horizontal axis
Auto-scaled to display all waveforms in file until range is narrowed by zoom in
.
Vertical axis
Auto-scaled to the minimum and maximum value within time range.
View event
waveform
You have the option to view events in waveform cycle display using the designated
icon available on the taskbar of select event screens.
Action... Result...

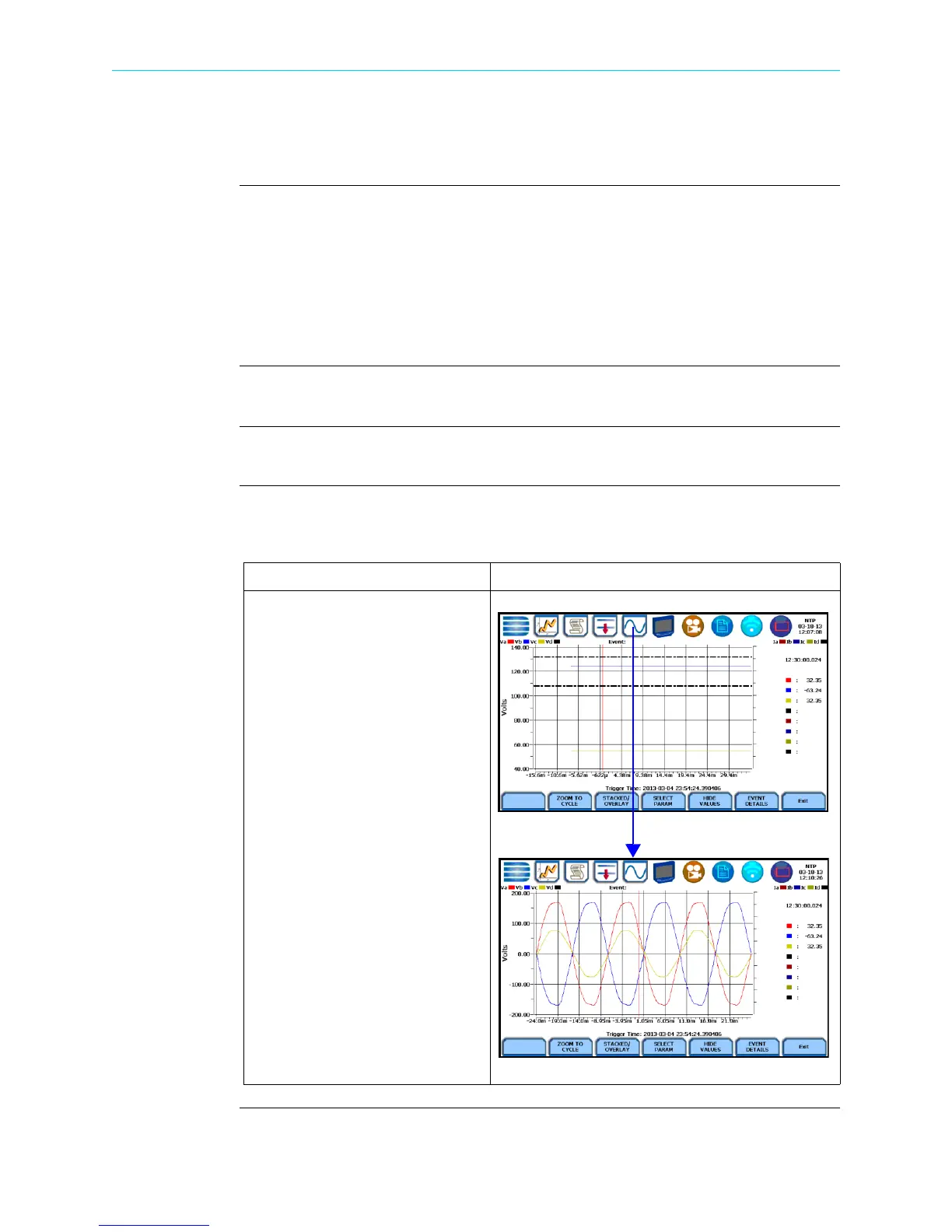

STEP 1: Event Waveform icon is
available on the taskbar of select
event data screens.
Example: You can access Event
Waveform from the Event List or
Event Plot - RMS screens.
NOTE 1: The horizontal dotted
lines indicate the upper and lower
limits that trigger events. The red
vertical line indicates the trigger
timestamp or start of event.
NOTE 2: The solid black lines in
waveform display indicate high
frequency sampling data. HDPQ
Xplorer can detect and capture
transients as small as 1 microsec
in duration.
Use the function keys at the
bottom of the screen to set up
waveform display, as discussed
below.
HDPQ-635
HDPQ-641
