CH 6/ View Event Data & Reports
Event plot -rms
function keys
(continued)

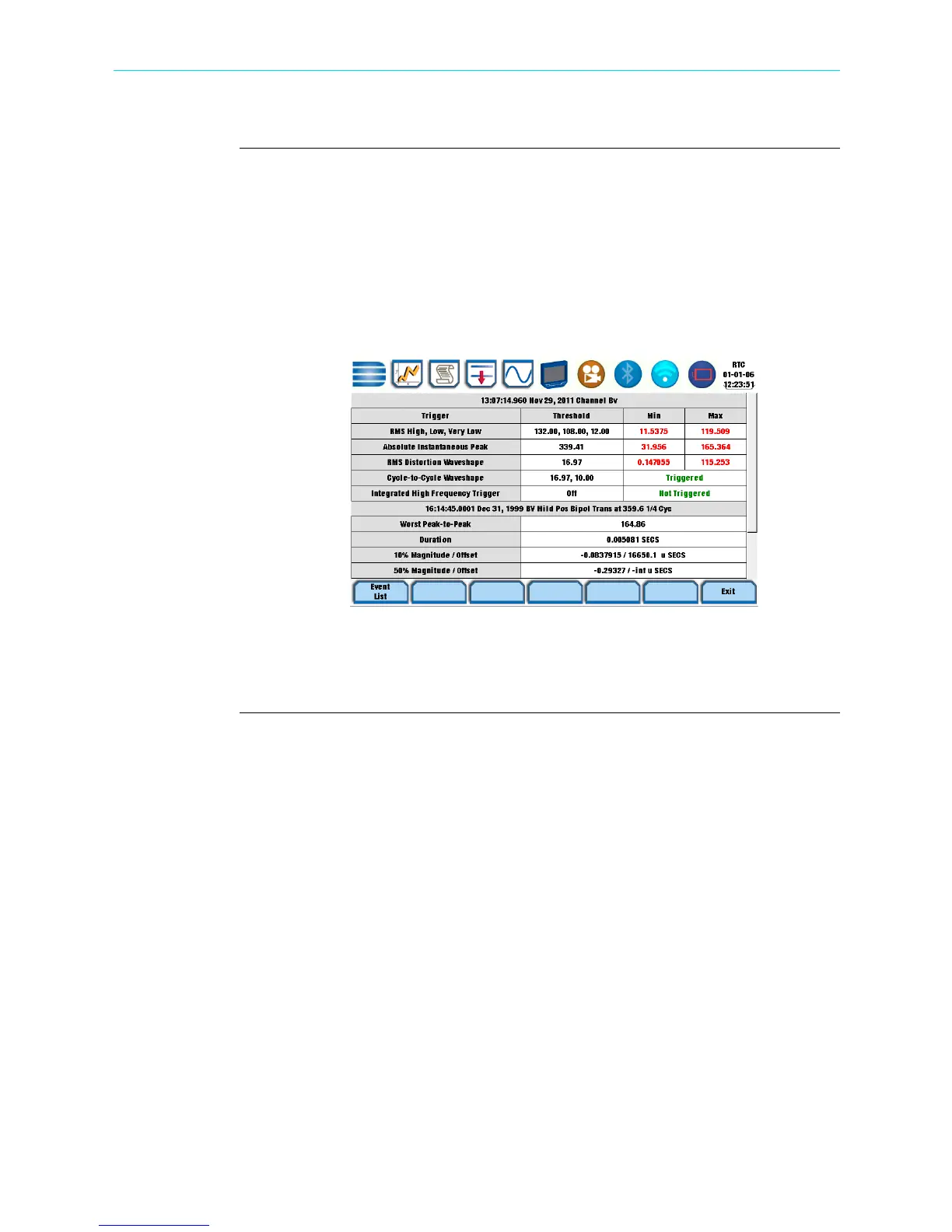

Event Details - an event detail screen is generated for each event. Event details show
the triggered parameters and event data saved by the instrument, along with
characterization information about the event.
Each event entry is identified by the time and date when the event was captured (shown
on header row), the trigger parameters, and characterization details pertaining to the
selected event entry. The threshold values captured are color coded. Triggered
parameters that are within limits are shown in green. Triggered parameters that are out
of limits, exceeding Low or High threshold limits, are shown in red.
Press the Event List key if you want to bring up the Event List screen.
Press Exit to close the Event Details screen and return to the previous screen.
