1-9
CH 1/ Getting Started

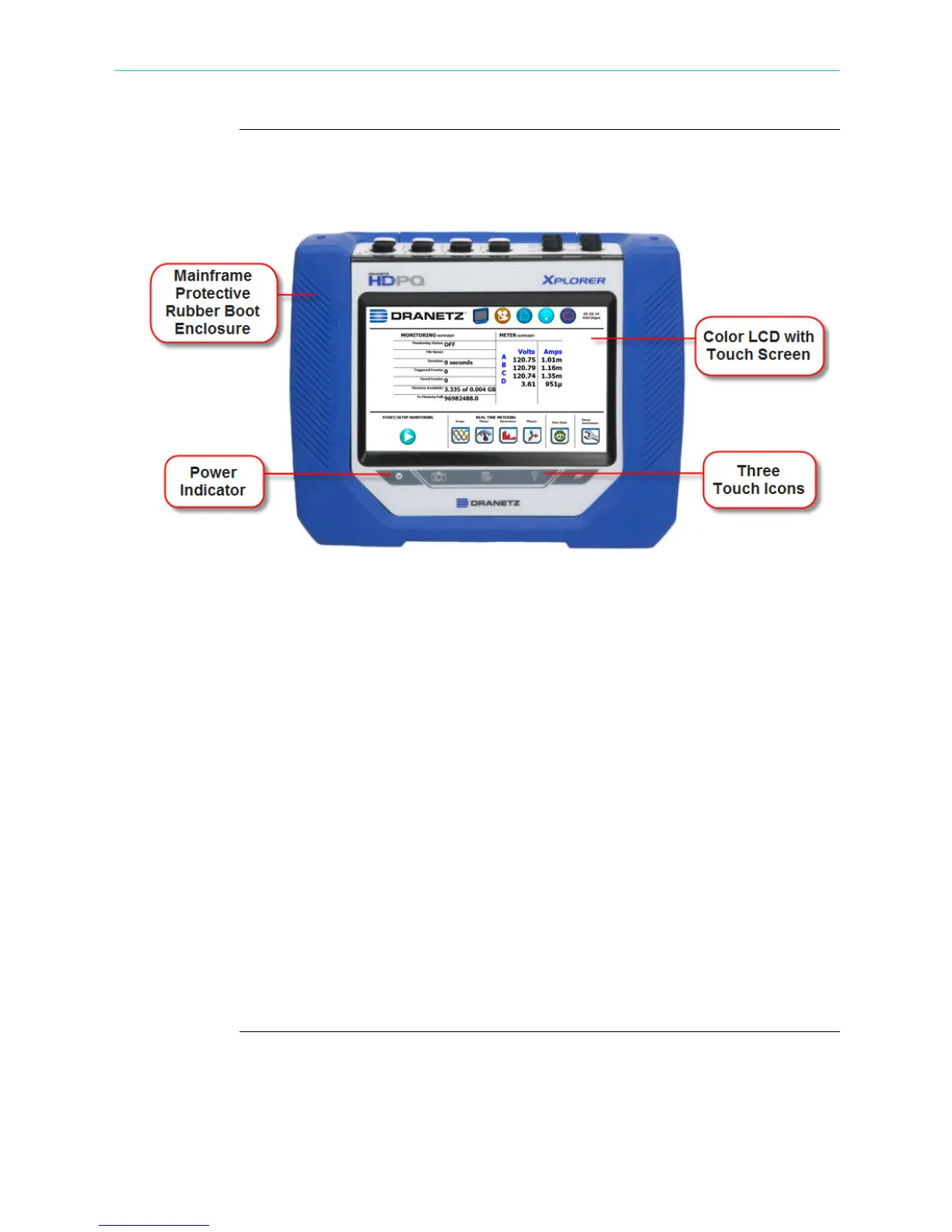

Front view
The front view shows the color touch screen LCD, the LED indicators, and touch icons
marked accordingly allowing you to perform functions specific to the screen display.
See below for description of the HDPQ Xplorer front display.
NOTE 1: Liquid Crystal Display (LCD). Provides 3.6 x 6.0 inches display consisting
of a WVGA touch screen of text and graphic information. The color LCD is equipped
with touch screen technology, operable using the finger and/or stylus. Touch screen
display permits menu selection and alphanumeric data entry.
Below are some basic care instructions for the LCD monitor:
Use and store the unit within the specified temperature and humidity range. The LCD
screen may be adversely affected by exposure to high temperature or humidity.
Condensation or moisture produced by sudden temperature changes may also
damage the LCD screen. Clean any moisture from surface immediately.
Be careful when cleaning or removing stains on the LCD surface. Gently wipe the
surface with a soft cloth or cotton pad. Isopropyl alcohol may be used, but make sure
that all solvent residue is removed.
Do not apply excessive force to the LCD surface. The LCD screen contains sensitive
electronic components that may be damaged due to strong impact.
NOTE 2: Power Indicator. LED will light steadily when the unit is operating normally.
NOTE 3: Touch Icons. The three touch icons are used to perform various functions i.e.
take a Snapshot of the active screen, capture Mini-Reports and access Help screens.
See section HDPQ Xplorer Touch Icons for detailed desccriptions. These icons cannot
be activated with gloves on as they employ capacitive or touch technology.
