Dranetz hdpq xplorer User Manual

1-6
HDPQ Xplorer Controls, Indicators, and Connectors, continued

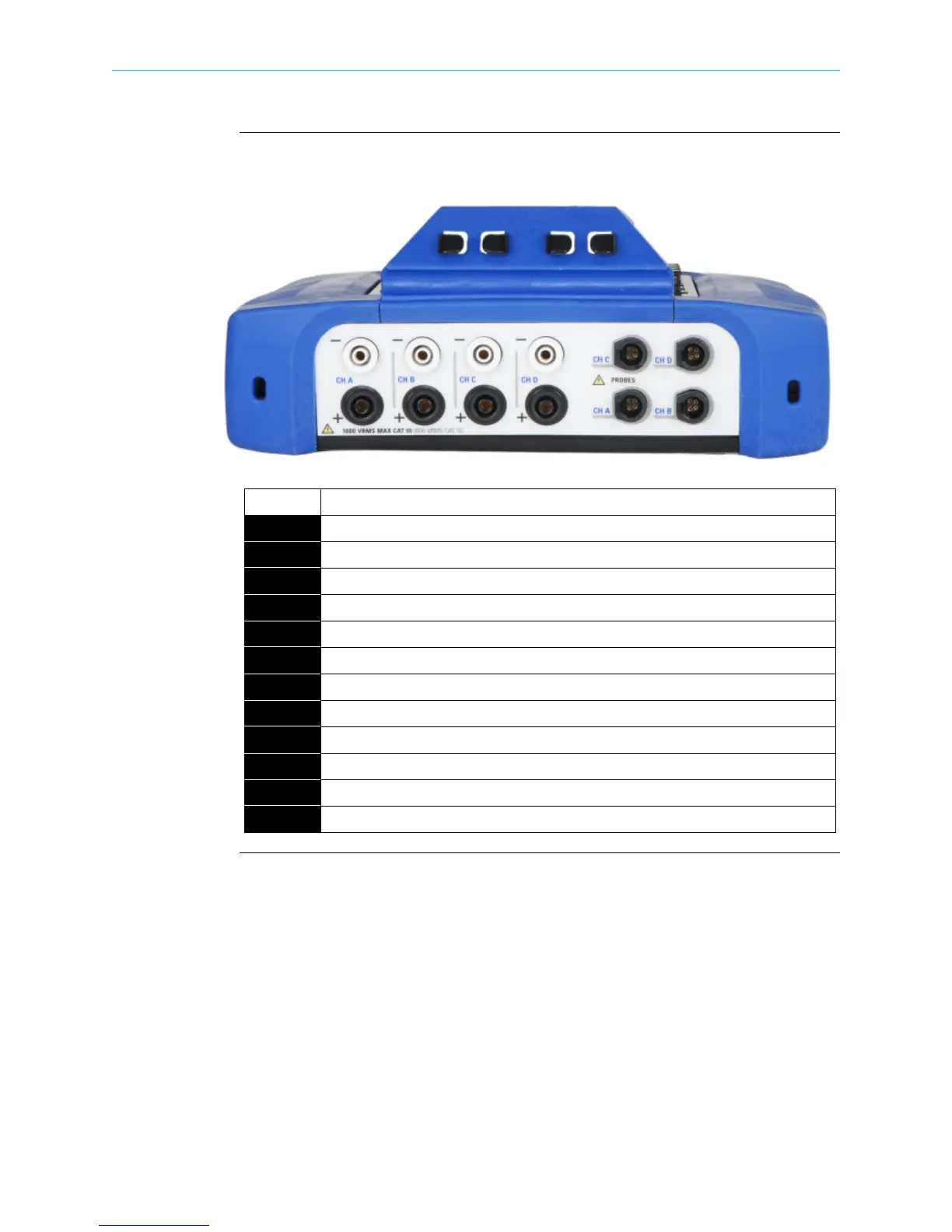

Top view
The top (circuit connection) view features the input voltage and current connectors. See
below for description of the top connectors.
Parts table
Part Function
1 CH A, + Differential Voltage Input Connector; color black.
2 CH A, - Differential Voltage Input Connector; color white.
3 CH B, + Differential Voltage Input Connector; color black.
4 CH B, - Differential Voltage Input Connector; color white.
5 CH C, + Differential Voltage Input Connector; color black.
6 CH C, - Differential Voltage Input Connector; color white.
7 CH D, + Differential Voltage Input Connector; color black.
8 CH D, - Differential Voltage Input Connector; color white.
9 CH A, PROBE, Current Input Connector.
10 CH B, PROBE, Current Input Connector.
11 CH C, PROBE, Current Input Connector.
12 CH D, PROBE, Current Input Connector.
