1-10
HDPQ Xplorer Controls, Indicators, and Connectors, continued

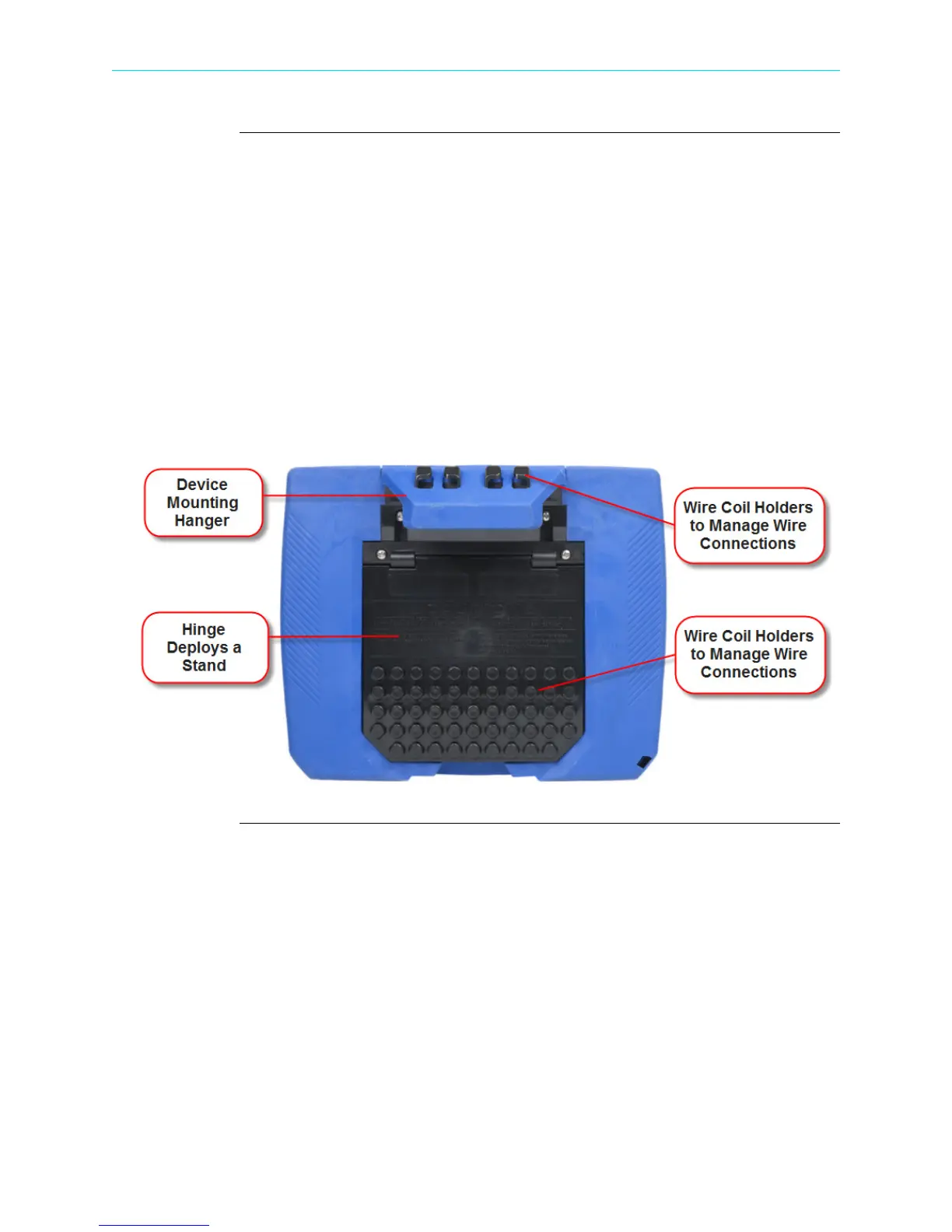

Rear view
The rear view shows the mounting hanger bracket on top if you want to hang the
instrument on a panel. This hanger bracket has built-in wire coil holders used to put
your measurement wirings in place. Note if you do not want to hang the instrument on
a panel, the hanger bracket is replaceable with the Dranetz-supplied accessory Keyhole
Mounting Kit (P/N 118313-G1). This kit allows you to mount the instrument on the
wall or install it in the optional weather resistance enclosure. See next section for
details.
The rear view also features a hinge which deploys a stand. The stand also has wire coil
holders to help manage your measurement wiring connections. The view below shows
the hinge closed.
NOTE: Battery compartment is located under the hinge (bottom area). See Appendix C
- Battery Specifications and Replacement Procedure.
