CH 6/ View Event Data & Reports
Voltage Compliance Report
What is
EN50160?
The Voltage (QOS) functionality is equipped with monitoring and setup protocols to
meet the measurements required for EN50160 monitoring. EN50160 is a European
standard that stipulates the voltage characteristics that can be expected in public
distribution networks. EN50160 specifies that various parameters must be within a
specified percentage for 95% of the standard one week monitoring period.
EN50160
monitoring
mode
EN50160 will be able to display data when the instrument has been configured to
monitor EN50160 Power Quality. Refer to Chapter 4 Setup Monitoring - Section C
Wizard Setup - Monitor Mode for the procedure on how to turn EN50160 Power
Quality monitoring on.
View voltage
compliance
report
Statistical data is calculated based on the parameters required by EN50160 for
determining Voltage (QOS) compliance. HDPQ Xplorer displays the parameters in the
form of a compliance statistical bar chart.
Action... Result...

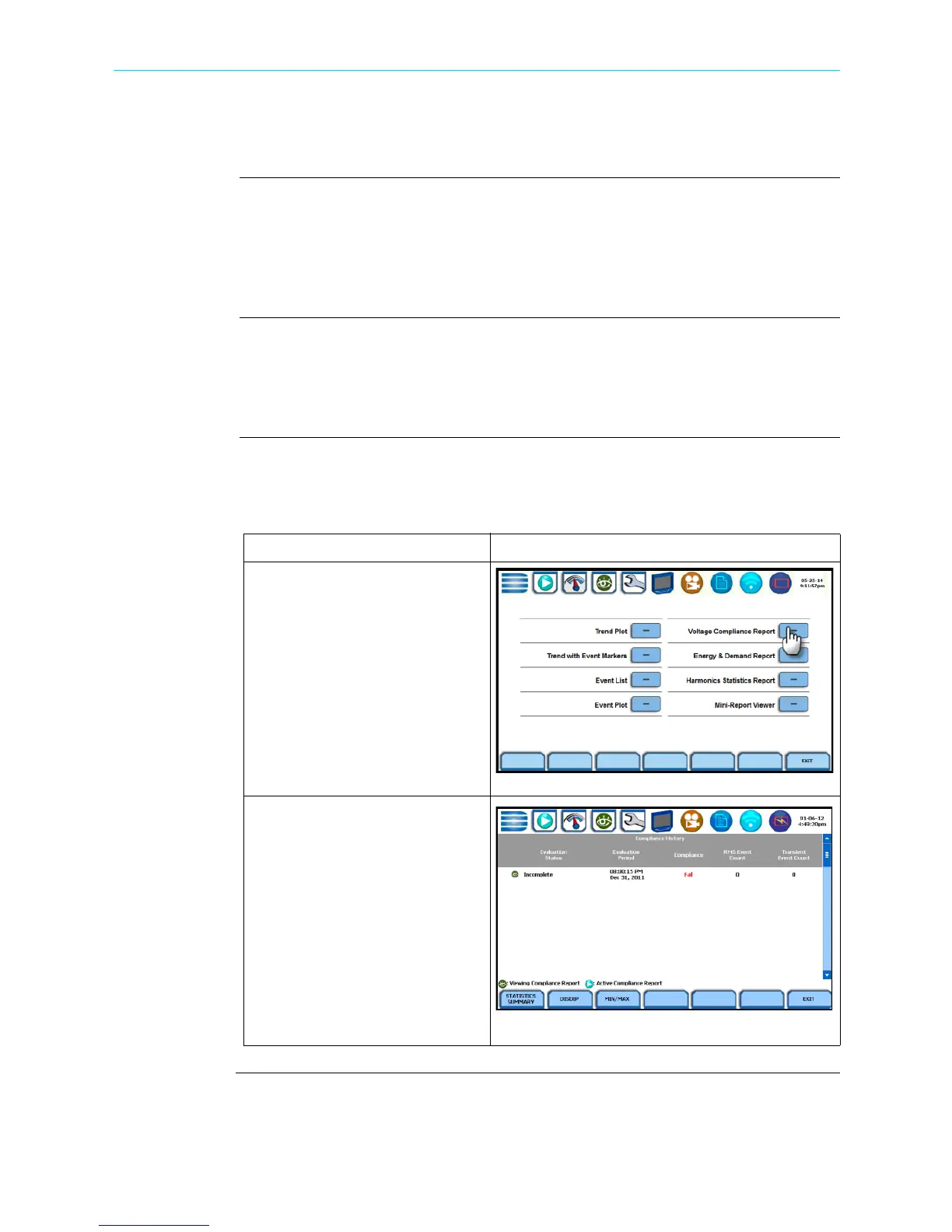

STEP 1: From the Event Data &
Reports menu, press Voltage
Compliance Report. Proceed to
Step 2.
STEP 2: Voltage Compliance
Report appears in the form of a
table called Compliance History.
Compliance History displays a
summary of the QOS evaluation
status, discussed in detail in the
next section.
