Dranetz hdpq xplorer User Manual

E-11
APPENDIX E/ Common Circuit Connections
3 Phase (Floating or Grounded) Delta
Introduction
In this power connection, the HDPQ Xplorer uses voltage channels A, B, and C as
differential inputs with channel A using source voltage A-B, channel B using B-C, and
channel C using C-A as the reference. Current probes are connected to channels A, B,
and C. Neutral to ground measurements are important but optional.

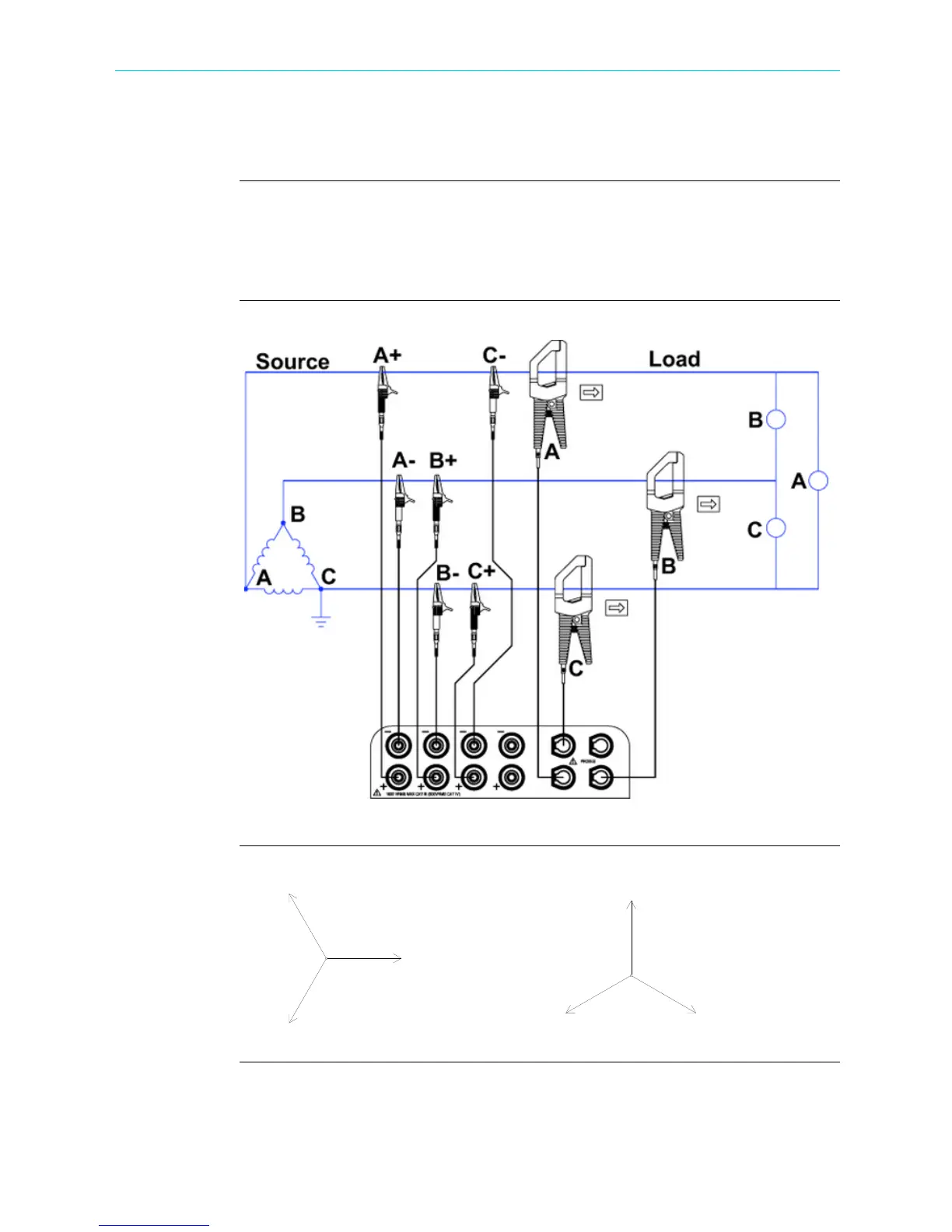

Connection
diagram
Floating Delta
phasor diagrams
V
A
V
B
0º
120º
V
C
240º
I
A
I
C
330º
90º
I
B
210º
HDPQ-904
