Basic Operation, continued
Power-on
sequence

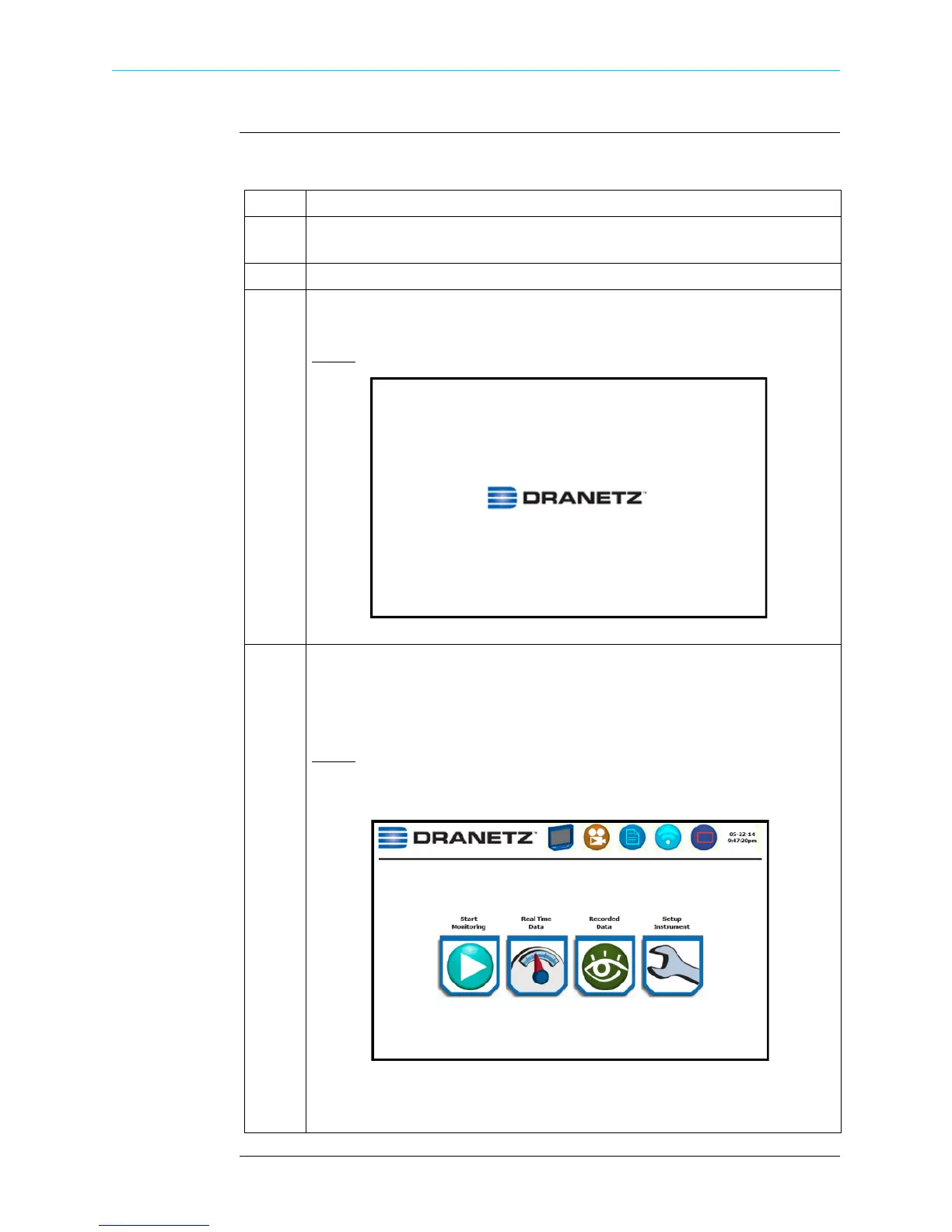

Follow these steps to turn on the HDPQ Xplorer and display the Home page.
Step Action
1 Connect the AC adapter/battery charger plug into the left side of the
instrument.
2 Plug the AC adapter into an AC power source.
3 Press the On/Off power switch located at the left side to turn the instrument
on.
Result
: The Dranetz logo will be displayed while the instrument is booting.
4 After the instrument completes the power on sequence and loads the
program and setups in, the Home screen displays the large shortcut buttons
of the major functions of the instrument. This allows you to easily select the
first function after power up.
Result
: The Home page will be displayed. The icons represent four main
instrument functions: Start Monitoring, Real Time Data, Recorded Data
(events, data, reports) and Setup Instrument.
NOTE: If the instrument was shut down while monitoring, the instrument
will resume monitoring upon power up.
