Dranetz hdpq xplorer User Manual

3-28
Phasor Channel/Parameter Selection
Phasor Channel/Parameter Selection
Channel/
Parameter
display

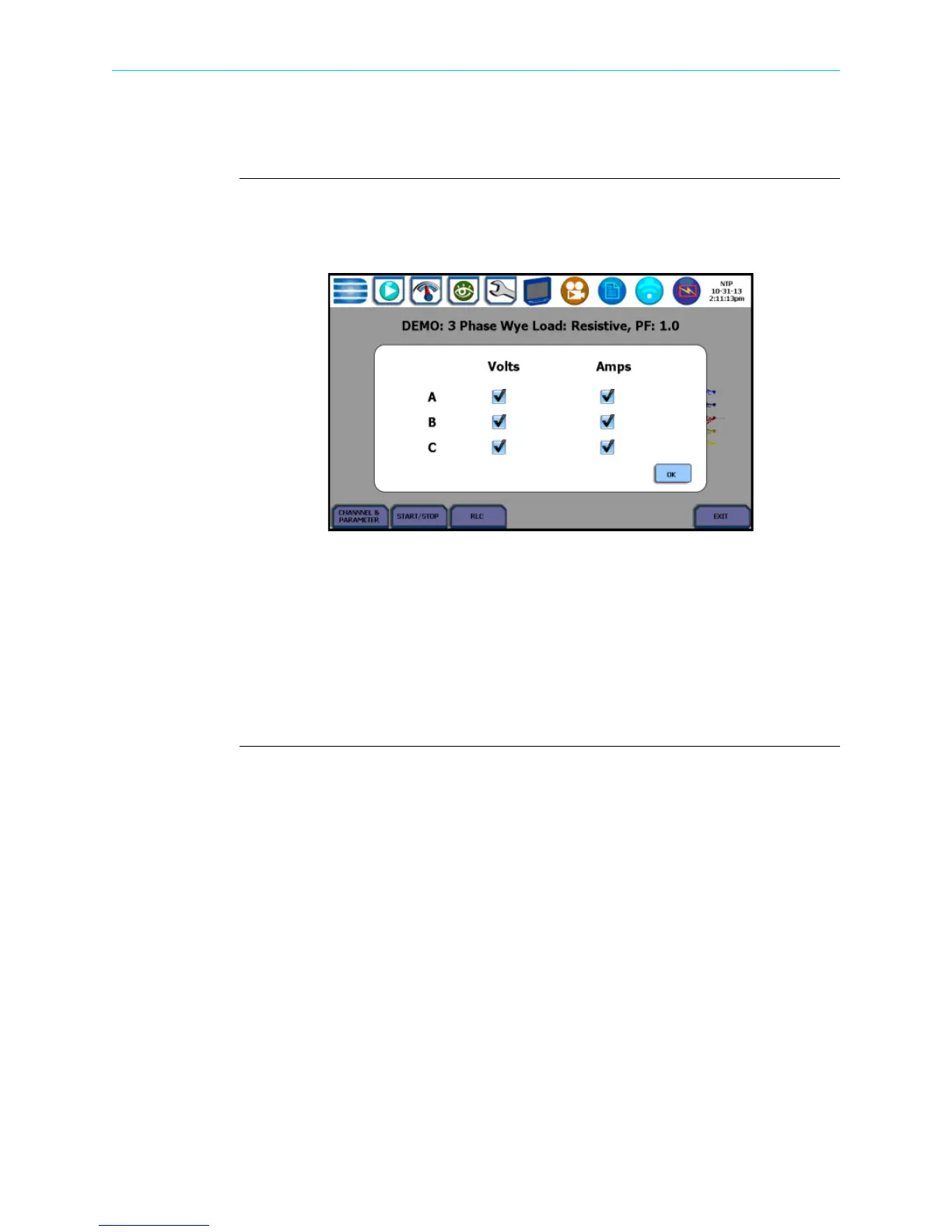

The Channel/Parameter selection screen is displayed by pressing Channel &
Parameter on the phasor Demo window. Depending on the phases being monitored, up
to three channels may be displayed at any one time for both Volts or Amps.
Press to enable/disable the channel/parameter for display in the animated phasor
rotation.
• Press the desired Volts/Amps channel to turn it on/off.
NOTE: Only one parameter/channel selection is possible at a time.
Press OK to save any changes made and return to the Phasor Demo window. The
phasor demo rotations will display the parameters/channels enabled.
