CH 3/ Real Time Data
Phasor Screen
Phasor screen
display
The Phasor window is displayed by pressing Phasor from the Real-Time Data menu or
by pressing the Phasor real-time metering icon on the work area of the Home
Monitoring page.

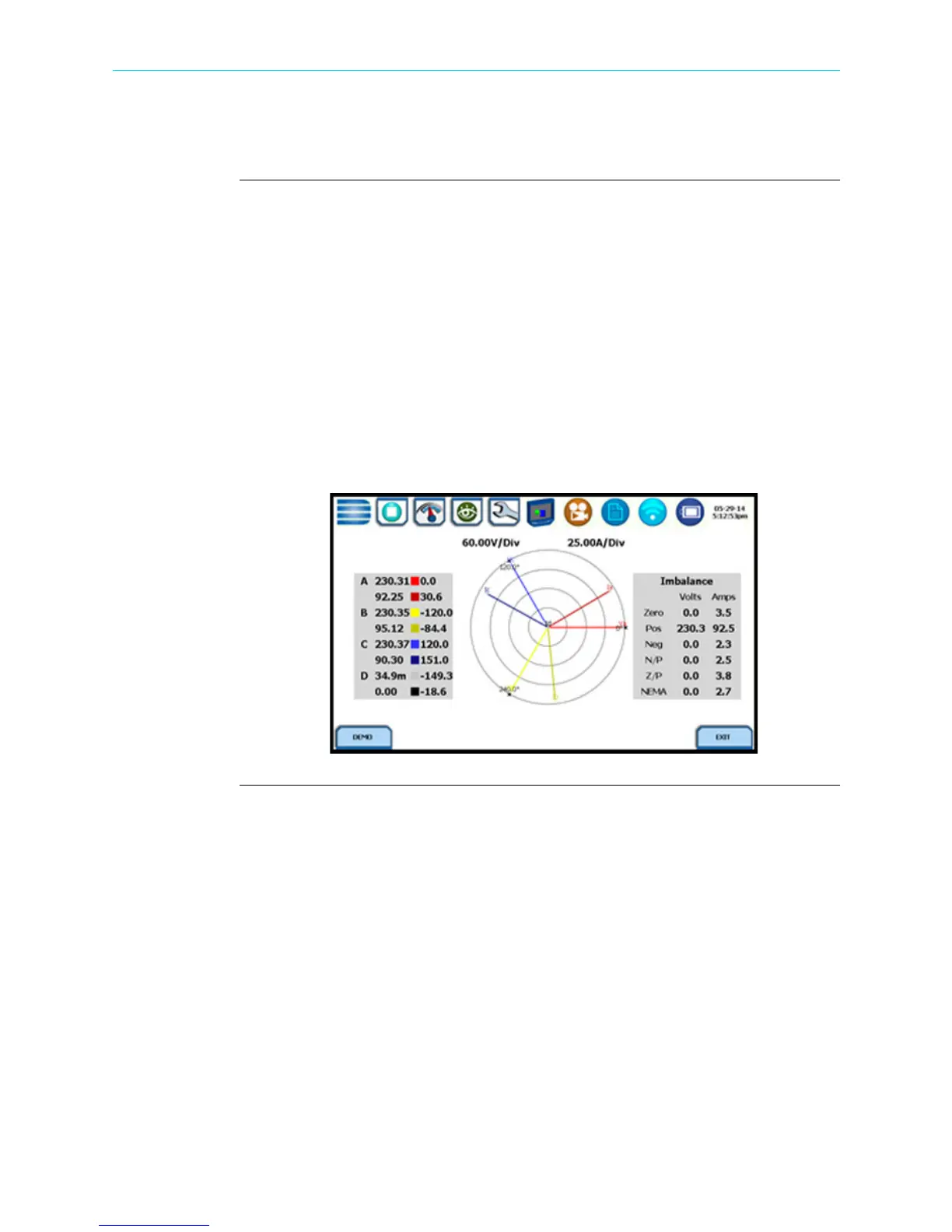

The Phasor window shows eight phasors autoscaled with zero degree to the right for
clockwise rotation and with synchronized channels. The left sidebar shows rms values
for Volts/Amps for channels A, B, C and D. The right sidebar shows zero, positive and
negative values for Volts/Amps; zero, positive and negative sequence component
values for Volts/Amps; as well as negative zero imbalance and maximum deviation
imbalance.
Depending on the phases being monitored, up to four channels may be displayed at any
one time for either Volts or Amps, or a single channel for both Volts and Amps. An
arrow head and channel label are displayed on the vector.
