3-31
CH 3/ Real Time Data

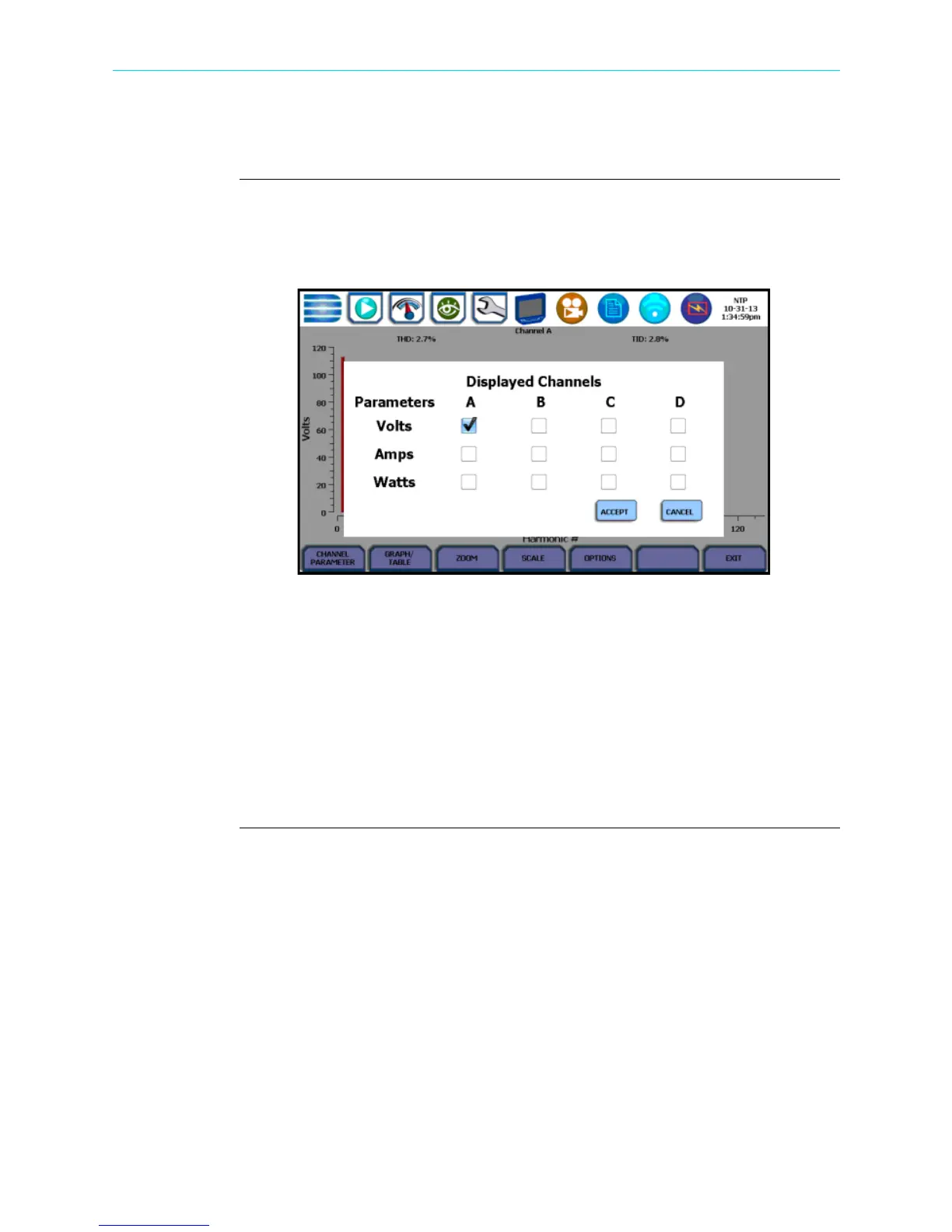

Harmonic Channel/Parameter Selection
Channel/
Parameter
display
From the Harmonic Graph window, press Channel Parameter to turn Volts/Amps/
Watts channel selection on/off. One channel/parameter combination can be displayed at
a time for the spectrum graph, magnitude list, or phase angle list for the harmonics.
Selections can be made from Channels A, B, C and D, and Parameters V, I, W.
Doing any of the following actions will turn channels/parameters on/off:
• Press the desired Volts/Amps/Watts channel to turn it on/off.
NOTE: Only one parameter/channel selection is possible at a time.
Press Accept to save any changes made and return to harmonic display with channels
as displayed in the check boxes.
Press Cancel to return to harmonic display without changing any of the displayed
channels.
HDPQ-327
