CH 6/ View Event Data & Reports
Event waveform
function keys
The following function keys are available to set up event waveform display.

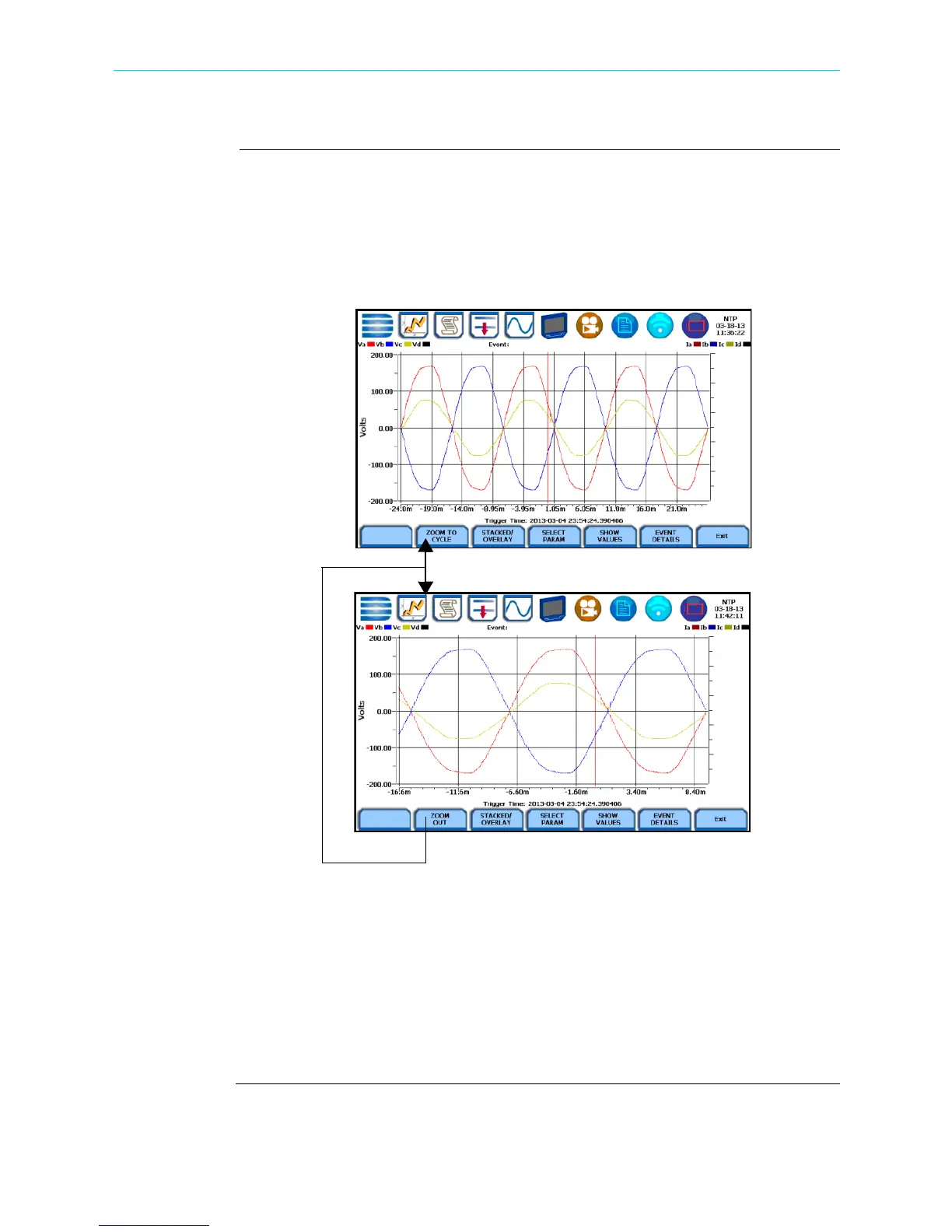

Zoom to Cycle - toggles between narrowing the size of the display area that lets you
view event cycles in greater detail (Zoom to Cycle) and then unzoom the last step and
return to the previous screen (Zoom Out). Refer to the zoom function details described
in Event Plot - rms. Sample screens on magnify event waveforms are shown below.
You can also use the touchscreen to manually zoom in/out of the plot display. The
touchscreen allows you to magnify details, expand or narrow in a zoom area via a one
finger touch and drag action.
To manually create a zoom box and zoom in on parameter(s) on the left axis, touch the
screen with one finger starting from the top left and then drag to the lower right. To
zoom in on parameter(s) on the right axis, touch the screen with one finger starting
from the top right and then drag to the lower left. The zoomed area will be marked by
red-colored dotted box allowing you to view event data in greater detail.
