3-33
CH 3/ Real Time Data
Harmonic
graph/table
display
(continued)

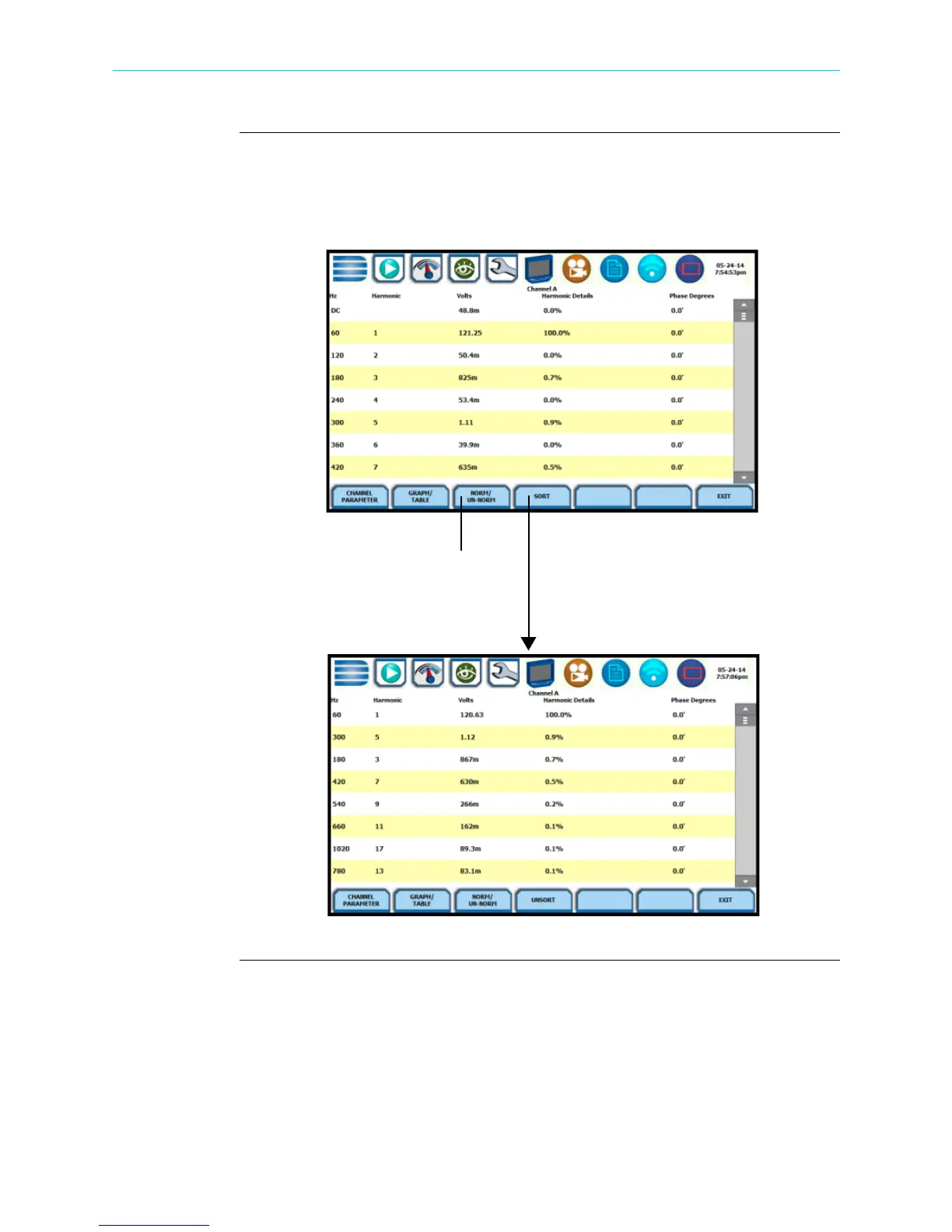

Harmonic phase degree values from 1 to 127 are displayed for voltage and current;
phase degree values from 1 to 127 are displayed for harmonic watts. Harmonic phase
angle values can be normalized to the phase of the fundamental of the displayed
channel. Use the Norm button to show the normalized phase angle values.
Toggle between
Normalized and
UnNormalized
phase values
Organize harmonic text
display in order of
decreasing magnitude
HDPQ-331
HDPQ-330
