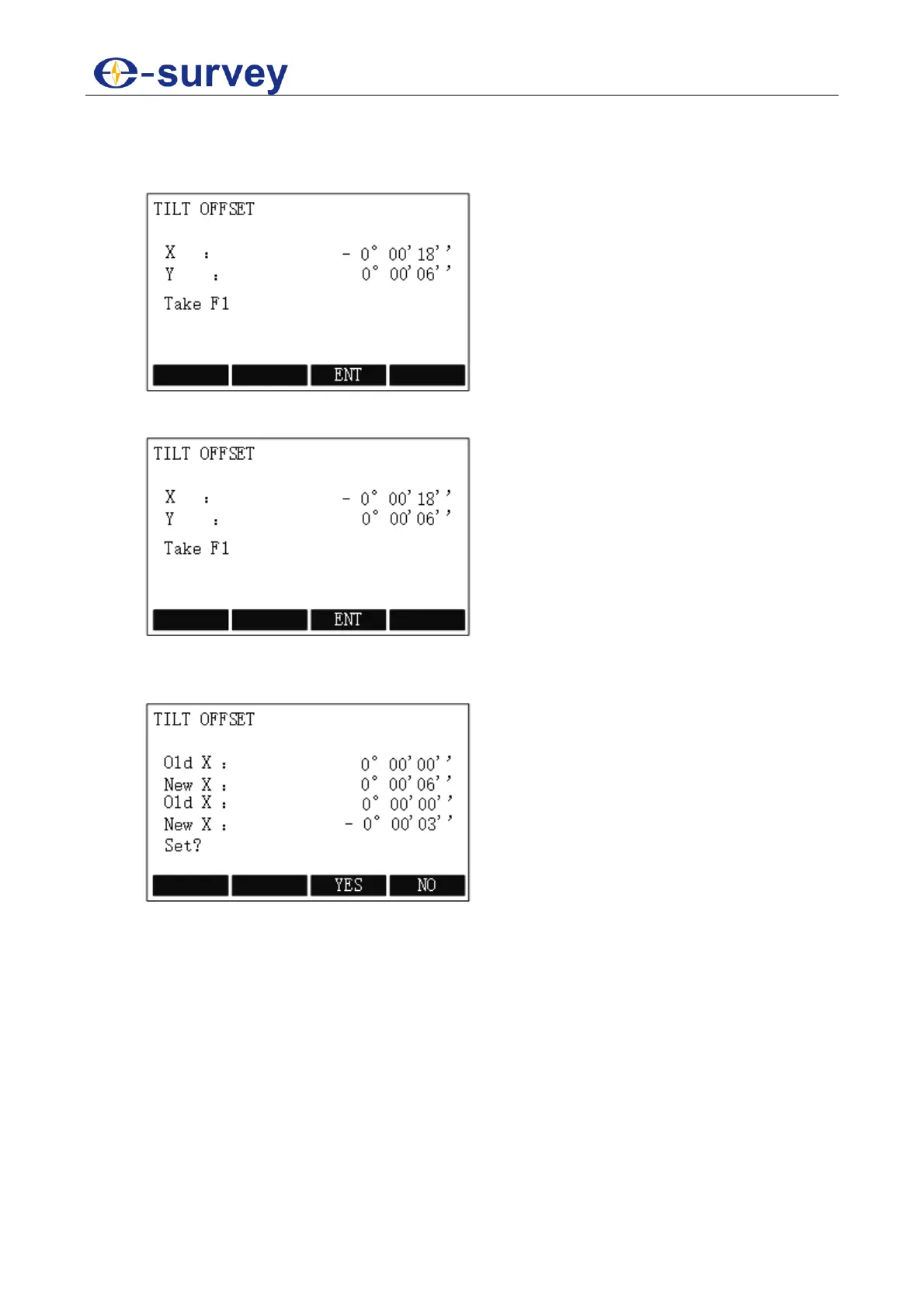

To adjust the tilt offset, do the following:
1. To select Tilt Offset, press MENU, press PAGE to go to the second page, press F1
ADJ / 5, and press F4 / 4 in CHECK &ADJUST display:
2. To get the face left angle reading F1, aim at the cross-hairs of collimator or the
obvious target at a distance at telescope left, and press F3 ENT:
3. To get the face right angle reading F2, aim at the cross-hairs of collimator or the
obvious target at a distance at telescope right, and press F3 ENT. The system
automatically calculates the new collimation error:
4. Press F3 YES for confirmation.
