2.4 Display
E3L is equipped with two large LCD screens (240 * 128dots). And the LCD could display 8
lines with 24 characters per line.
Note: Please do not touch the display with sharp things.

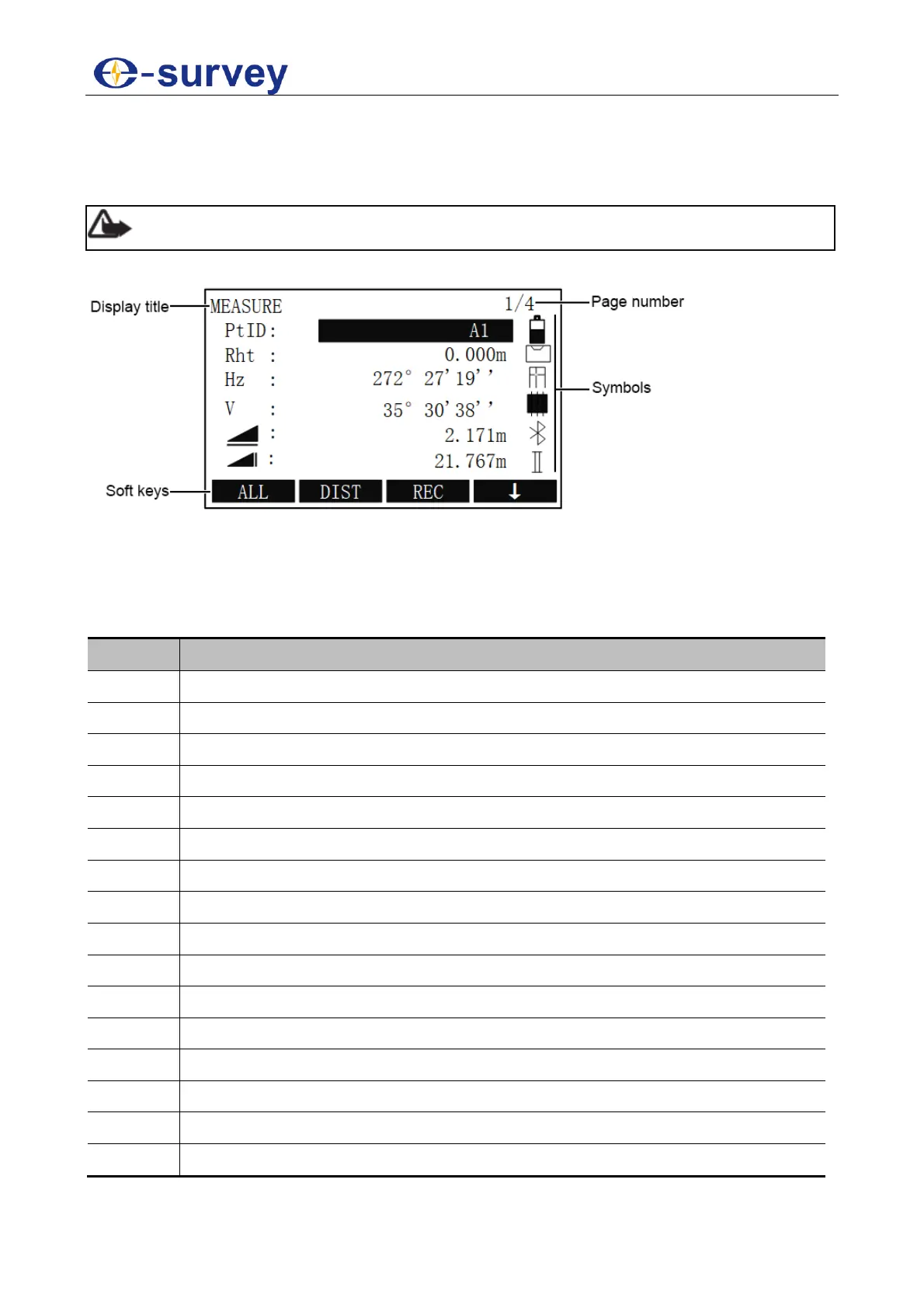

The main display is as follows:
2.4.1 Soft Keys
Under soft keys, a selection of commands and functions are listed at the bottom of the
display. You can press F1 ~ F4 on the operating panel to execute the related command.
Main soft keys include the following:
To start distance and angle measurements and save measured values.
To start distance and angle measurements without saving measured values.
To save the currently displayed values.
To confirm an entry or selection.
To open the coordinate input mode.
To display the list of available points.
To start the search for the point entered.
To return to the last active display.
To go to the next display.
To go to the first display.
To set the displayed message or display and quit display.
To set the value to zero.
To stop procedure being carried out.
Alphabet mode. Its function is equivalent to Shift key.
Numeric mode. Its function is equivalent to Shift key.
To Next Page
