2.3 Operating Panel

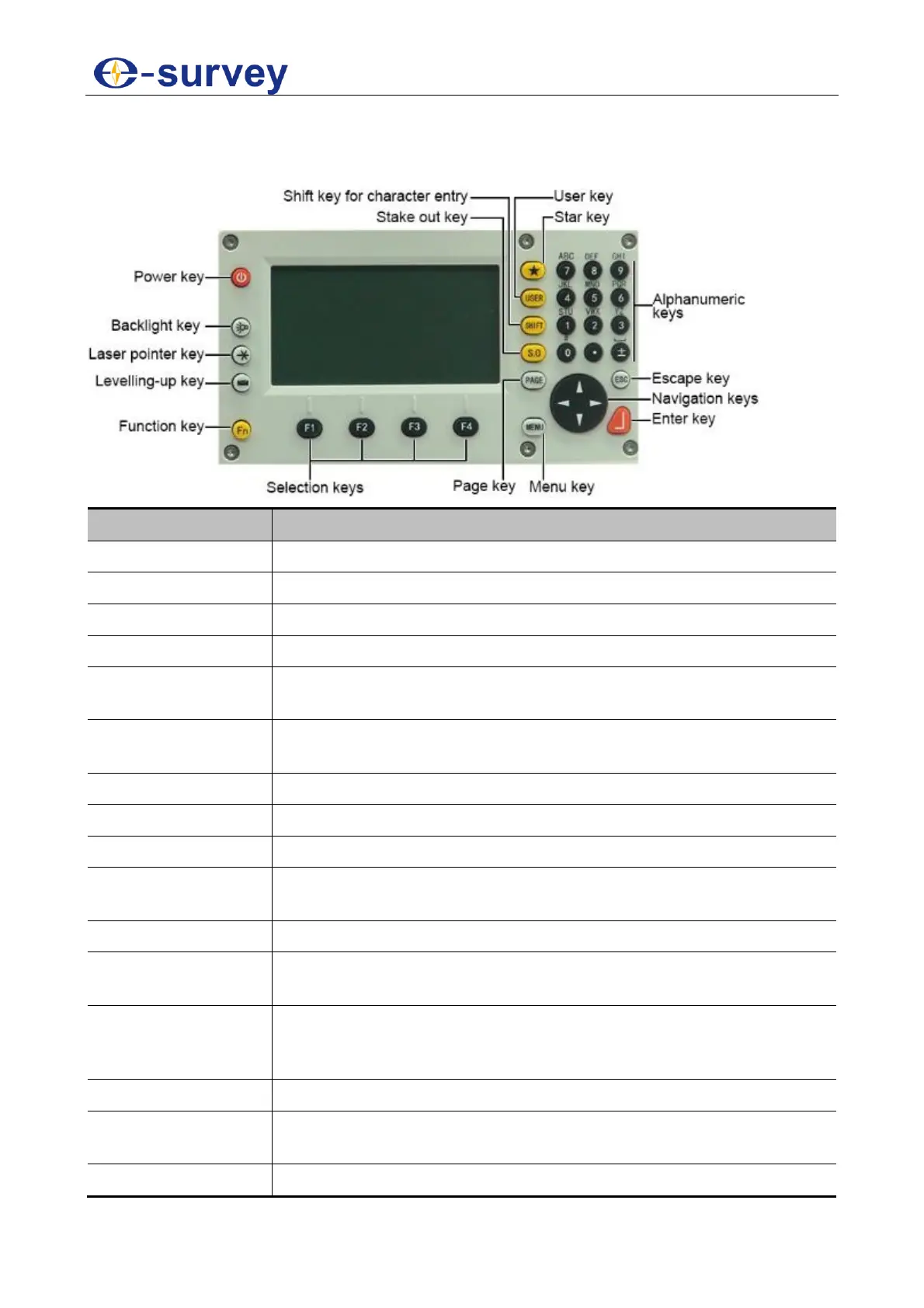

The operating panel is as follows:
Key
What it does
Power key
To turn on the instrument in no time or turn off the instrument.
Backlight key
To turn on / off the backlight.
Laser pointer key
To turn on / off the laser pointer.
Levelling-up key
To do levelling-up. See 3.3 Do Levelling-up for details.
Function key
To perform sorts of fast function settings defined by program
screen.
Selection keys
To select the functions matching the soft keys. About soft keys, see
2.4.1 Soft Keys for details.
Page key
To go to the next page when a display consists of several pages.
Menu key
To access to 9 main menu. See 5 Menu Key for details.
Enter key
To confirm an entry or selection.
Navigation keys
To control the focus bar within the screen and the entry bar within
a field.
Escape key
To quit a screen or edit mode without saving changes.
Alphanumeric
keys
To directly enter characters (including numbers on keys and letters
above keys). See 2.5 Input Mode for details.
Star key
To access star setting mode and do some basic essential settings,
including backlight, contrast, reticle illumination, tilt correction, and
laser pointer.
User key
It is configurable with function from the Function key.
Shift key for
character entry
To shift between number and alphabet when inputting, and to shift
target model when measuring.
Stake out key
A shortcut key for staking out.
