SHANGHAI ESURVEY GNSS CO., LTD.
52

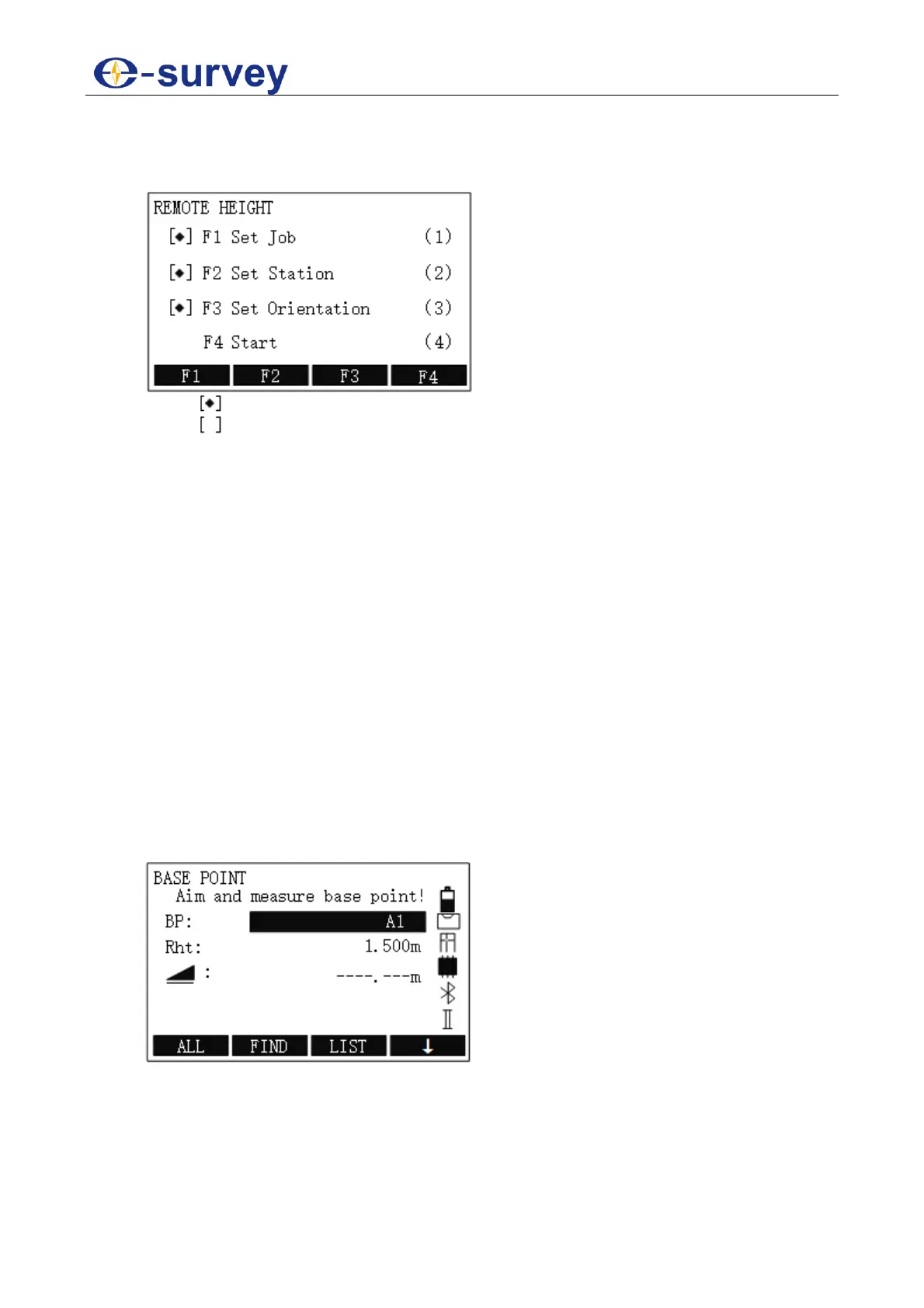

To set remote height, do the following:
1. To enter Program menu page, press MENU and F1 or 1.
2. Press PAGE to go to the second page, and press F3 or 7:
o : it indicates that settings are done.
o : it indicates that settings are not done.
3. Do the following:
a. Set a Job
If you have done it before, you can skip it.
b. Set the Station
If you have done it before, you can skip it.
c. Set the Orientation
If you have done it before, you can skip it.
d. Start Remote Height
5.2.7.1 Set a Job
See 5.2.1.1 Set a Job for details.
5.2.7.2 Set the Station
See 5.2.1.2 Set the Station for details.
5.2.7.3 Set the Orientation
See 5.2.1.3 Set the Orientation for details.
5.2.7.4 Start Remote Height
To start remote height, do the following:
1. To enter BASE POINT display, in REMOTE HEIGHT display, press F4 / 4:
2. To input the height of reflector, and press F1 ALL. The display shows Data Saved.
