SHANGHAI ESURVEY GNSS CO., LTD.
25
5.2.1.2 Set the Station
It is used to set the coordinates of the station.
To set the station, do the following:

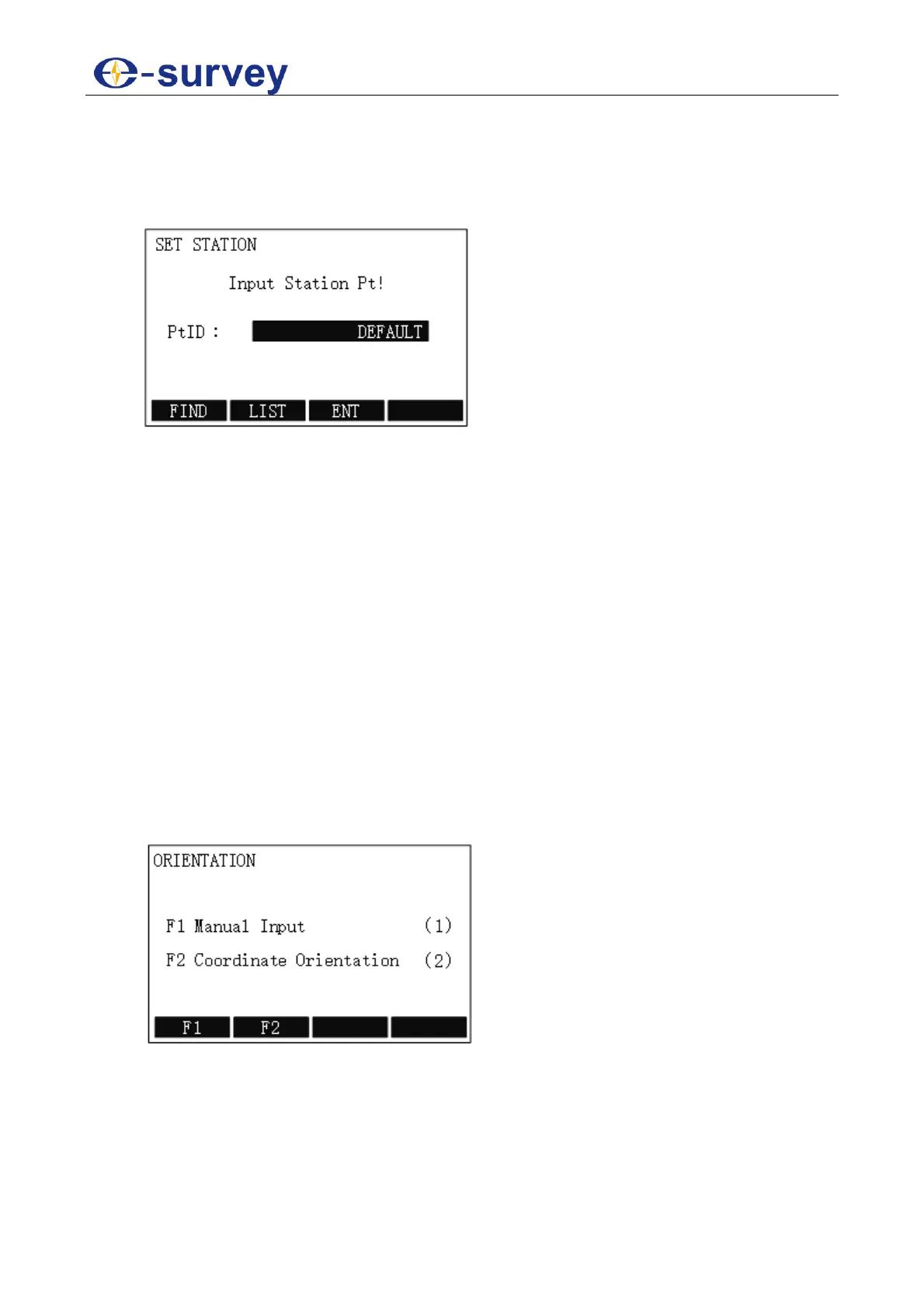

1. To enter SET STATION display, in MEASURE SET display, press F2 / 2:
2. Do one of the following:
o Manually set the station:
i. To open COORDINATE INPUT display, press F3 ENT.
ii. Set the point ID and coordinates.
iii. To save station coordinates, press F4 ENT. The display automatically
returns to SET STATION display.
iv. Set the height of the instrument after input box Hi.
v. Press F4 ENT. The display shows Data Saved.
o Set the station by reading from the internal memory:
i. To select a Point ID stored in the internal memory, press F1 FIND / F2
LIST.
ii. Select a point, and press enter key.
iii. Set the height of the instrument after input box Hi.
iv. Press F4 ENT. The display shows Data Saved.
5.2.1.3 Set the Orientation
It is used to set the horizontal direction with the orientation.
To set the orientation, do one of the following:
1. To enter ORIENTATION display, in MEASURE SET display, press F3 / 3
To Next Page
