SHANGHAI ESURVEY GNSS CO., LTD.
6

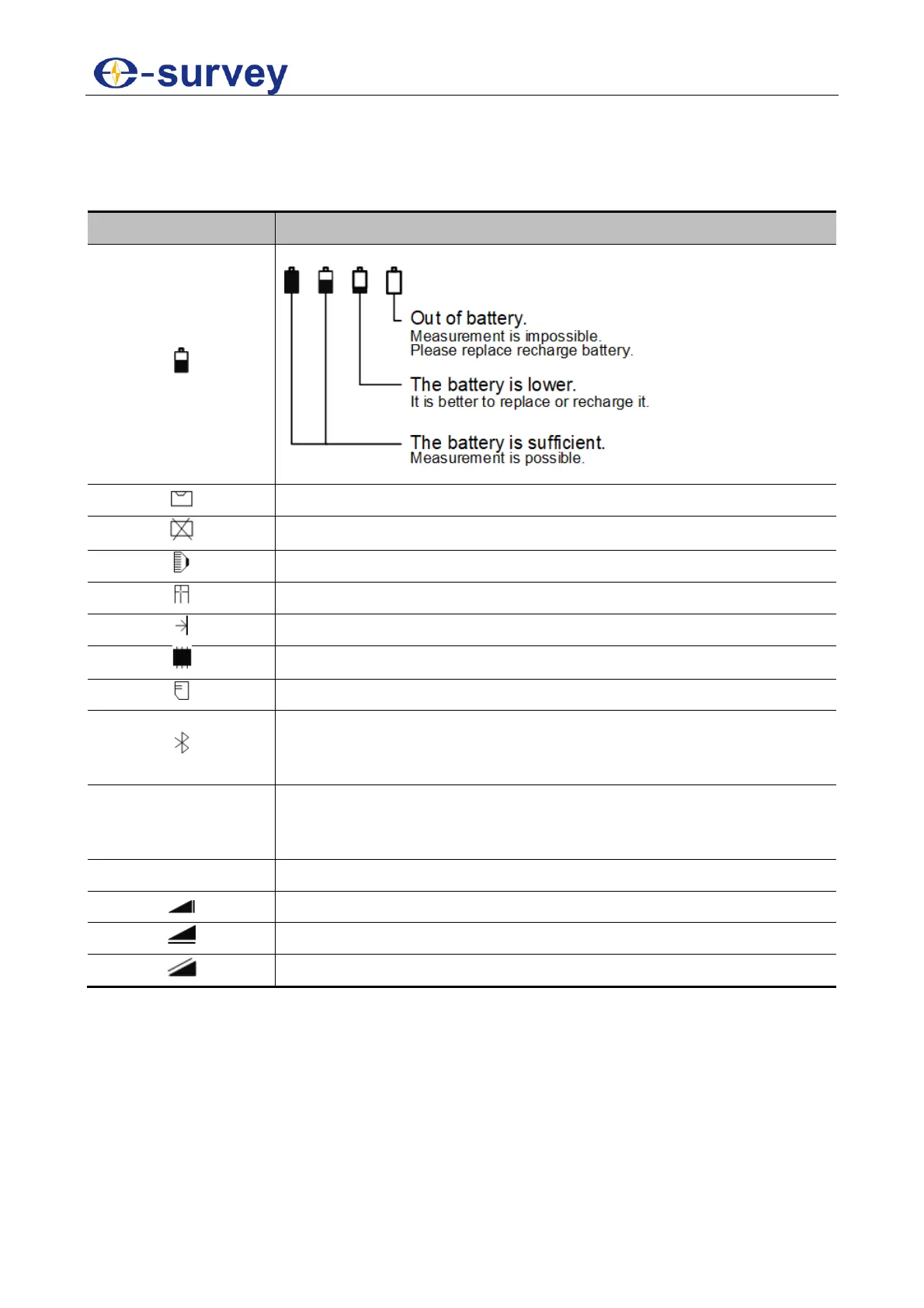

2.4.2 Symbols
Symbols indicate a particular operating status of E3L.
Main symbols include the following:
What it means
It indicates the level of the remaining battery capacity.
The compensator is on.
The compensator is off.
The prism type is prism.
The prism type is sheet.
The prism type is no prism.
Internal storage mode.
External storage mode.
The instrument is connected to the Bluetooth. When the symbol
does not show, the instrument is communicated by RS232 serial
port.
When Face I Definition is set to Face_I, I means face left, and II
means face right; when it is set to Face_II, I means face right,
and II means face left.
Choice fields (setting the options).
The vertical distance between the station and the target point.
The horizontal distance between the station and the target point.
The slant distance between the station and the target point
