71

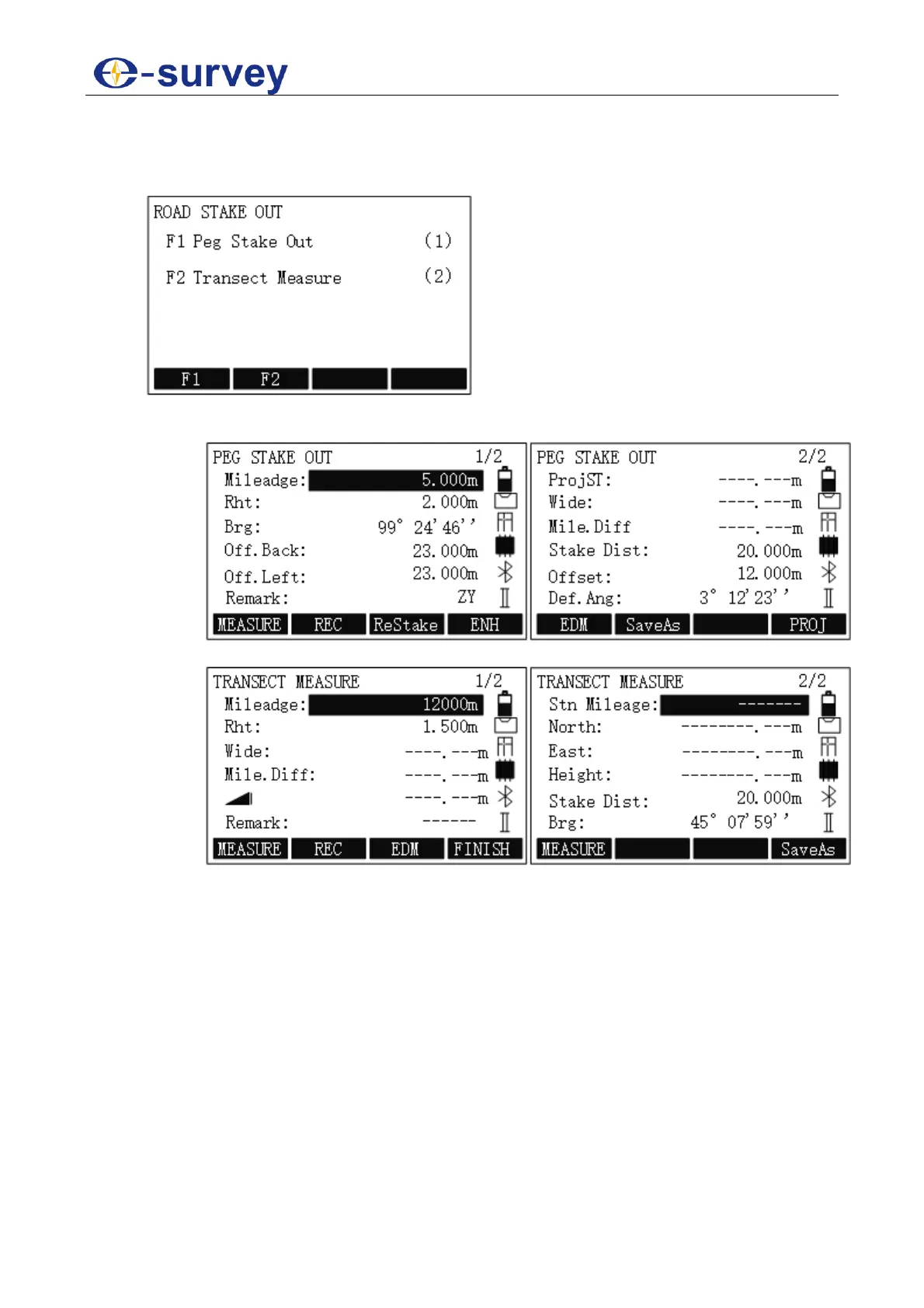

5.2.11.4.2 Set Road Staking out
To set road staking out, do the following:
1.
To enter
ROAD STAKE OUT
display, in
ROAD MENU
display, press
F2
/
2
:
2.
Do one of the following:
o
To select
Peg Stake Out
, press
F1
/
1
:
o
To select
Transect Measure
, press
F2
/
2
:
3.
Input data and start measurement.
