5.2.10 Lead Measure
This program is used for survey of hierarchical control traversing and mapping traversing
etc. and adjustment and computation of closure.
To set the lead measurement, do the following:
1. To enter Program menu page, press MENU and F1 or 1.

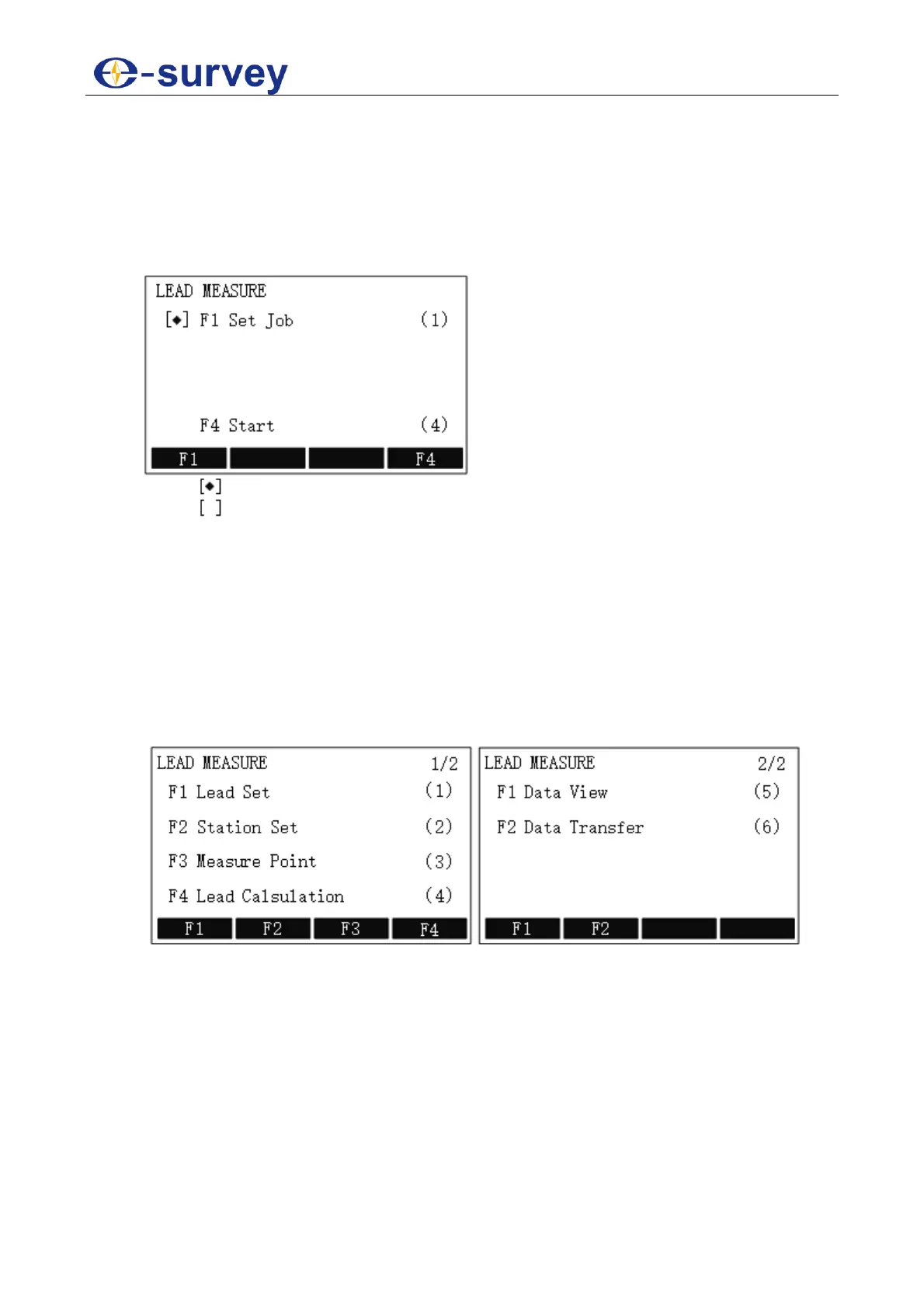

2. Press PAGE to go to the third page, and press F2 or 01:
o : it indicates that settings are done.
o : it indicates that settings are not done.
3. Do the following:
a. Set a Job
If you have done it before, you can skip it.
b. Start Lead Measurement
5.2.10.1 Set a Job
See 5.2.1.1 Set a Job for details.
5.2.10.2 Start Lead Measurement
To start lead measurement, do the following:
1. In REFERENCE LINE/ARC display, press F4 / 4. The following display shows:
2. Set the Lead
3. Set the Station
4. Measure the Point
5. Calculate the Lead
6. View Data
7. Transfer Data
