SHANGHAI ESURVEY GNSS CO., LTD.
15
To set offset values, do the following:

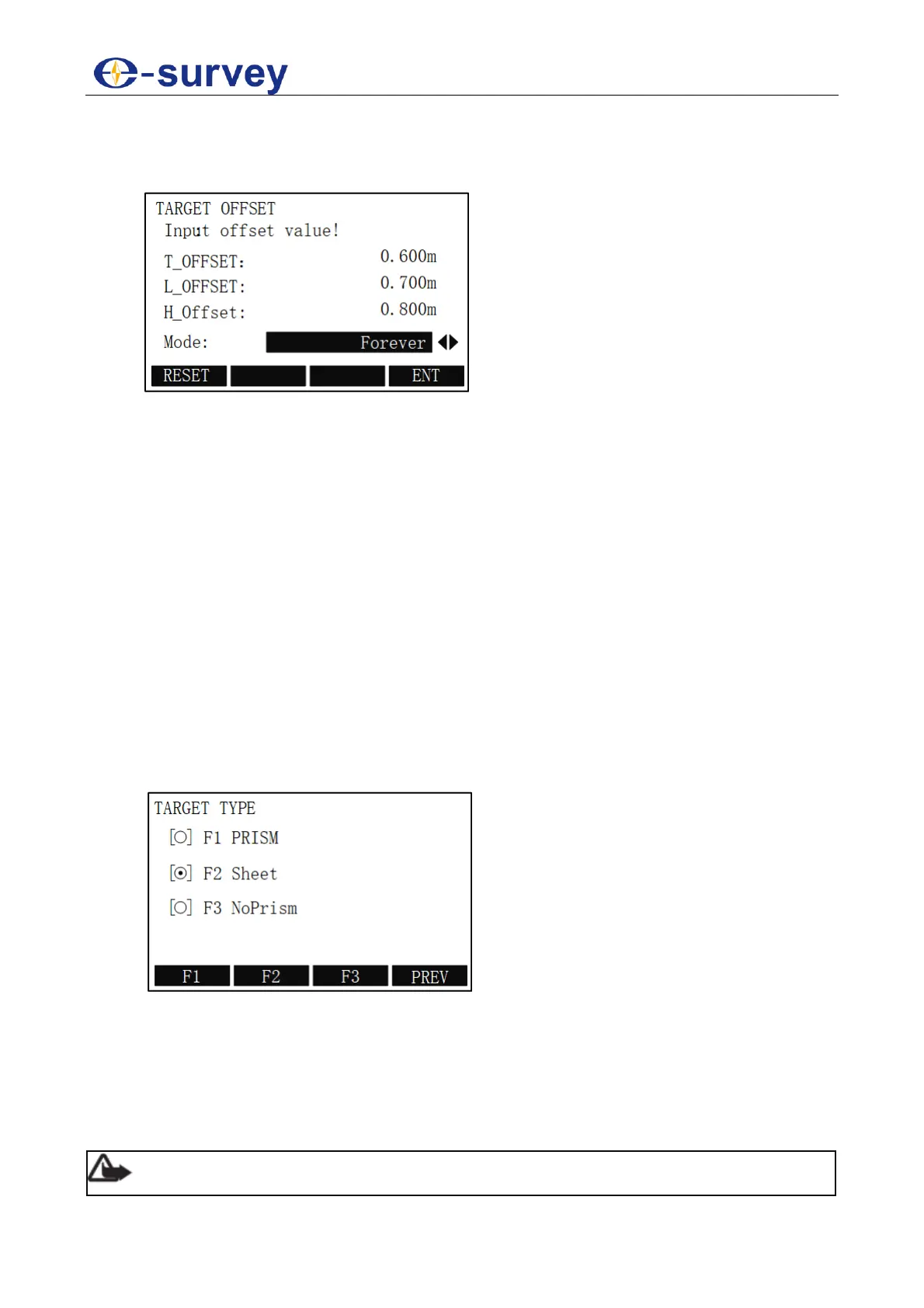

1. To select Target Offset, press Fn, and press F2 / 2. TARGET OFFSET display
shows:
2. Input the offset values (T offset, L offset and H offset) according to the principle.
3. Define the period during which the offset is to apply:
o Reset: the offset values are reset to 0 after the point is saved.
o Forever: the offset values are applied to all further measurements.
4. To reset offset values to zero, press F1 RESET.
5. To calculate the corrected values, press F4 ENT. The display jumps to the
application from which the offset function is started.
The corrected angle and distance are displayed once a valid distance measurement
has been triggered.
4.3 Target Set
It is used to switch among the following prism types:
Prism: distance measurements with prisms.
Sheet: distance measurements with sheets.
No prism: distance measurements without prisms.
To switch among prism types, do the following:
1. To select Target Set, press Fn, and press F3 / 3. TARGET TYPE display shows:
2. To select a prism type, press F1, F2 or F3.
3. To return to the previous page and simultaneously save setting, press F4 PREV.
4.4 Delete Last Record
It is used to delete the last recorded measurement block or code block.
Only records generated during surveying and measuring can be deleted.
Note: This operation is not reversible.
