SHANGHAI ESURVEY GNSS CO., LTD.
53

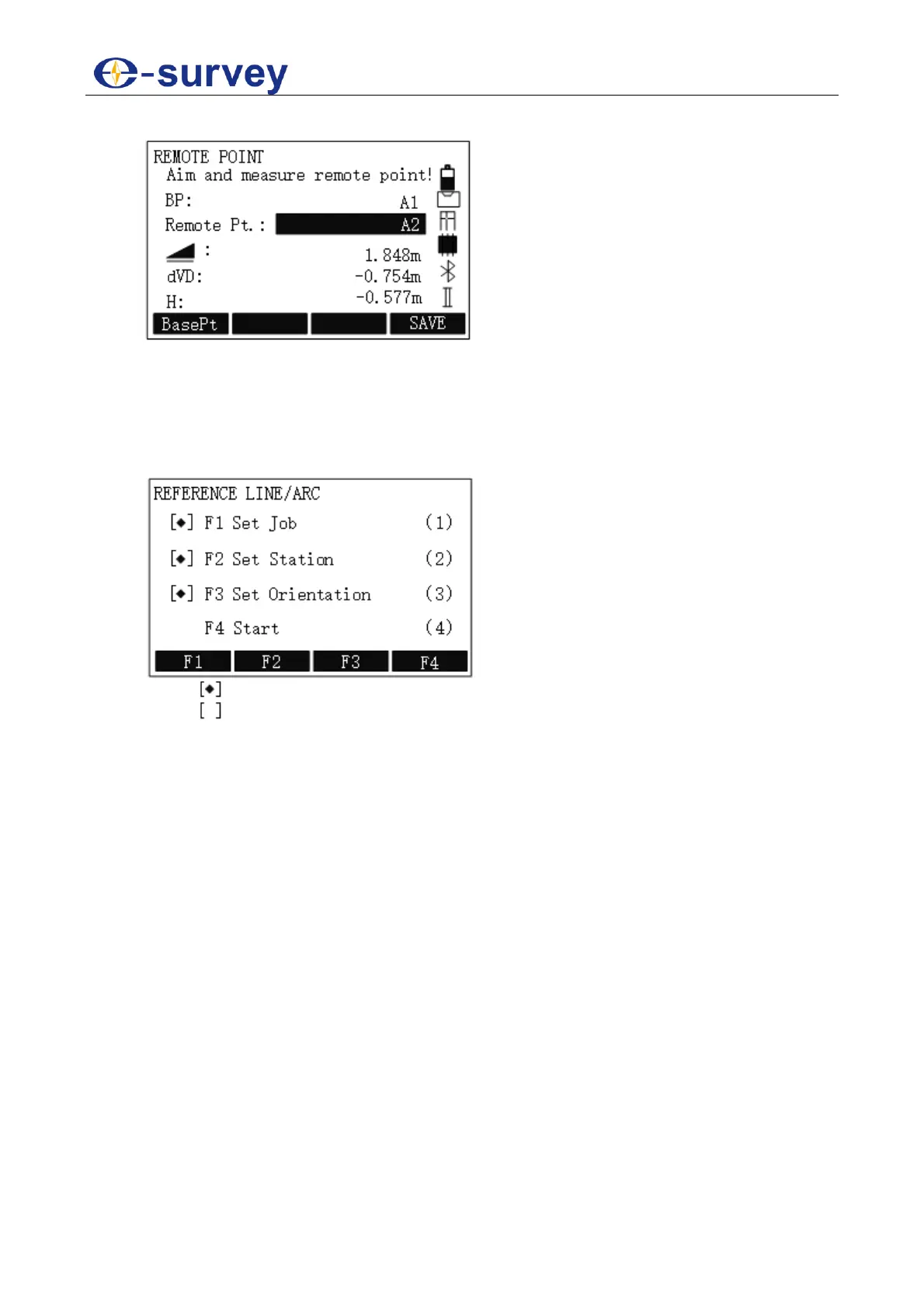

3. Aim at the inaccessible remote point. The value of dVD and H shows:
4. To save the measured data, press F4 SAVE.
5.2.8 Reference Line/Arc
To set reference line/arc, do the following:
1. To enter Program menu page, press MENU and F1 or 1.
2. Press PAGE to go to the second page, and press F4 or 8:
o : it indicates that settings are done.
o : it indicates that settings are not done.
3. Do the following:
a. Set a Job
If you have done it before, you can skip it.
b. Set the Station
If you have done it before, you can skip it.
c. Set the Orientation
If you have done it before, you can skip it.
d. Start Reference Line/Arc
5.2.8.1 Set a Job
See 5.2.1.1 Set a Job for details.
5.2.8.2 Set the Station
See 5.2.1.2 Set the Station for details.
5.2.8.3 Set the Orientation
See 5.2.1.3 Set the Orientation for details.
