SHANGHAI ESURVEY GNSS CO., LTD.
46

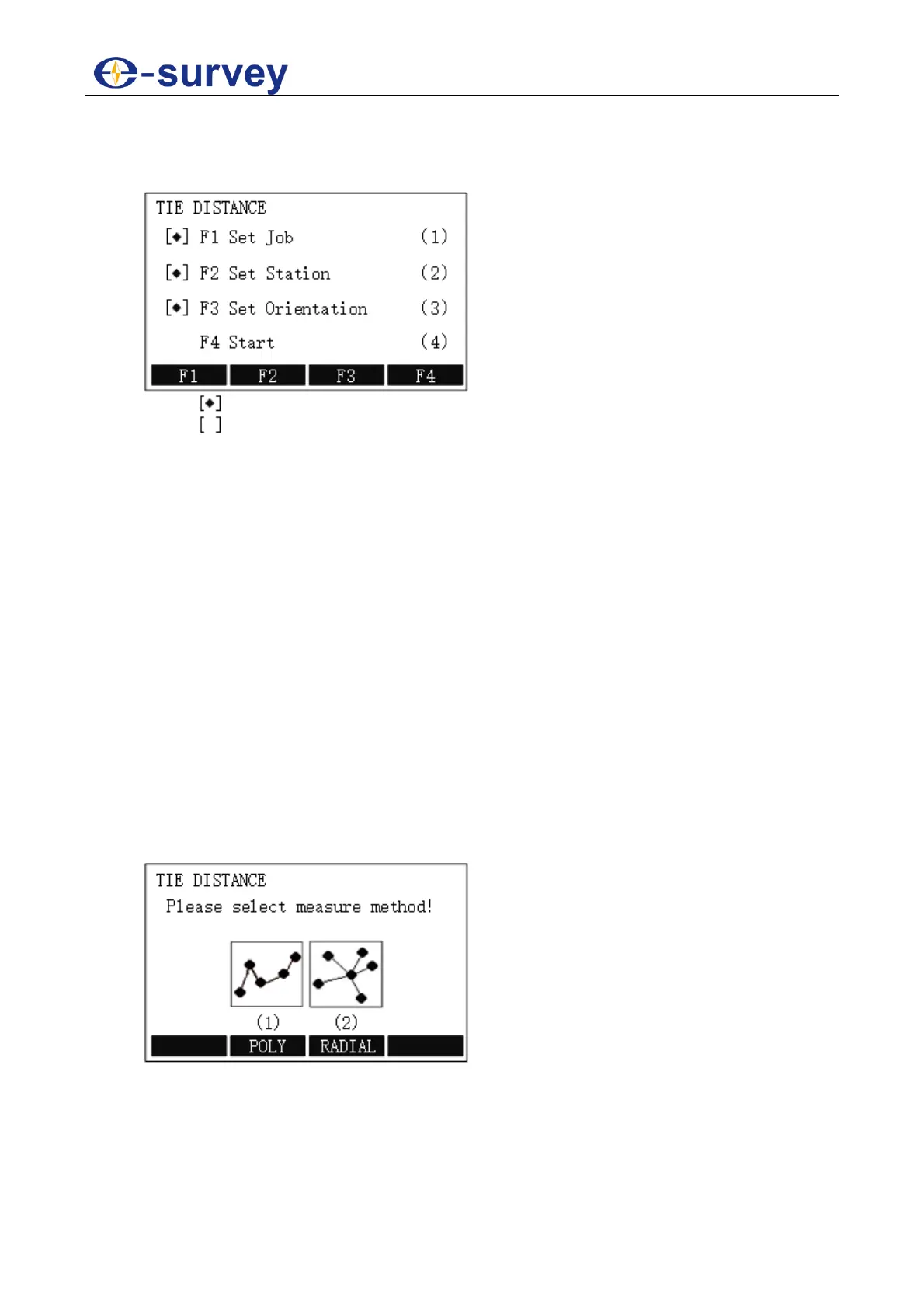

To set tie distance, do the following:
1. To enter Program menu page, press MENU and F1 or 1.
2. Press PAGE to go to the second page, and press F1 or 5:
o : it indicates that settings are done.
o : it indicates that settings are not done.
3. Do the following:
a. Set a Job
If you have done it before, you can skip it.
b. Set the Station
If you have done it before, you can skip it.
c. Set the Orientation
If you have done it before, you can skip it.
d. Start Tie Distance
5.2.5.1 Set a Job
See 5.2.1.1 Set a Job for details.
5.2.5.2 Set the Station
See 5.2.1.2 Set the Station for details.
5.2.5.3 Set the Orientation
See 5.2.1.3 Set the Orientation for details.
5.2.5.4 Start Tie Distance
To start tie distance, do the following:
1. To enter TIE DISTANCE display, in TIE DISTANCE display, press F4 / 4:
To Next Page
