SHANG
HAI ESURVEY G
NSS CO., LTD.
37

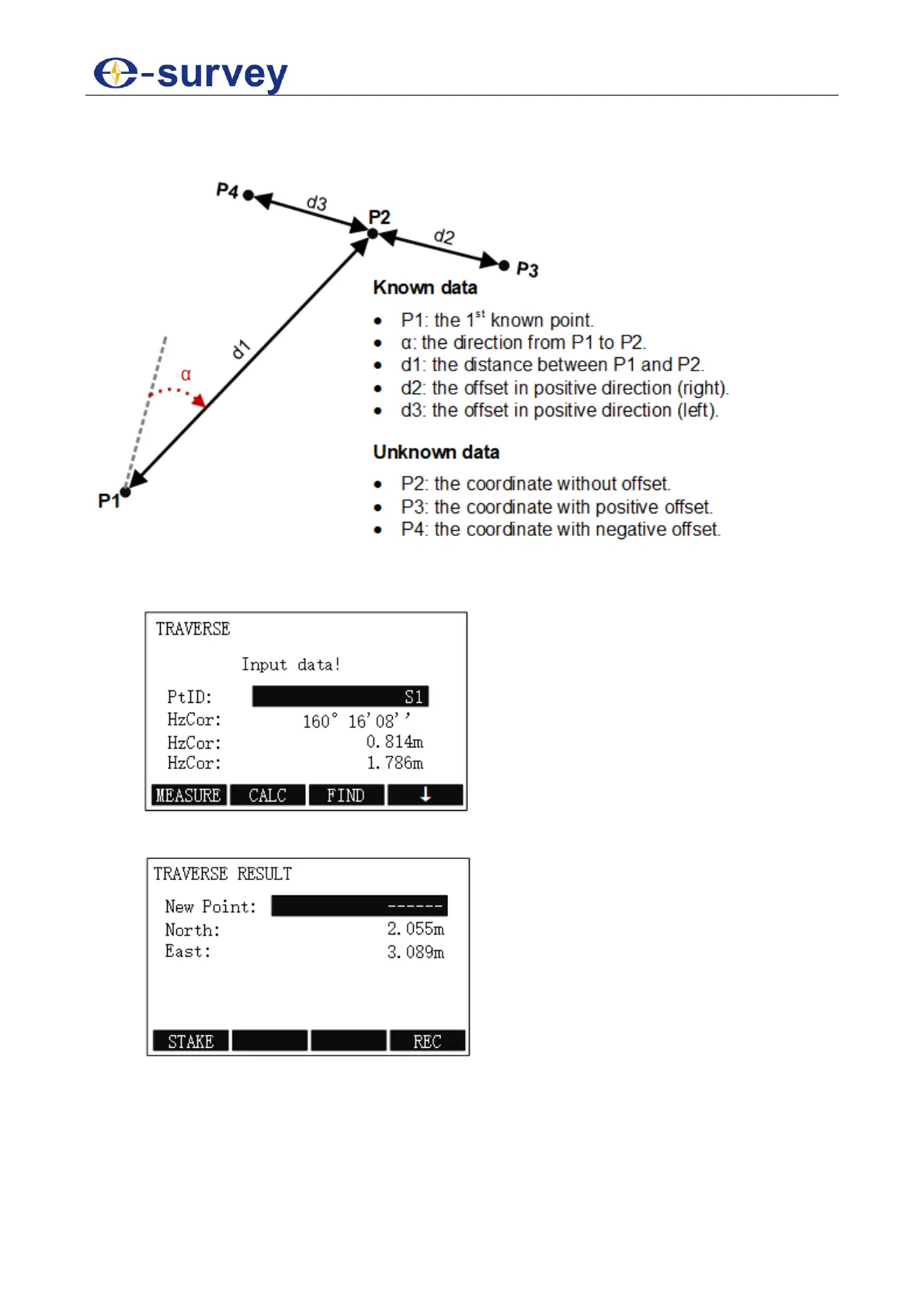

5.2.4.4.1.2 Set Traverse Computation
The principle is as follows:
To set traverse computation, do the following:
1.
To select
Traverse
, press
F1
/
1
in
COGO
display, and press
F2
/
2
.
2.
Input data, and press
F2 CALC
for computing.
TRAVERSE RESULT
display
shows:
3.
Input a name for the new
po
int and press
F4 REC
for record. The display shows
Data Saved
and automatically returns to
TR
AVERSE
display.
46
48
