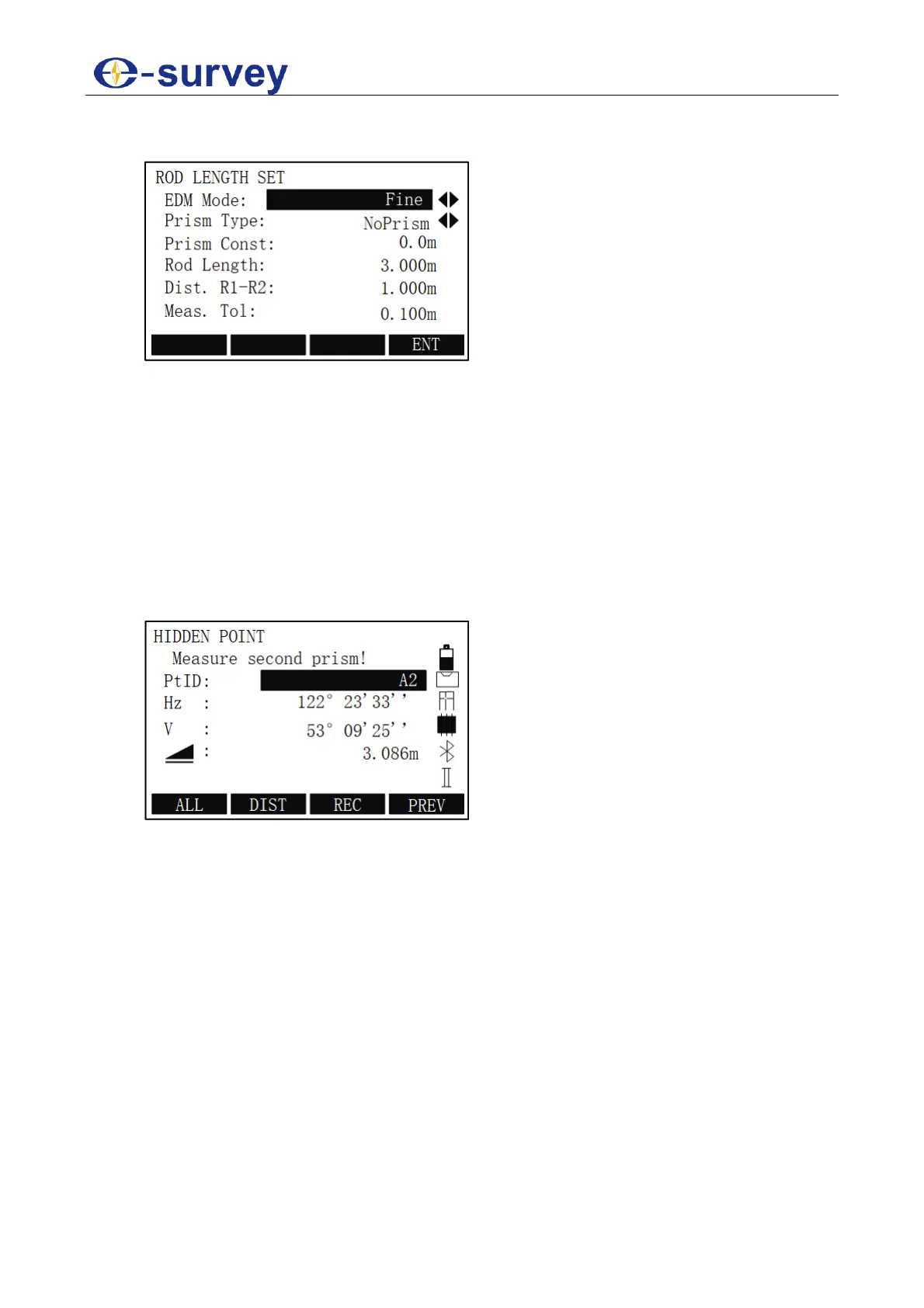

2. Optional: To define the rod and EDM settings, press F4 ROD/ED. ROD LENTHT
SET display shows:
o EDM Mode: to change the EDM Mode.
See 5.4 EDM Menu for details.
o Prism Type: to change the prism type.
See 5.4 EDM Menu for details.
o Prism Const: to show the prism constant.
o Rod Length: to set the total length of hidden point rod.
o Dist. R1-R2: to set the space between the centers of reflector R1 and prism
R2.
o Meas.Tol: to limit the difference between the given space and the measured
space of the reflectors. If the tolerance value is exceeded, a warning occurs.
3. To measure the first prism, in HIDDEN POINT display, press F1 ALL. The data is
automatically saved, and the following display shows:
