SHANGHAI ESURVEY GNSS CO., LTD.
58

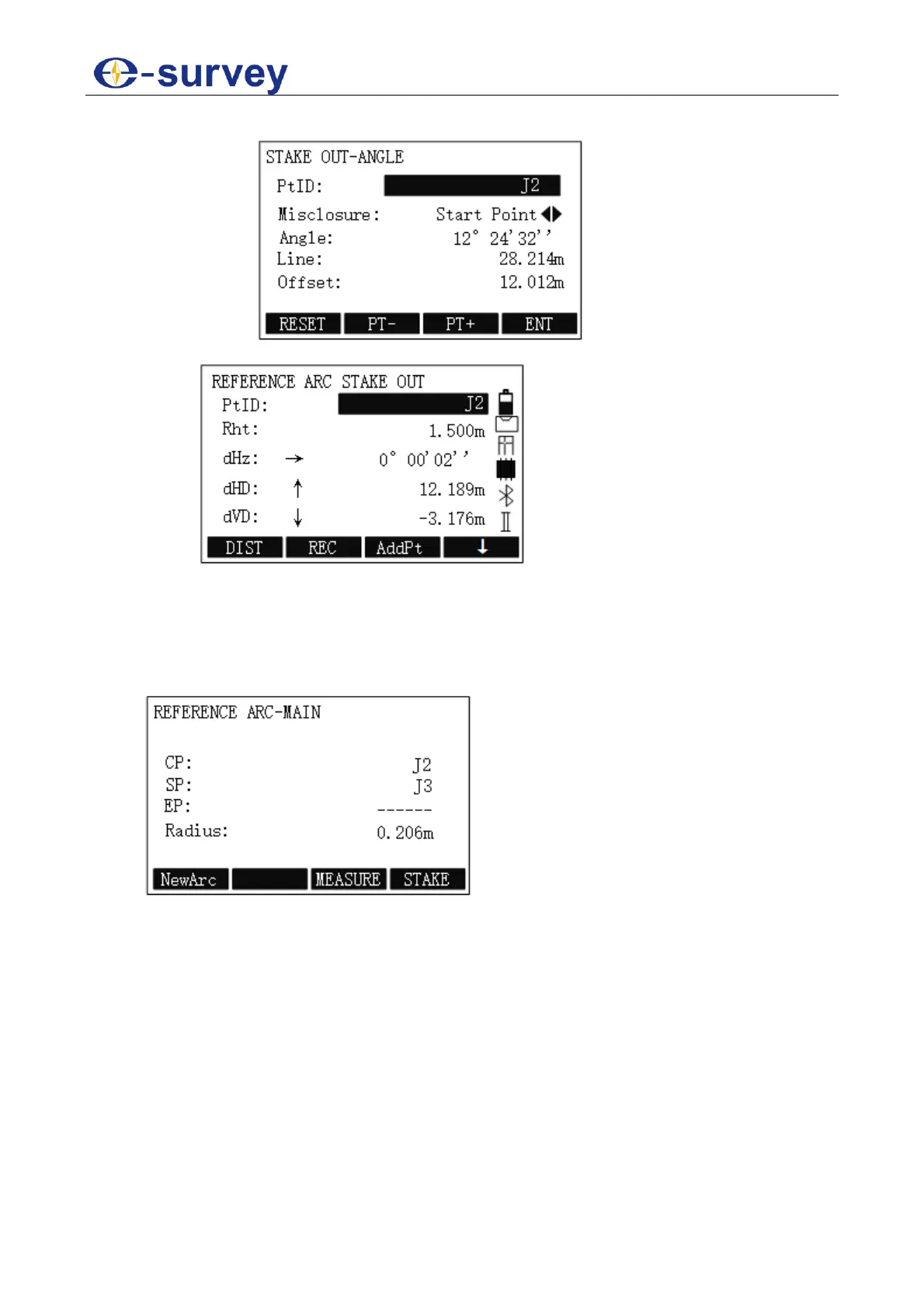

To select Stake Out Angle, press F4 / 4:
b. Input data, and press F4 ENT for confirmation:
c. Press F1 DIST to trigger measurement.
d. Optional: To start staking out for the next point, press F3 AddPt and repeat
step 2 ~ 3.
7. To measure the start point / end point, press F1 ALL to trigger measurement in
REFERENCE ARC-MAIN display. The display shows Data Saved, and the
following display shows:
8. Optional: If SP, EP, Radius is selected, enter the radius of the arc.
