Acclarix LX9 Series Diagnostic Ultrasound System User Manual

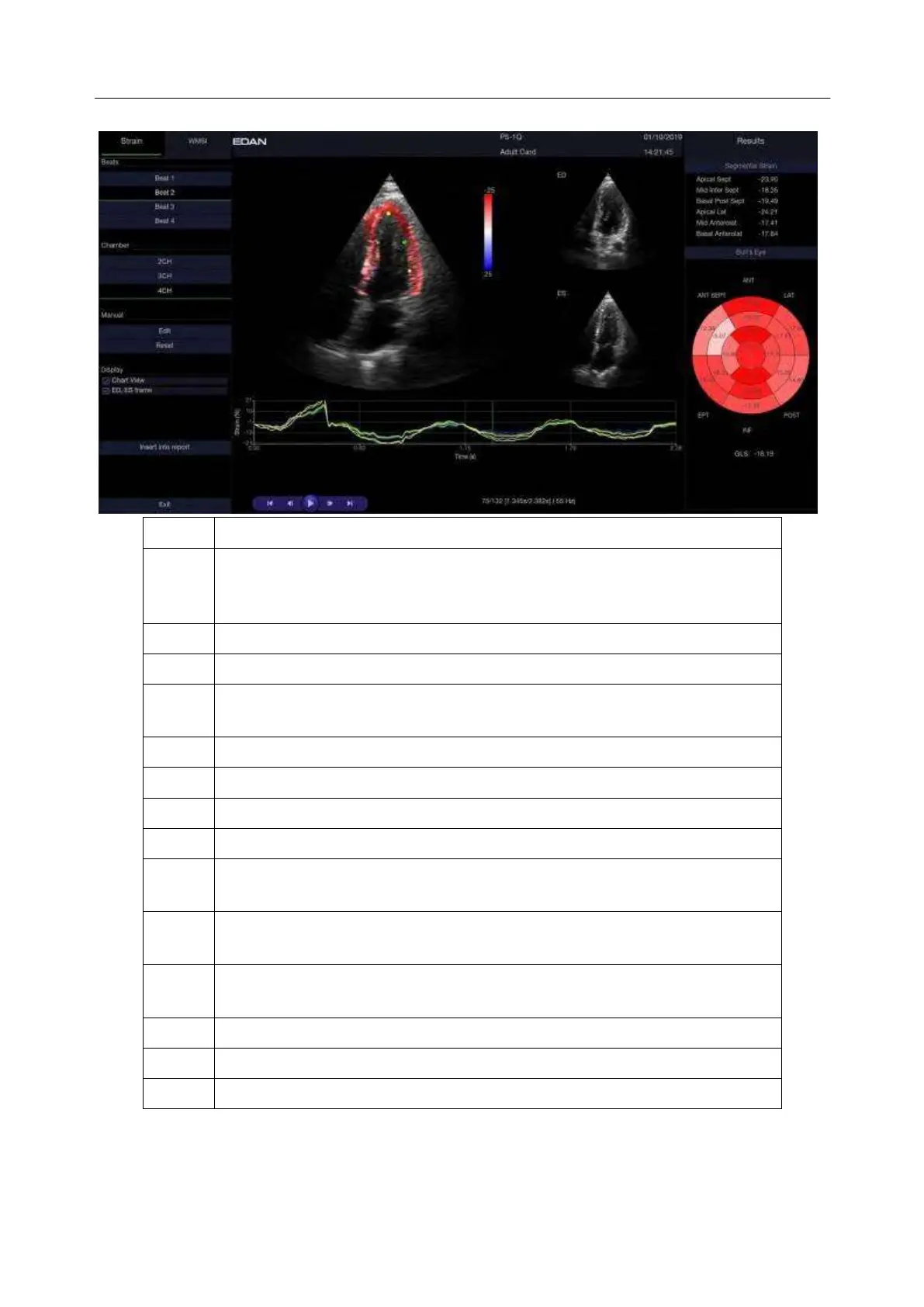

Understanding the Strain screen:
Show the heart beats. You may select a different heart beat to show its Strain
results. The EDV and ESV images(item 7) and Strain results(item 8) change
accordingly.
Edit the Strain results manually.
You may choose whether to display EDV and ESV images(item 7) and
Strain/Time graph(item 10).
Press to insert current Strain results into report.
LV borders. Each segment is represented by a different color.
Show the ultrasound image at EDV and ESV moment of current heart beat.
Bull's eye diagram with results indicated with colors. Red is normal, light red is
hypokinetic and blue is akinetic.
Strain/Time graph. The color of the line for each segment corresponds to the
border color of the segment.
Standard video controls: play/stop, previous frame, next frame, first frame, and
last frame.
Screen labels. Press to switch between Strain screen and SWMI screen.
Color bar. Red is normal, and blue akinetic.
