C HAPTER 29 | Congestion Control Commands
Automatic Traffic Control Commands
– 1024 –
USAGE GUIDELINES
ATC includes storm control for broadcast or multicast traffic. The control
response for either of these traffic types is the same, as shown in the
following diagrams.

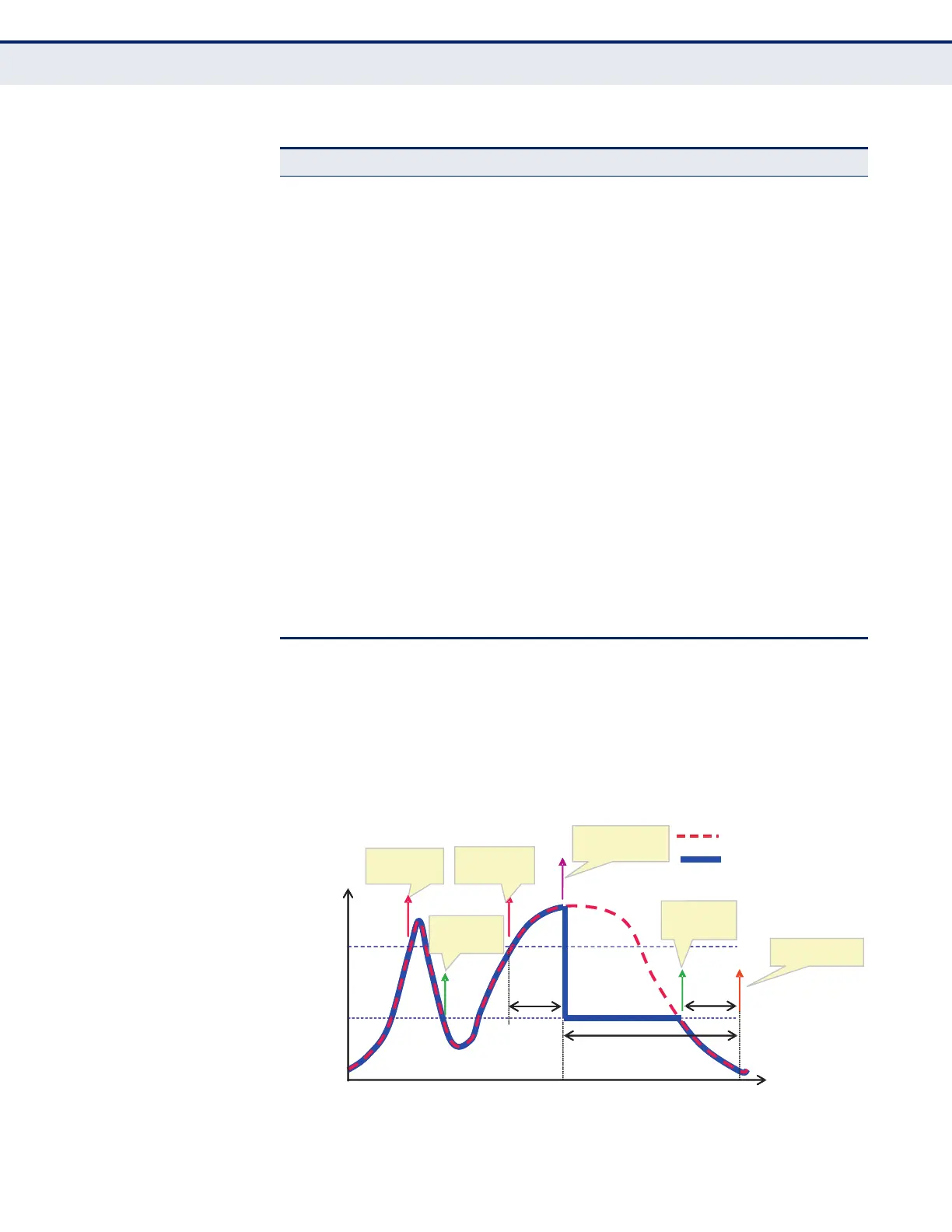

Figure 410: Storm Control by Limiting the Traffic Rate
snmp-server enable
port-traps atc
broadcast-control-
apply
Sends a trap when broadcast traffic exceeds the
upper threshold for automatic storm control and
the apply timer expires
IC (Port)
snmp-server enable
port-traps atc
broadcast-control-
release
Sends a trap when broadcast traffic falls
beneath the lower threshold after a storm
control response has been triggered and the
release timer expires
IC (Port)
snmp-server enable
port-traps atc
multicast-alarm-clear
Sends a trap when multicast traffic falls beneath
the lower threshold after a storm control
response has been triggered
IC (Port)
snmp-server enable
port-traps atc
multicast-alarm-fire
Sends a trap when multicast traffic exceeds the
upper threshold for automatic storm control
IC (Port)
snmp-server enable
port-traps atc
multicast-control-
apply
Sends a trap when multicast traffic exceeds the
upper threshold for automatic storm control and
the apply timer expires
IC (Port)
snmp-server enable
port-traps atc
multicast-control-
release
Sends a trap when multicast traffic falls beneath
the lower threshold after a storm control
response has been triggered and the release
timer expires
IC (Port)
ATC Display Commands
show auto-traffic-
control
Shows global configuration settings for
automatic storm control
PE
show auto-traffic-
control interface
Shows interface configuration settings and
storm control status for the specified port
PE
* Enabling automatic storm control on a port will disable hardware-level storm control
on the same port if configured by the switchport packet-rate command.
Table 119: ATC Commands (Continued)
Command Function Mode
Storm Alarm
FireTRAP
Alarm Fire
Threshold
（1～255kpps）
AlarmClear
Threshold
（1～255kpps）
Traffic
[kpps]
Time
Traffic without storm control
Traffic with storm control
Apply Timer
expired
(0～300sec)
Auto Storm Control
Release Timer
expired
(0～300sec)
Storm Alarm
FireTRAP
StromAlarm
ClearTRAP
TrafficControl
ApplyTrap
StromAlarm
ClearTRAP
TrafficControl
Release Trap
Storm Alarm
FireTRAP
Alarm Fire
Threshold
（1～255kpps）
AlarmClear
Threshold
（1～255kpps）
Traffic
[kpps]
Time
Traffic without storm control
Traffic with storm control
Apply Timer
expired
(0～300sec)
Auto Storm Control
Release Timer
expired
(0～300sec)
Storm Alarm
FireTRAP
StromAlarm
ClearTRAP
TrafficControl
ApplyTrap
StromAlarm
ClearTRAP
TrafficControl
Release Trap
