M588-08-880 Issue D
Page 76 © Edwards Limited 2017. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Exhaust silencer mounting assembly

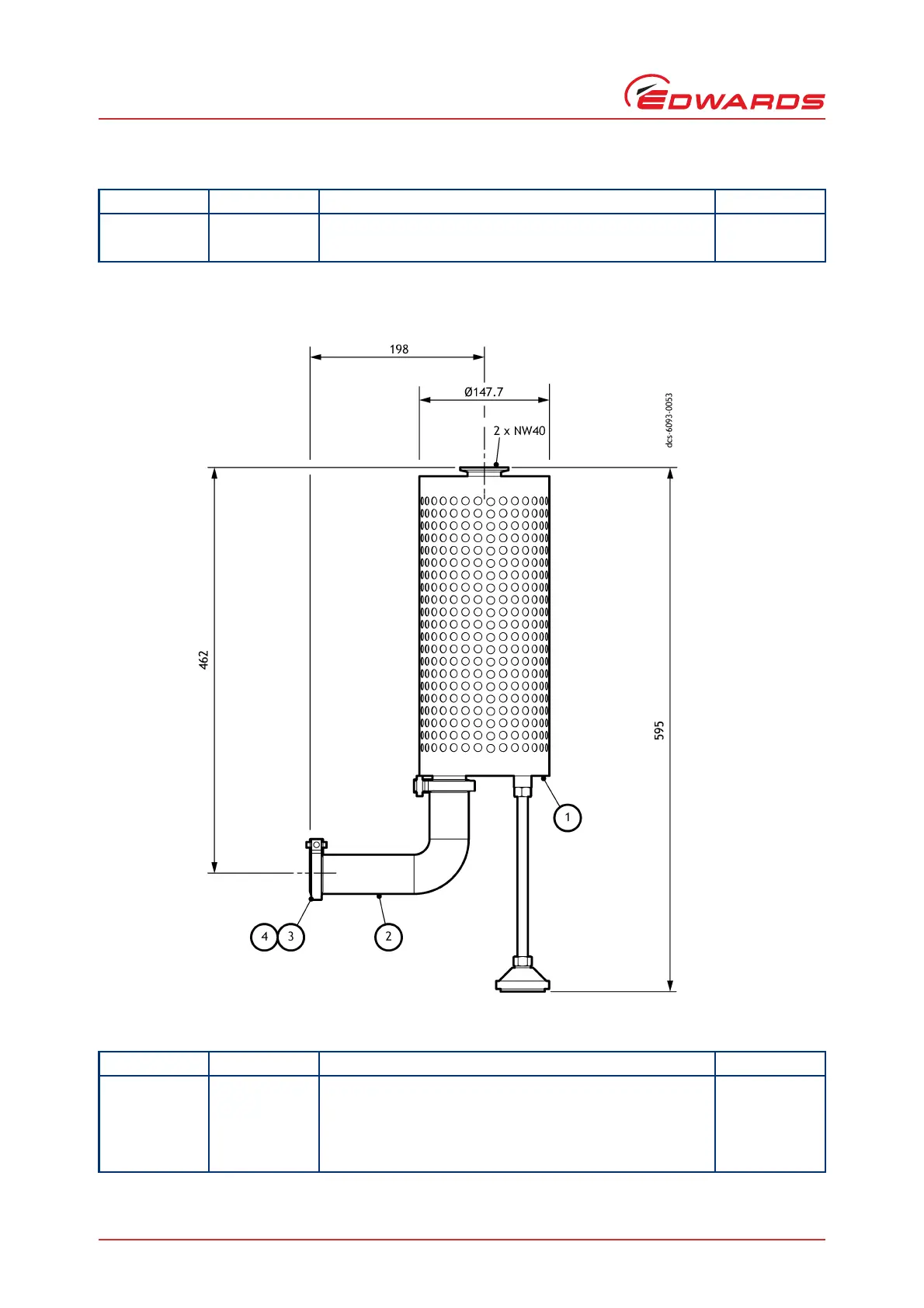

Figure 56 - M58808069 vertical silencer assembly - 100 ctr
8 3 NW50 clamping ring 
9 3 NW50 trapped O-ring - Viton / stainless steel 
Table 55 - M58808069 vertical silencer assembly - 100 ctr check list
Item QTY Description Check
11iF silencer 
2 1 NW40 elbow 149 x 98 
3 2 NW40 trapped O-ring - Viton 9830 / PTFE 
4 2 NW32/40 clamping ring 
Table 54 - M59808151 rear silencer horizontal mount - 150 ctr check list (continued)
Item QTY Description Check
