User Instructions Section 5847
Spec. Nos. 586505000 and 5865055000 (Model LMS1000) Issue AL, July 24, 2006
Chapter 2. Operating LMS1000 Page 2-7
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
FRONT OF SHELF
MAIN CABINET
EXPANSION CABINETS
FRONT OF SHELF
Located on Front of
Main LMS CPU Circuit Card
Located on Front of
Expansion LMS CPU Circuit Card
586505000 Shown
586505500 Similar
586505000 Shown
586505500 Similar
Figure 2-1

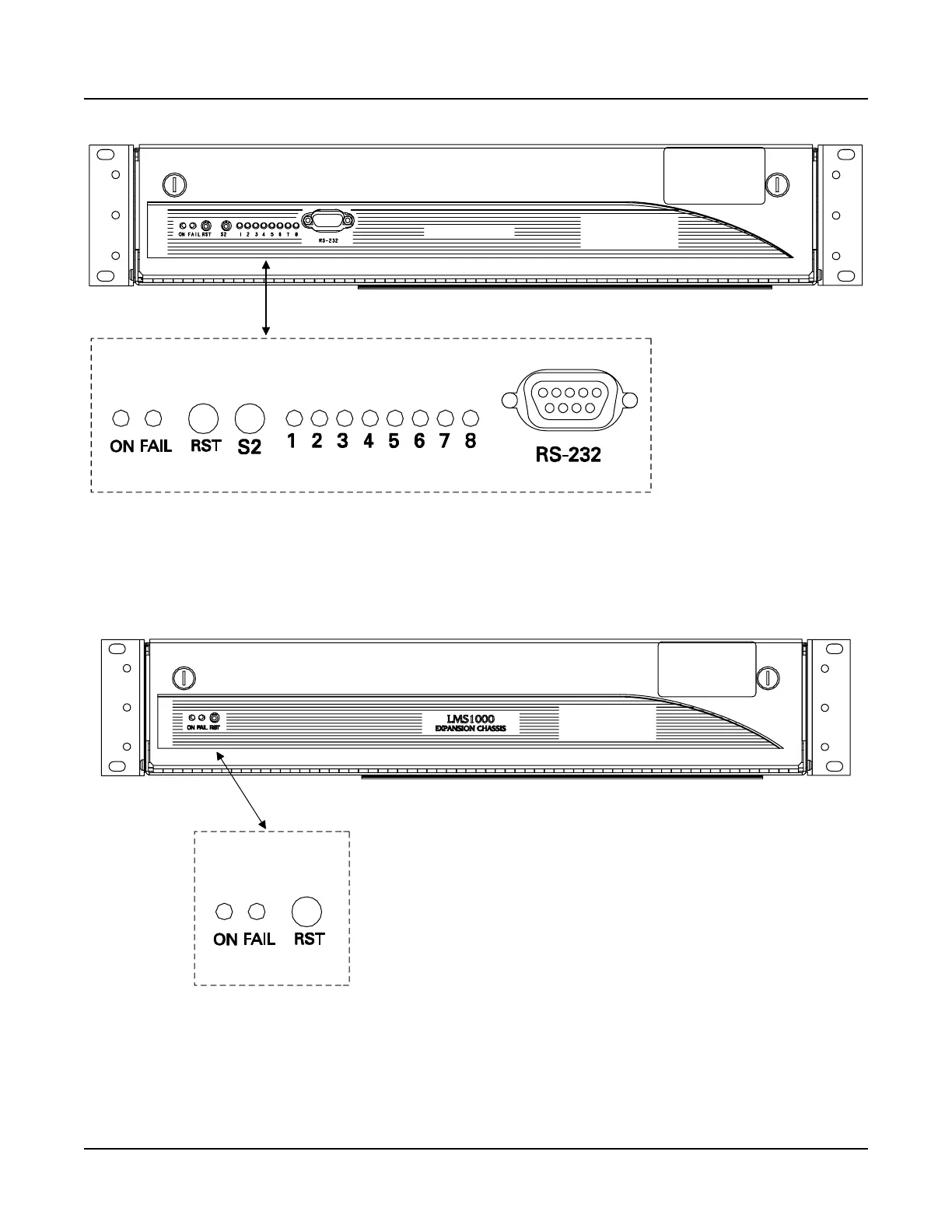

Controls and Indicators Locations (586505000/586505500 LMS Cabinet)
(Note that Spec. No. 582140000 LPS Power System does not use the
LMS Cabinets. The LMS is factory integrated into the LPS Power System.)
