User Instructions Section 5847
Spec. Nos. 586505000 and 5865055000 (Model LMS1000) Issue AL, July 24, 2006
Chapter 2. Operating LMS1000 Page 2-51
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

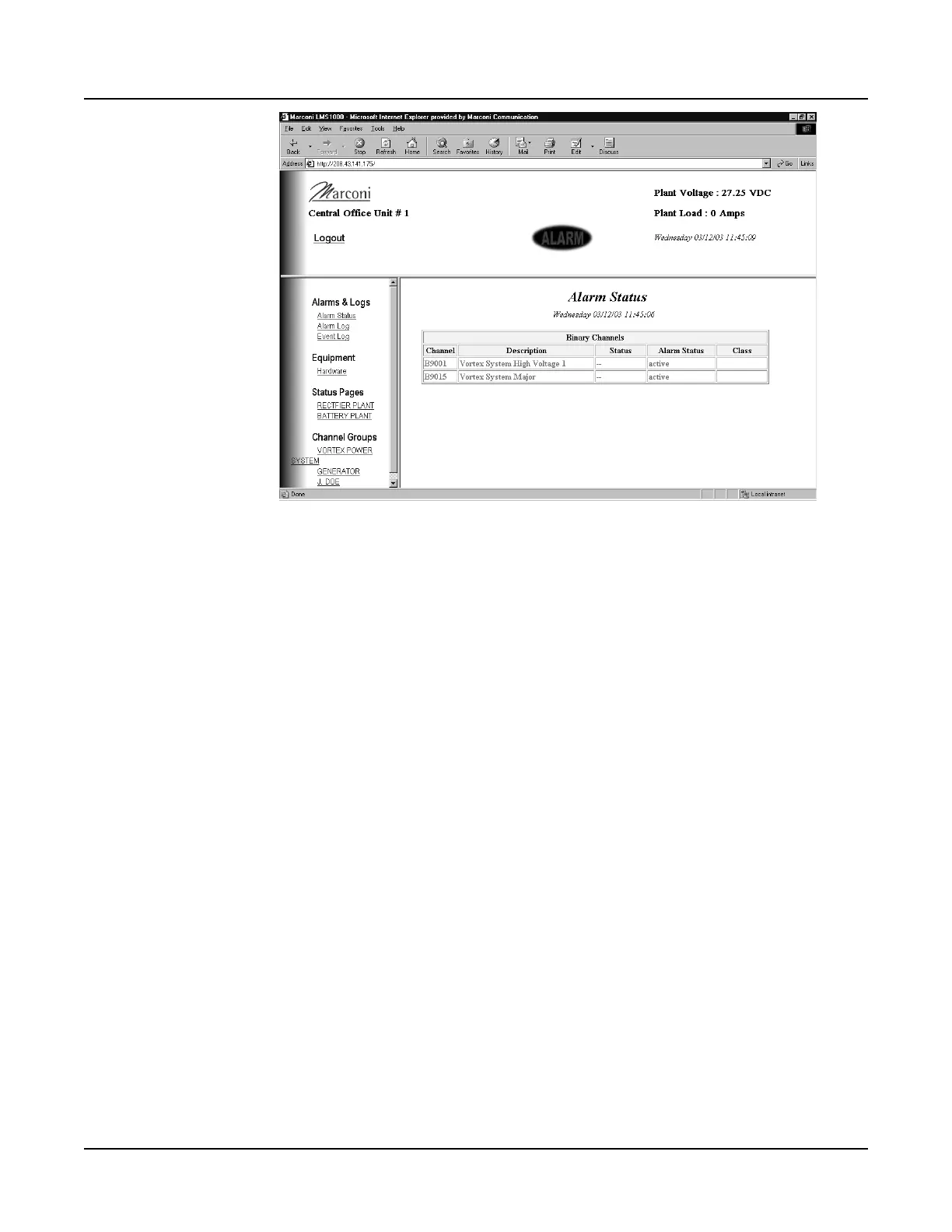

Three-Pane WEB Interface Window
4) The Top Pane displays the Unit Name and values of the Plant Voltage and Plant
Current LMS Channels. An ALARM message displays if there are active alarms in
the LMS.
5) Click on an item in the Left Pane to display its status in the Right Pane.
Note: Entries under Status Pages and Channel Groups only appear if properly
configured in the LMS, as previously explained under "Advance Setup"
What Do I Need, How Do I Order?
• Netscape Navigator, v4.0 or later
or
Microsoft Internet Explorer, v4.0 or later
• Order 586505000/586505500 List 81, and have an Emerson Network Power Service
Center load the new firmware into your LMS. Firmware can be upgraded via the
Ethernet, Modem, or Local Port.
Note: If you have an LMS1000 with firmware version earlier than 2.1.0.6, you must
replace the entire CPU circuit card. Earlier versions are not software
upgradeable.
