SA (Security Association)
IKE(InternetKeyExchange)isconguredintwonegotiations.
Phase1authenticatestheVPNClientstoeachotherby
conrmingthematchingPre-SharedKeywiththetwogateways.
IPSecisthePhase2oftheVPNprocess.

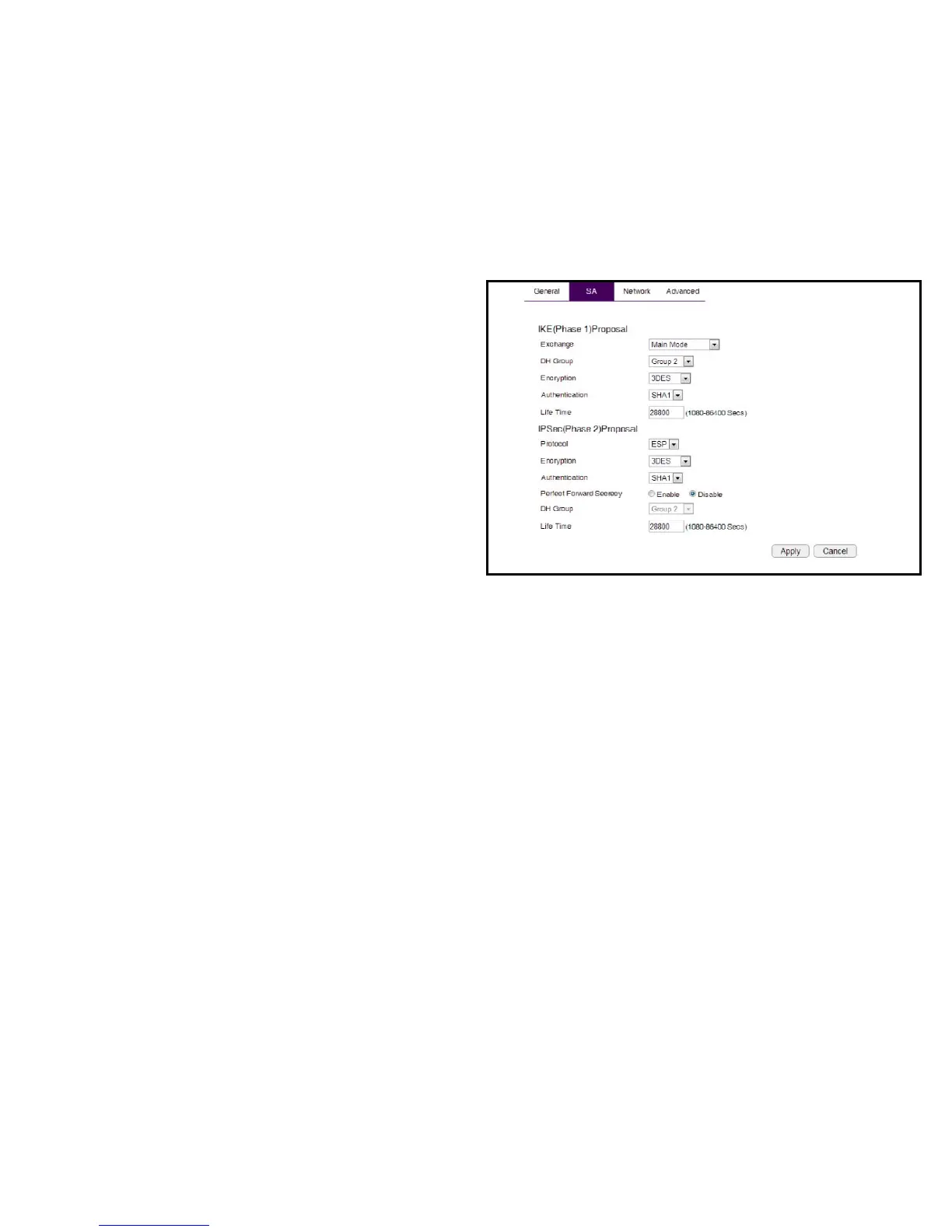

Manually conguring a VPN tunnel prole.
IKE (Phase 1) Proposal
Exchange:Clickthedrop-downmenutoselectthetypeof
exchange(MainMode,AggressiveMode).
DH Group:Clickthedrop-downmenutoselecttheDHgroup
(group1,group2,group5,group14).
Encryption: Clickthedrop-downmenutoselectthetypeof
encryption(DES,3DES,AES128,AES192,AES256).
Authentication: Clickthedrop-downmenutoselectthe
authenticationprotocol(MD5,SHA1).
Life Time: Enter the life time value for Phase 1. The life time
valueshouldbegreaterthanPhase2(IPSec).86400sec.(1day)
is a common default and is a normal value for Phase 1.
IPSec (Phase 2) Proposal
Protocol: Clickthedrop-downmenutoselecttheprotocoltype
(ESP,AH)
Encryption: Clickthedrop-downmenutoselectthetypeof
encryption(DES,3DES,AES128,AES192,AES256).
Authentication: Clickthedrop-downmenutoselectthe
authenticationprotocol(MD5,SHA1).
Perfect Forward Secrecy (PFS):SelectenabletoenablePFS.A
freshDHkeyisgeneratedduringIKEphaseIIandrenewedfor
eachkeyexchangetoeliminatedependenciesbetweenthe
keys.
DH Group: Clickthedrop-downmenutoselecttheDHgroup
(group1,group2,group5,group14).
Life Time: Enter the life time value for Phase 2. The life time
valueshouldbesmallerthanPhase1(IKE).3600sec.(1hour)
is a common value for Phase 2.
Apply: ClickApply to save the changes.
Cancel:ClickCancel to delete the changes.
