Operation of the system
Function buttons
48

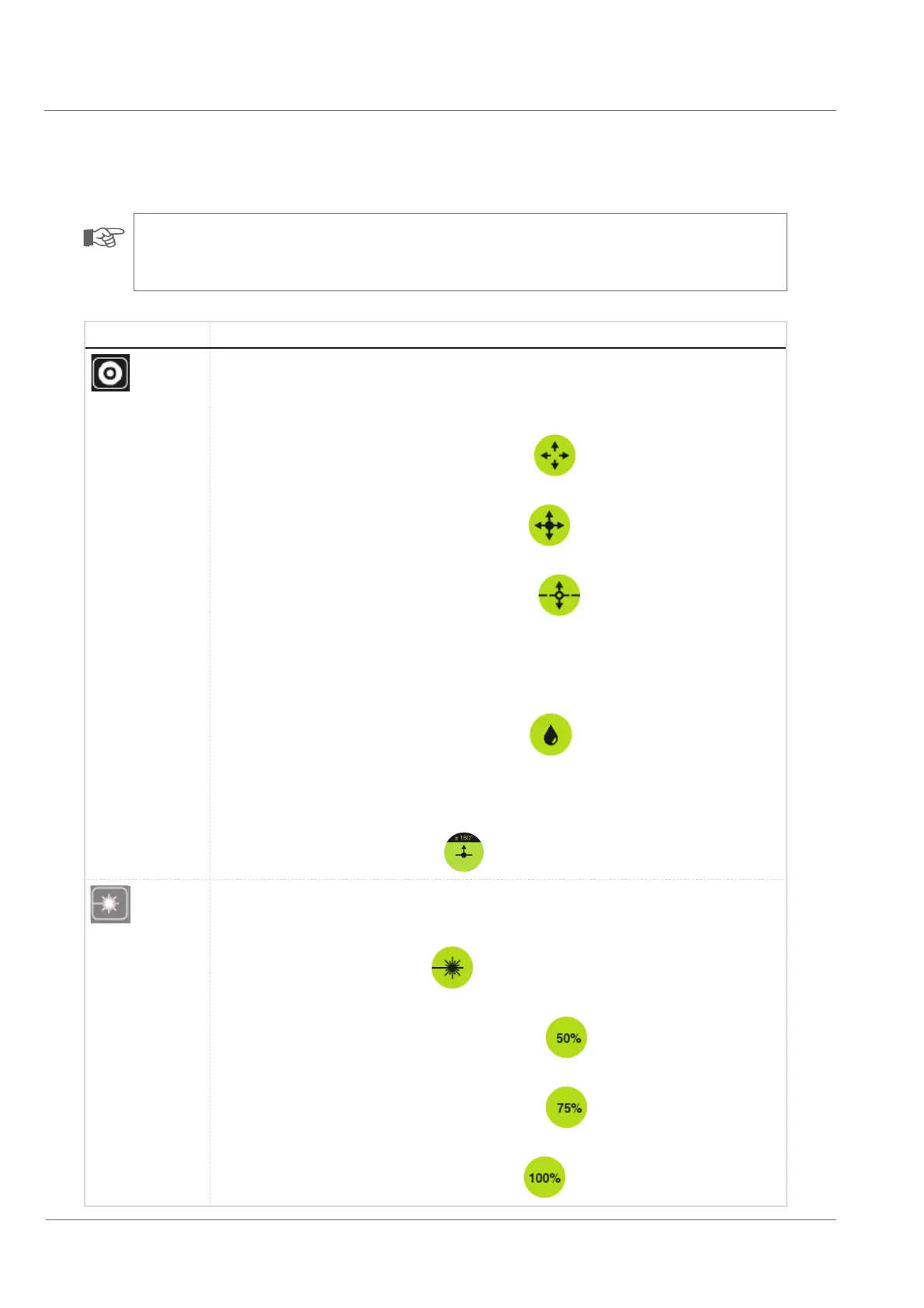

The following function buttons are available on page 1 of the camera menu:
NOTE!
The different camera operation modes depend on the connected camera and can only be activated when the respecitve camera is
connected.
Function Description
Camera operation modes
Behavior of the camera head with regard to panning and tilting
• For operating the camera head in the standard mode press
.
The camera head follows the standard joystick control.
• For selecting the position mode of the camera head press
(PTP70 II only).
In position mode the camera head's movements are synchronized with the joystick movements.
• For selecting the horizontal mode of the camera head press
.
Panning and automatic horizontal alignment are always activated. Tilting is disabled.
When activating the horizontal mode the camera is automatically adjusted on the horizontal level, depending on
the crawler inclination (+/-12°).
• For selecting the cleaning mode of the camera head press
(PTP70 II only).
The camera is moved to the rear upper position to 135°.
• For changing the display of camera rotation from -180° to 0° on the left side and from 0° to +180° on the
right side to a display of 360 degrees press
360°
.
Laser intensity
Provided that the connected camera module has an integrated laser it can be switched on and off with the function
button. The laser intensity at system start corresponds to the last value set.
• For switching the laser on or off press
.
• For setting the intensity of the total luminance to 50 % press
.
• For setting the intensity of the total luminance to 75 % press
.
• For setting the intensity of the total luminance to 100 %
.
