Operation of the system
System Settings
63

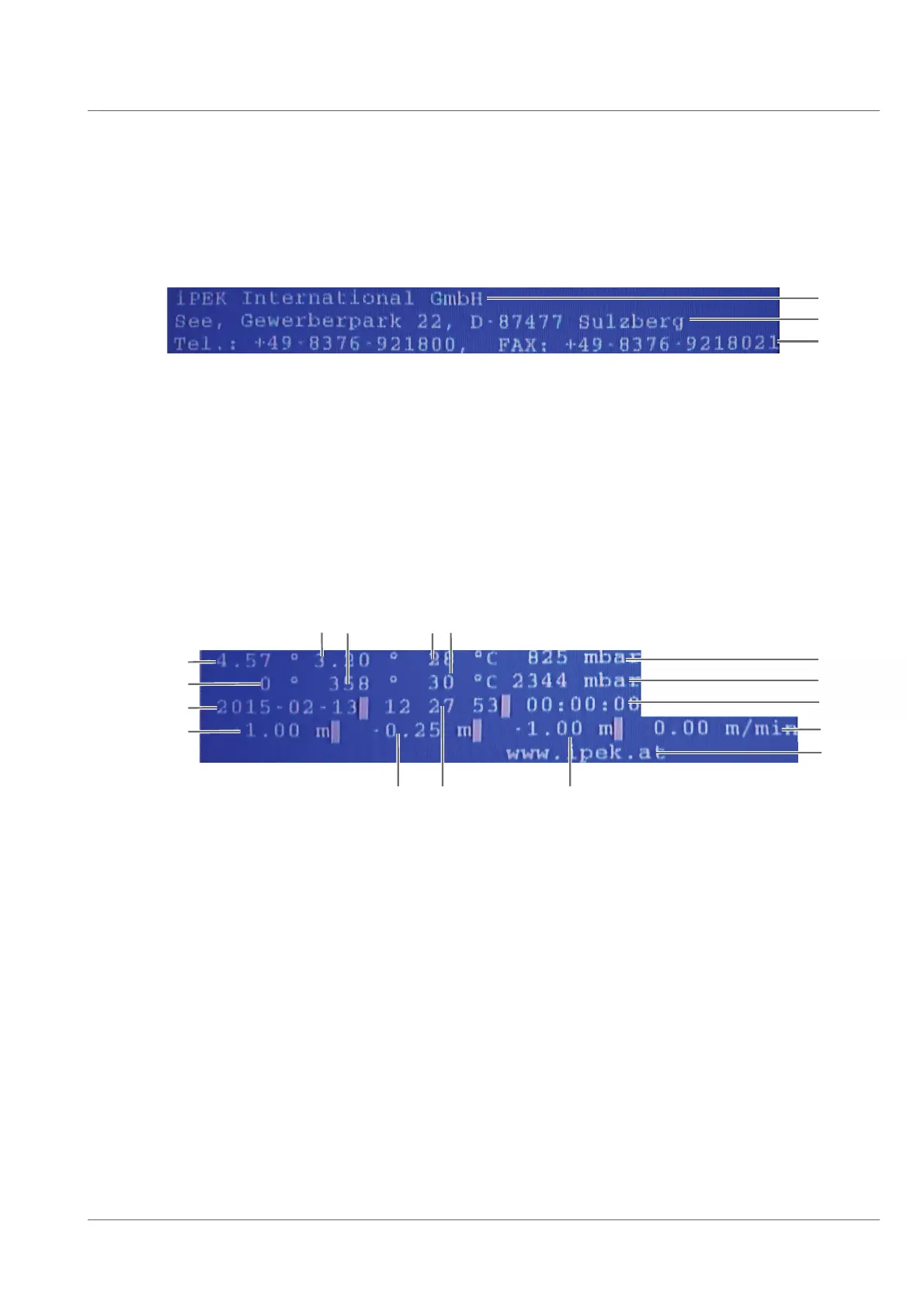

Here the following information which is to be displayed on the external monitor can be visualized.
Text display on the upper part of the monitor (descriptions correspond to those displayed on the DCX5000):
1
2
3
1 Line 1
2 Line 2
3 Line 3
Text display on the lower part of the monitor (descriptions correspond to those displayed on the DCX5000):
1
2
3
4
5
6
78
9
10
13
14
15
16
11
12
1 Crawler pressure
2 Camera pressure
3 Video time
4 Speed
5 Footer
6 SAT Distance Counter
7 Time
8 Section Distance Counter
9 Total Distance Counter
10 Date
11 Camera tilt
12 Crawler Roll
13 Crawler Pitch
14 Camera Pan
15 Crawler Temperature
16 Camera Temperature
