Projector Parts and Functions
15
The following sections explain the projector parts and their functions.
All of the features in this guide are explained using illustrations of EB‑L735U
unless otherwise mentioned.
The shape of the projector part may vary depending on the model of your
projector.
gg Related Links
• "Projector Parts - Front/Top" p.15
• "Projector Parts - Rear" p.16
• "Projector Parts - Base" p.17
• "Projector Parts - Interface Ports" p.17
• "Projector Parts - Control Panel" p.18
• "Projector Parts - Remote Control" p.19

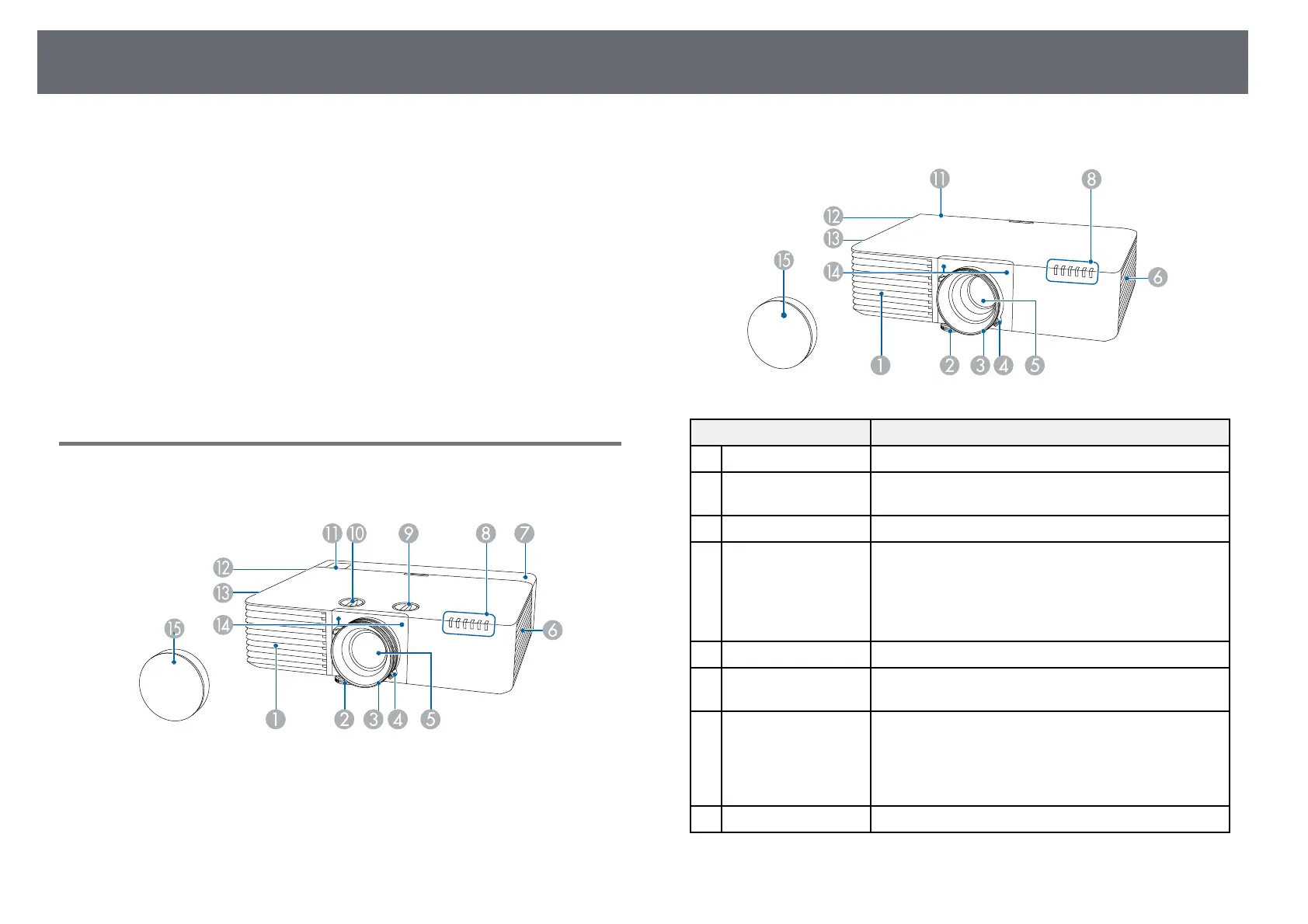

Projector Parts - Front/Top
EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U
EB‑L720U/EB‑L520U
Name Function
A
Air intake vent Takes in air to cool the projector internally.
B
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
C
Focus ring Adjusts the image focus.
D
Zoom ring
(EB‑L735U/EB‑L730U
/EB‑L720U/EB‑L630U
/EB‑L530U/EB‑L520U
)
Adjusts the image size.
E
Lens Images are projected from here.
F
Air intake vent (air
filter)
Takes in air to cool the projector internally.
G
Cable cover
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
Cover for the rear interface ports section.
Loosen the two screws and pull the cover off when
connecting cables for external devices or installing the
wireless LAN module.
H
Indicators Indicates the projector's status.
To Next Page
