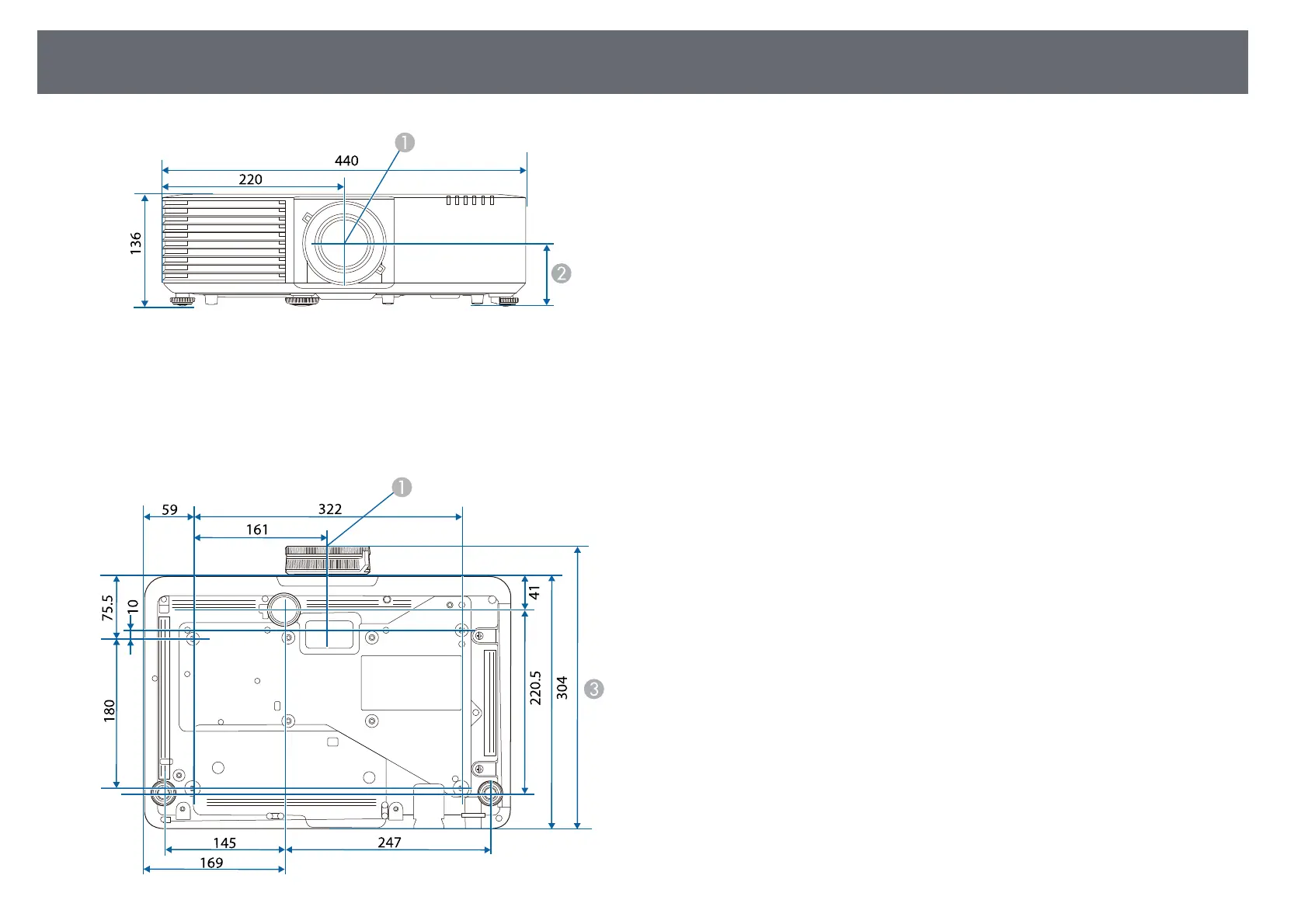

External Dimensions

256

Center of lens

Distance from center of lens to suspension bracket fixing point: 74 mm

EB‑L735U/EB‑L730U/EB‑L720U/EB‑L630U/EB‑L530U/EB‑L520U: 339 mm

EB‑L635SU/EB‑L630SU: 334 mm

The unit in these illustrations is mm.
