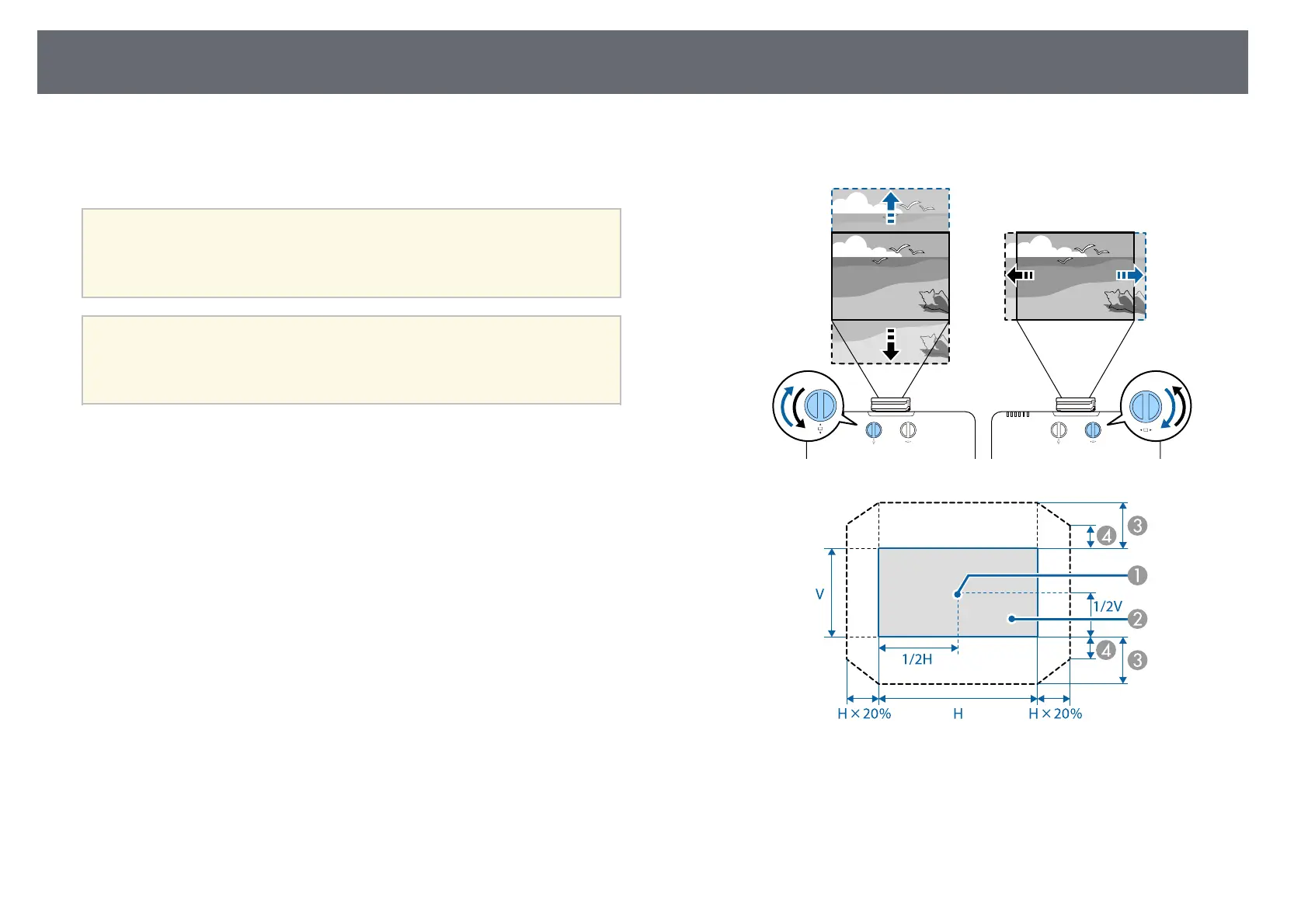

Adjusting the Image Position Using Lens Shift
53
If you cannot install the projector directly in front of the screen, you can
adjust the position of the projected image using the lens shift feature
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U).
Attention
When adjusting the image position with the vertical lens shift, adjust it by moving
the image from the bottom to the top. If you adjust it from the top to the bottom,
the image position may move down slightly after adjusting.
a
• Wait 20 minutes after turning on the projector before setting the
focus, zoom, and lens shift for maximum accuracy.
• Keep the vertical and horizontal lens shift dials in their center
positions for the clearest picture.
a
Turn on the projector and display an image.
b
Turn the vertical and horizontal lens shift dials on the projector to
adjust the position of the projected image as necessary.
A
Center of lens
B
Projected image when the lens is set to the home position
C
Maximum range: V × 50%
D
When the horizontal direction is at the maximum value: V × 12%
To Next Page
