Projector Parts and Functions
17

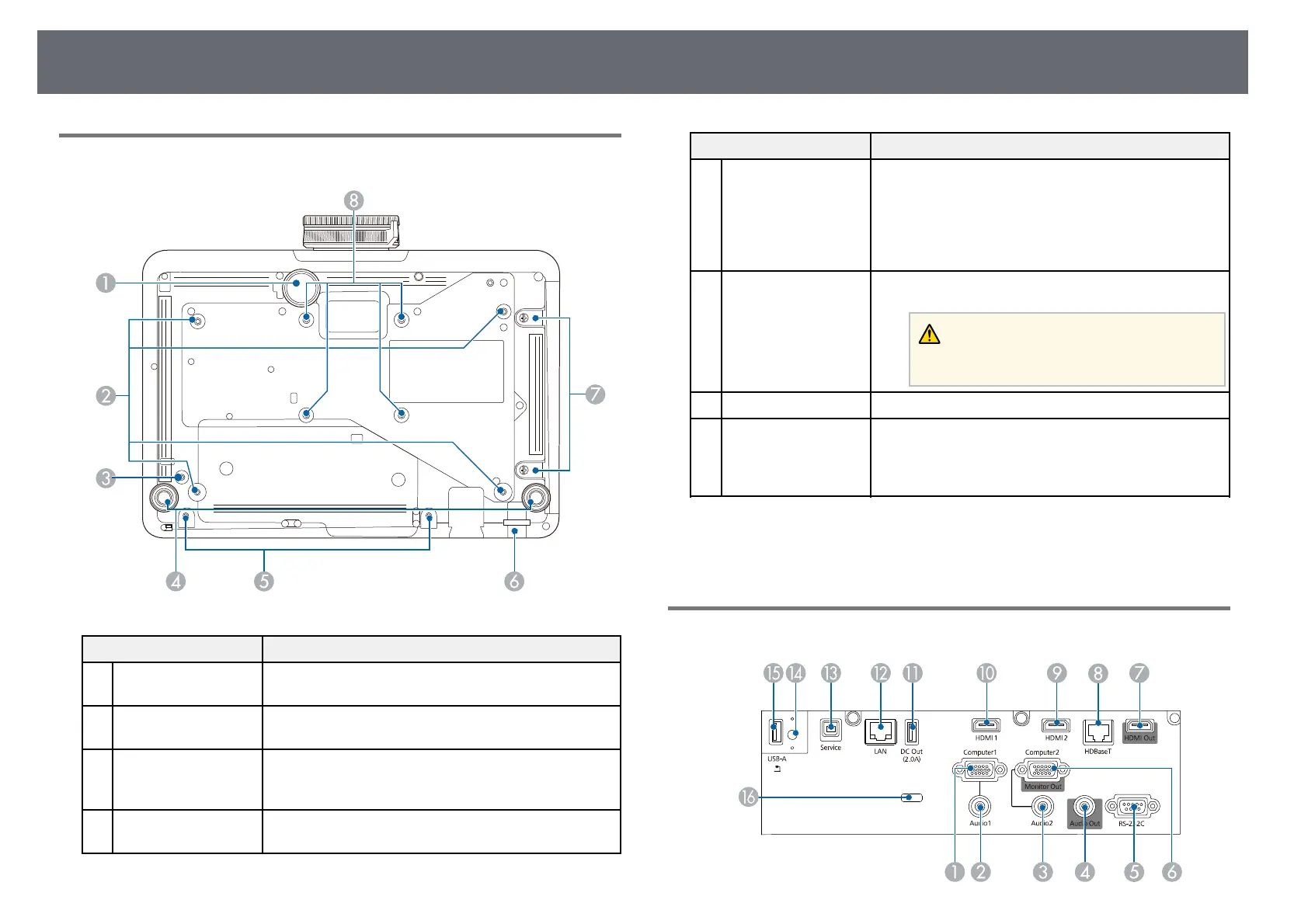

Projector Parts - Base
Name Function
A
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
B
Ceiling mount fixing
points (four points)
Attach the optional ceiling mount here when
suspending the projector from a ceiling.
C
Wire clamp fixing
point
When you use the optional ceiling mount, fix the
carabiner here to attach the safety wire and prevent the
projector from falling from the ceiling or wall.
D
Rear feet When setup on a surface such as a desk, turn to extend
and retract to adjust the horizontal tilt.
Name Function
E
Screw holes for cable
cover
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
Screw holes to fix the cable cover in place.
F
Security cable
attachment point
Pass a commercially available wire lock through here
and lock it in place.
Warning
Do not attach the safety wire to this point.
G
Air filter cover screws Screws to fix the air filter cover in place.
H
Fixing points (four
points)
Use these points to attach a commercially available
mount compatible with the VESA Mounting Interface
Standard (100 × 100 mm) when installing the projector
on a wall, or suspending the projector from a ceiling.
gg Related Links
• "Installing a Security Cable" p.128
Projector Parts - Interface Ports
