Using ESC/VP21 Commands
170
You can control the projector from an external device using ESC/VP21.
gg Related Links
• "ESC/VP21 Command List" p.170
• "Cable Layouts" p.170
ESC/VP21 Command List
When the power ON command is transmitted to the projector, the power
turns on and it enters warm-up mode. When the projector's power has turned
on, a colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and returns a
":", and then accepts the next command.
If the command being processed terminates abnormally, an error message is
output and a ":" is returned.
You can check the available commands in the projector's Specifications.
gg Related Links
• "Getting the Latest Version of the Documents" p.10
Cable Layouts
Serial connection
• Connector shape: D-Sub 9-pin (male)
• Projector input port name: RS-232C
• Cable type: Crossover (null modem) cable

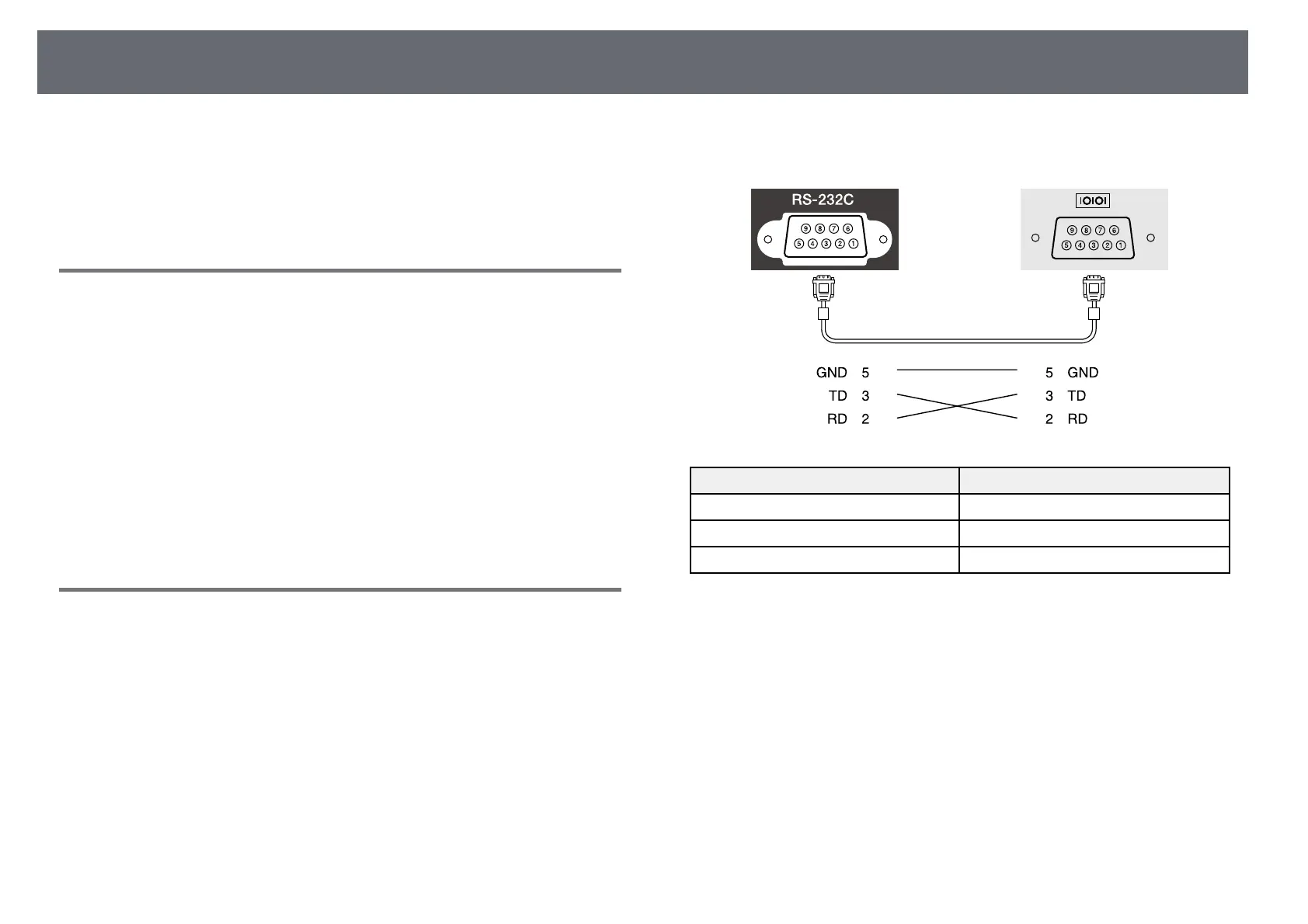

In the following illustration, the projector side is shown on the left, and the
computer side on the right:
Signal name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Communications protocol
• Default baud rate setting: 9600 bps
• Data length: 8 bit
• Parity: None
• Stop-bit: 1 bit
• Flow control: None
