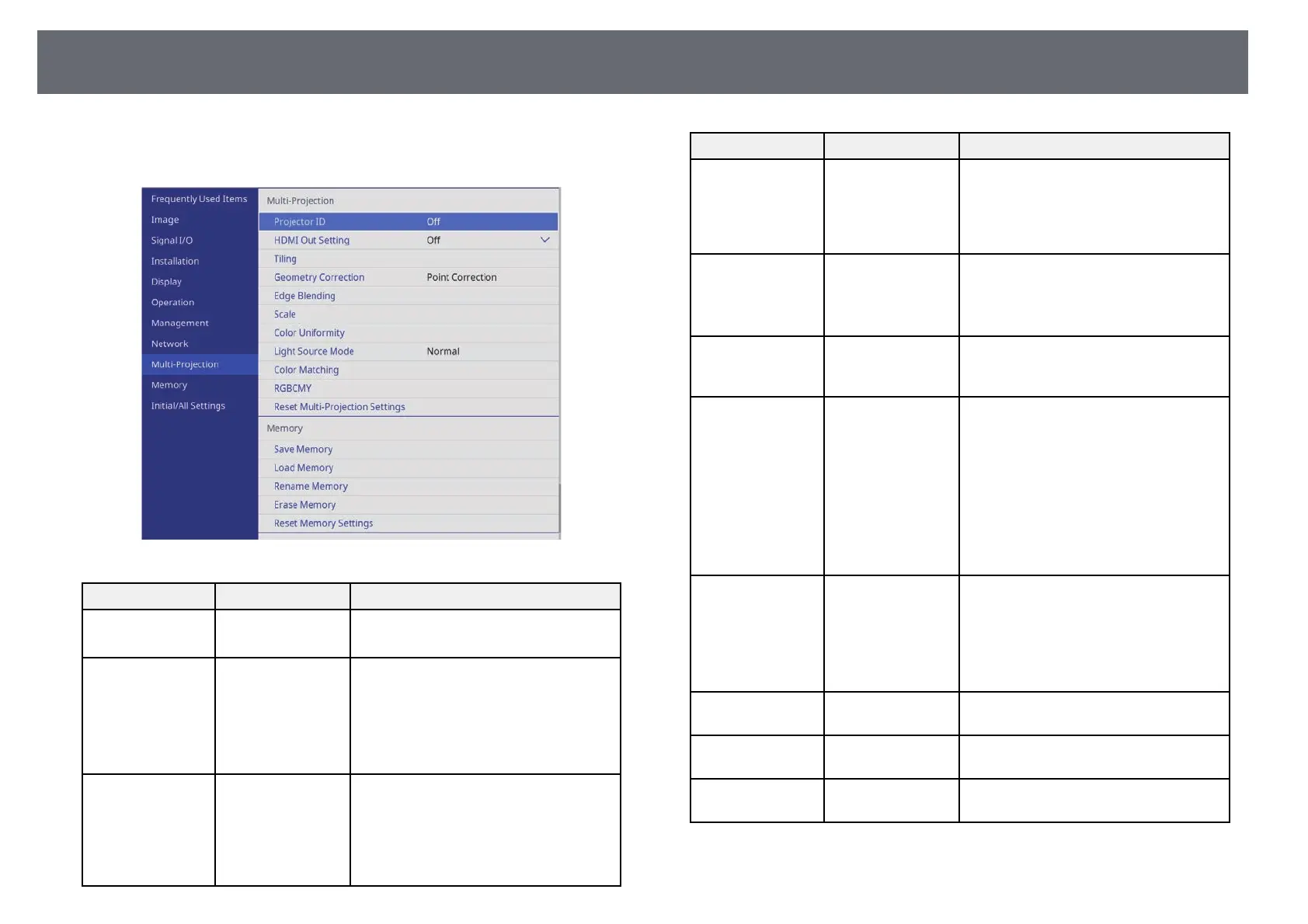

Multiple Projector Operation Settings - Multi-Projection Menu
203
Settings on the Multi-Projection menu let you set up multiple projectors to
project a single unified image.
Setting Options Description
Projector ID Off
1 through 9
Assigns an ID for the projector when you
use multiple projectors.
HDMI Out Setting
(EB‑L735U/EB‑L73
0U/EB‑L635SU/EB‑
L630SU/EB‑L630U/
EB‑L530U)
Off
Pass Through
Set to Pass Through to enable up to 4
projectors connected via HDMI cables to
project a unified image.
When you select Pass Through, you can
project images only from HDMI1,
HDMI2, or HDBaseT sources.
Number of
Projectors
(EB‑L735U/EB‑L73
0U/EB‑L635SU/EB‑
L630SU/EB‑L630U/
EB‑L530U)
2 to 4 Sets the number of projectors used to
create a unified image area.
Setting is only displayed when HDMI
Out Setting is set to Pass Through.
Setting Options Description
Order
(EB‑L735U/EB‑L73
0U/EB‑L635SU/EB‑
L630SU/EB‑L630U/
EB‑L530U)
1 to 4 Sets the position of this projector in
number order from left to right.
Setting is only displayed when HDMI
Out Setting is set to Pass Through.
Tiling Layout
Location Setup
Sets the number of split screens and the
position of each image.
Setting is only displayed when HDMI
Out Setting is set to Off.
Geometry
Correction
— See the Installation menu table for
details on the Geometry Correction
settings.
Edge Blending Edge Blending
Top Edge
Bottom Edge
Left Edge
Right Edge
Line Guide
Pattern Guide
Guide Color
Blends the border between multiple
images to create a seamless screen.
Black Level Color Adjustment
Area Correction
Reset
Adjusts the black color of the
overlapping image area.
This setting is only displayed when
Blending is set to On for the Top Edge,
Bottom Edge, Left Edge, or Right Edge
setting.
Scale — See the Image menu table for details on
the Scale settings.
Color Uniformity — See the Management menu table for
details on the Color Uniformity settings.
Light Source Mode — See the Operation menu table for details
on the Light Source Mode settings.
