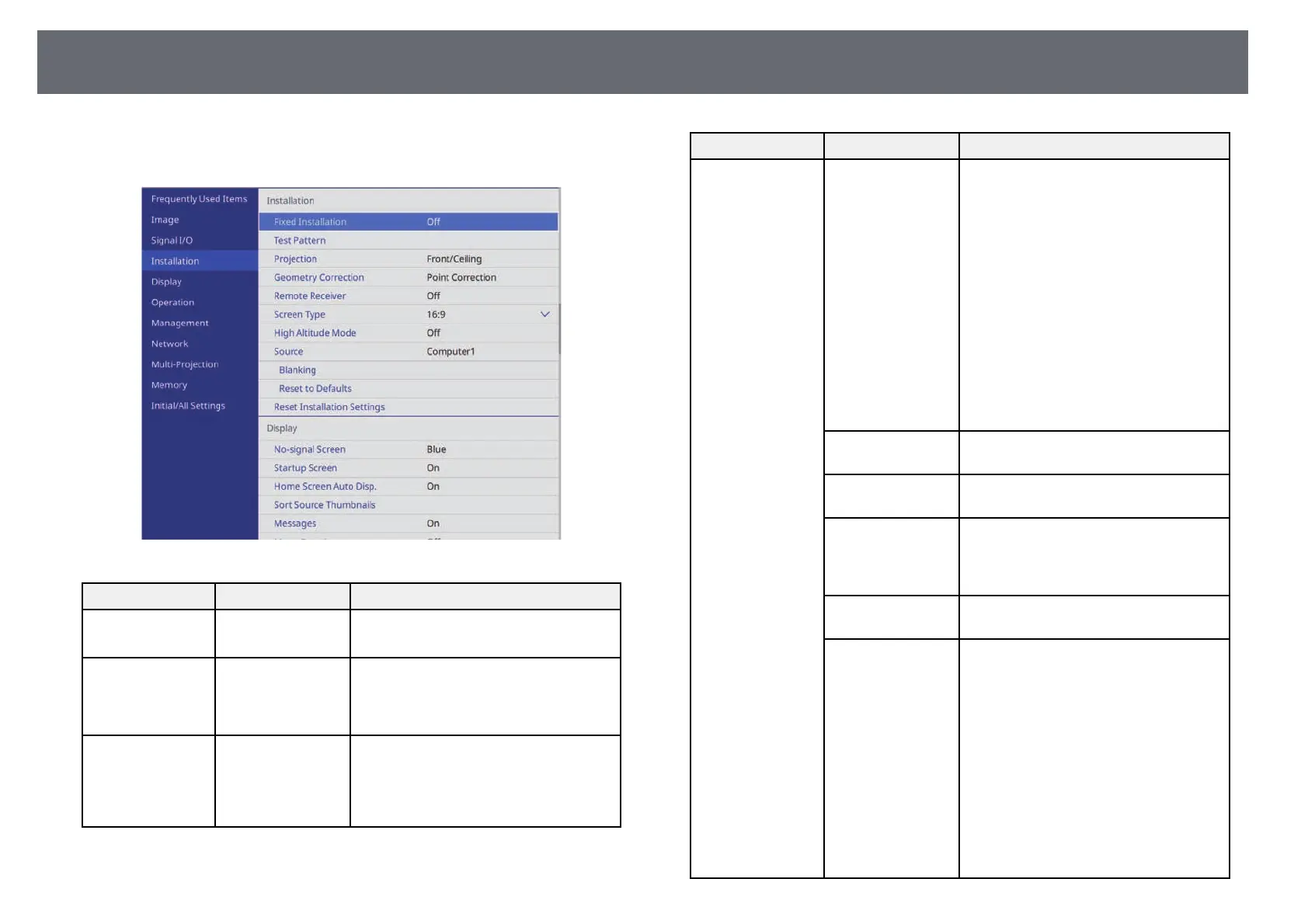

Projector Installation Settings - Installation Menu
185
Settings on the Installation menu help you set up your projector in your
installation environment.
Setting Options Description
Fixed Installation On
Off
Set to On if you installed the projector in
a fixed location.
Test Pattern — Displays a test pattern to assist in
focusing and zooming the image and
correcting image shape (press the [Esc]
button to cancel pattern display).
Projection Front
Rear
Front/Ceiling
Rear/Ceiling
Sets the way the projector faces the
screen so the image is oriented correctly.
Setting Options Description
Geometry
Correction
H/V-Keystone Manually corrects horizontal and vertical
sides.
V-Keystone: lets you manually correct
vertical side.
V-Balance: lets you manually correct
vertical balance.
H-Keystone: lets you manually correct
horizontal side.
H-Balance: lets you manually correct
horizontal balance.
V-Balance and H-Balance are available
with
EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L6
30SU/EB‑L630U/EB‑L530U only.
Quick Corner Corrects image shape and alignment
using an on-screen display.
Arc Correction Corrects the corners and sides of an
image projected on a curved surface.
Point Correction Divides the projected image into a grid
and corrects the distortion by moving the
selected point of intersection from side to
side and up and down.
Off Temporarily cancels the geometry
correction.
Memory Save customized sets of settings to
memory.
• Save Memory: saves the current shape
of an image you have adjusted.
• Load Memory: loads the settings you
made and saved.
• Rename Memory: changes the name
of the memory settings.
• Erase Memory: deletes a saved
memory.
• Reset Memory: Resets all saved
memories.
To Next Page
