Epson RC620 CU - Controller Statuses Preservation; Date; Time

Setup & Operation 14. Option : Teach Pendant TP1
RC620 Rev.8 113

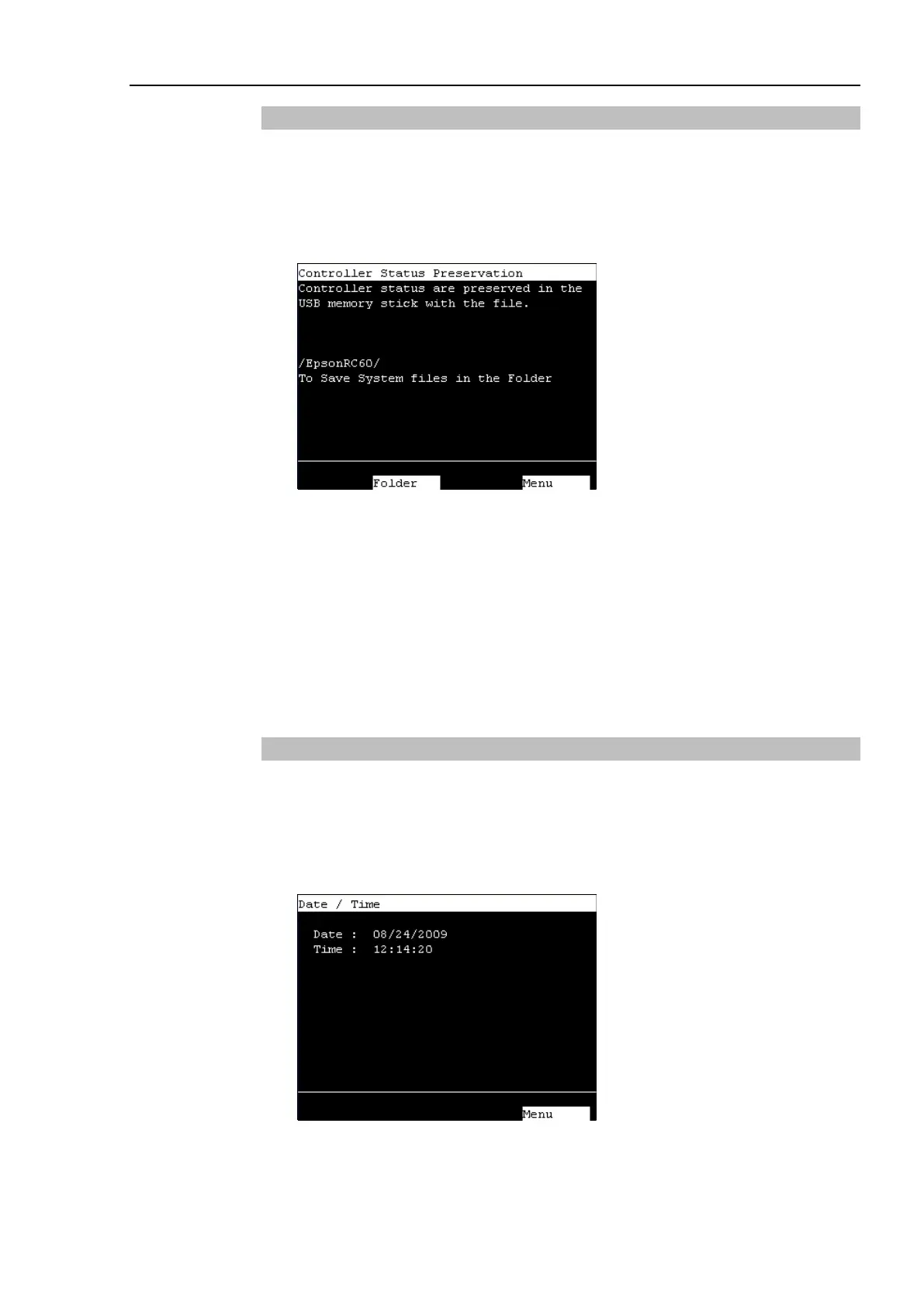

14.4.6 Controller Statuses Preservation
Indicate the procedure to save the status of the Controller to the USB memory.
(1) Insert the USB memory into the Controller.
(2) In the [Main Menu] screen, move the cursor to [5 Controller States...], and press the
<OK> key.
<F2>
The [Folder select] screen appears.
<F4>
Returns to the [Main Menu] screen.
(3) Press the <F2> key. Select a folder to save the data.
The root directory is selected by default.
(4) Press the <OK> key to save the status.
(5) Press the <OK> key again to return to the [Main Menu] screen.
14.4.7 Date / Time
This screen displays the Controller's date and time.
(1) In the [Main Menu] screen, move the cursor to [6 Date / Time], and press the <OK>
key.
(2) Able to check the date and time.
<F4>
Returns to the [Main Menu] screen.
