Maintenance 4. Backup and Restore
136 RC620 Rev.8

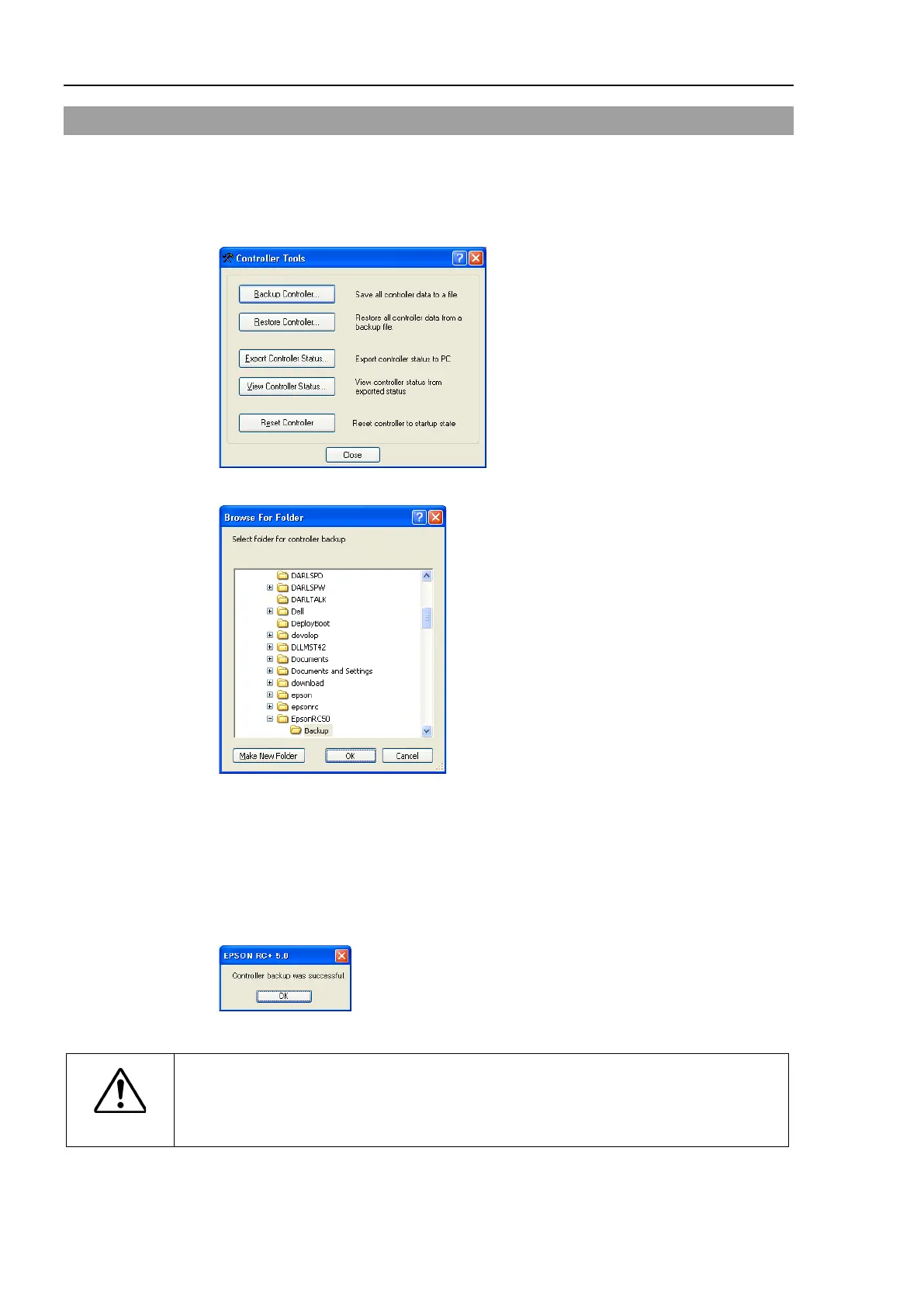

4.3 Backup
Backup the Controller status from the Teach Pendant (Option) or EPSON RC+ 6.0.
(1) Select EPSON RC+ 6.0 menu ｜ Tools | Controller to display the [Controller Tools]
dialog.
(2) Click the <Backup Controller…> button to display the [Browse For Folder] dialog.
(3) Specify the folder to save the backup data. Create a new folder if desired.
(4) Click the <OK> button. A folder is created in the specified folder containing the
backup data with a name in the following format.
B_ serial number_date status was saved
→ Example: B_12345_200608074410
(5) The following message appears when backup is completed.
(6) Click the <OK> button to complete the backup.
CAUTION
■
Do not edit the backup files. Otherwise, operation of the robot system after data
restoration to the Controller is not assured.
