Epson RC620 CU - CF (Compact Flash)

Maintenance 6. Maintenance Parts Replacement Procedures
186 RC620 Rev.8
6.5 CF (Compact Flash)
CF
(Compact Flash)

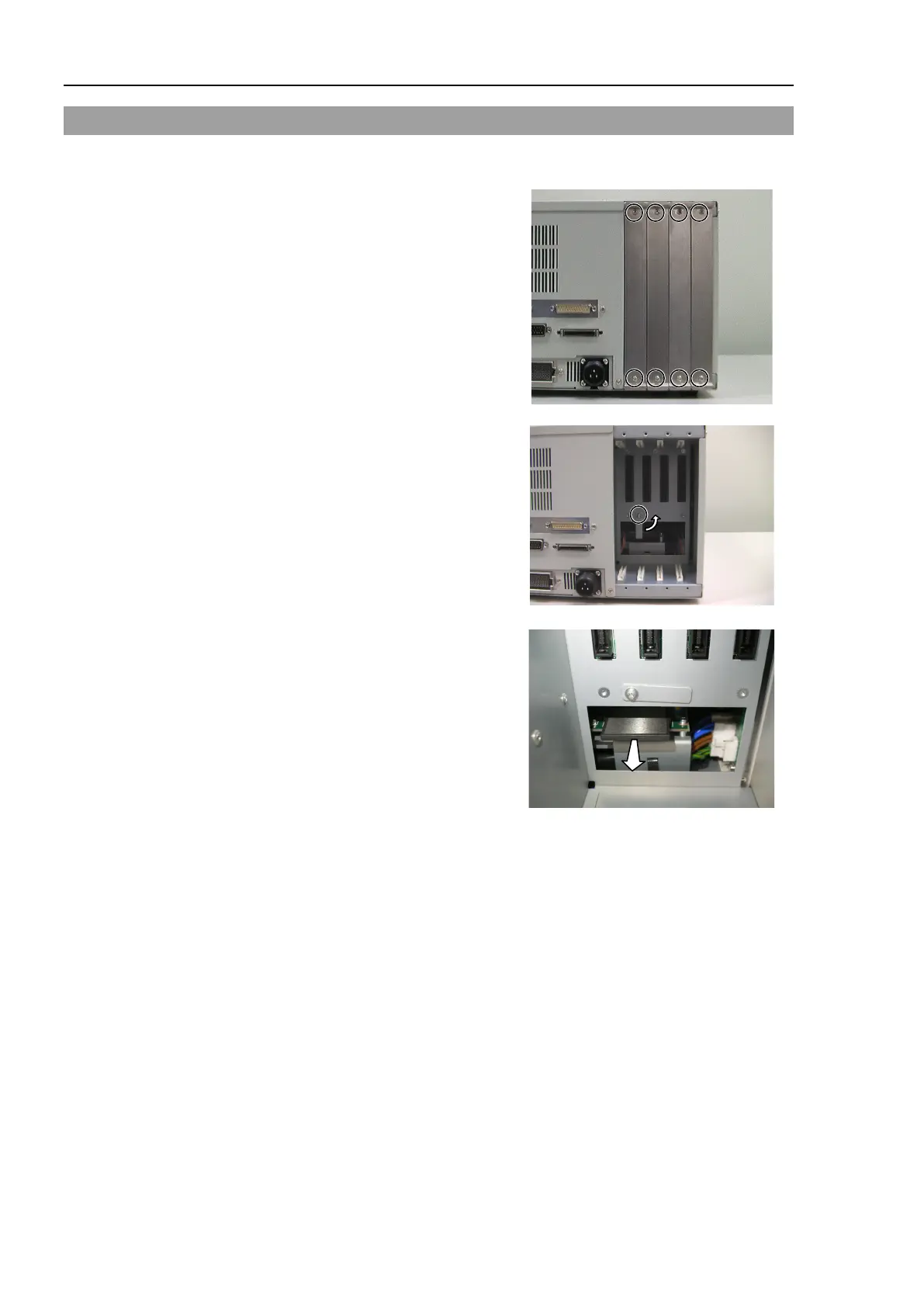

Removal
(1)
Turn OFF the Controller and unplug the power connector.
(2)
Remove
8 screws and boards inserted in
the
Special option slots.
(3)
Loose a screw for
the CF holder
assembly
and rotate the holder assembly
by 90 degrees.
(4)
Pull out
the CF in the direction shown in
the photo
.
