Maintenance 6. Maintenance Parts Replacement Procedures
RC620 Rev.8 187
CF
(Compact Flash)
Installation
(1)
Insert the new CF along the guide rail.
Make sure the CF is along the guide rail and insert it slowly.
(2)

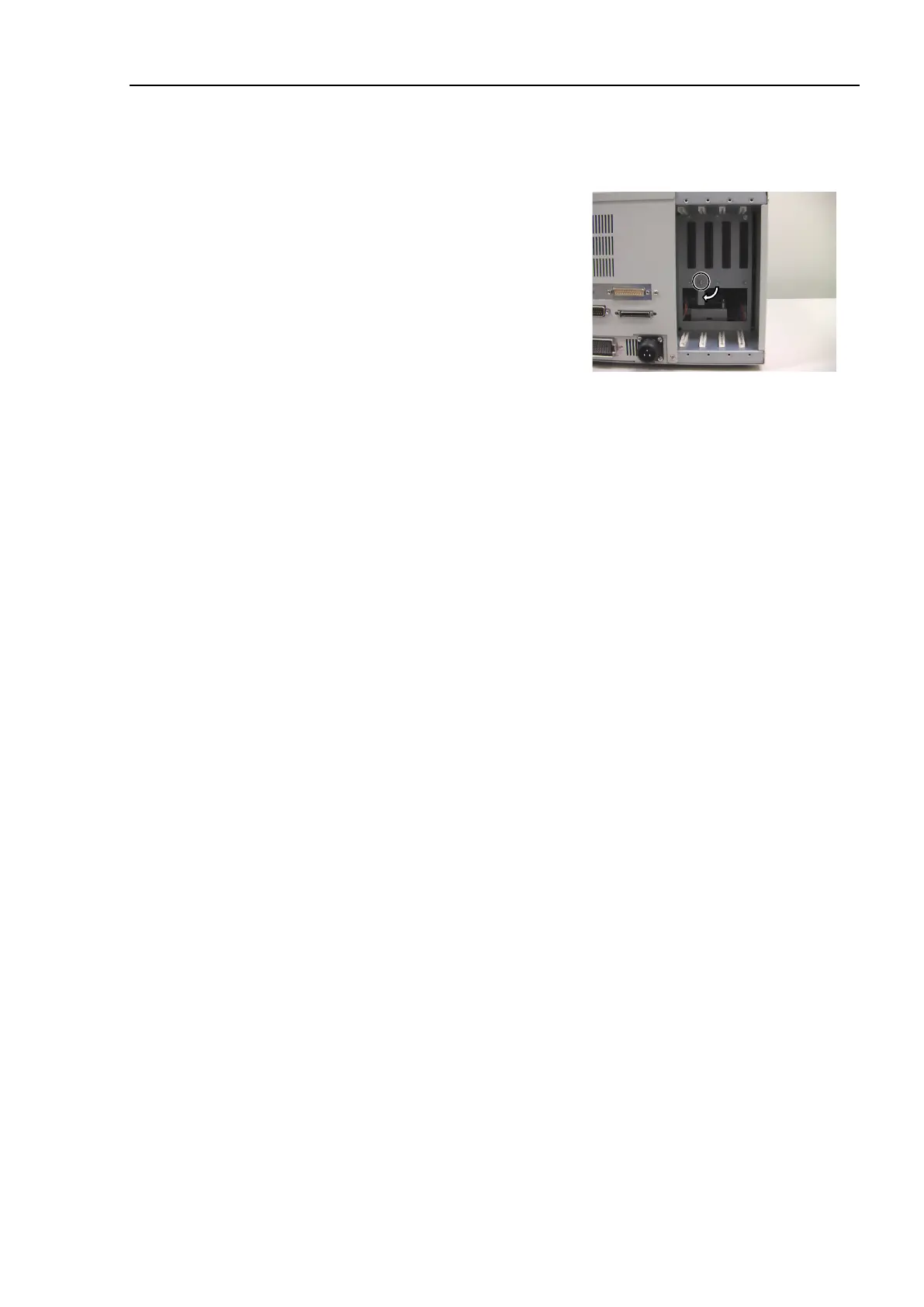

Secure the CF hold
er assembly using a
screw at the position shown
in the
.
(3)
Put back the
removed boards to the original lot and secure them using 8 screws.
(4)
Connect the power plug and power on the Controller. Check if
the controller can
startup normally.
